Ride-on SD98 - 108 Guards

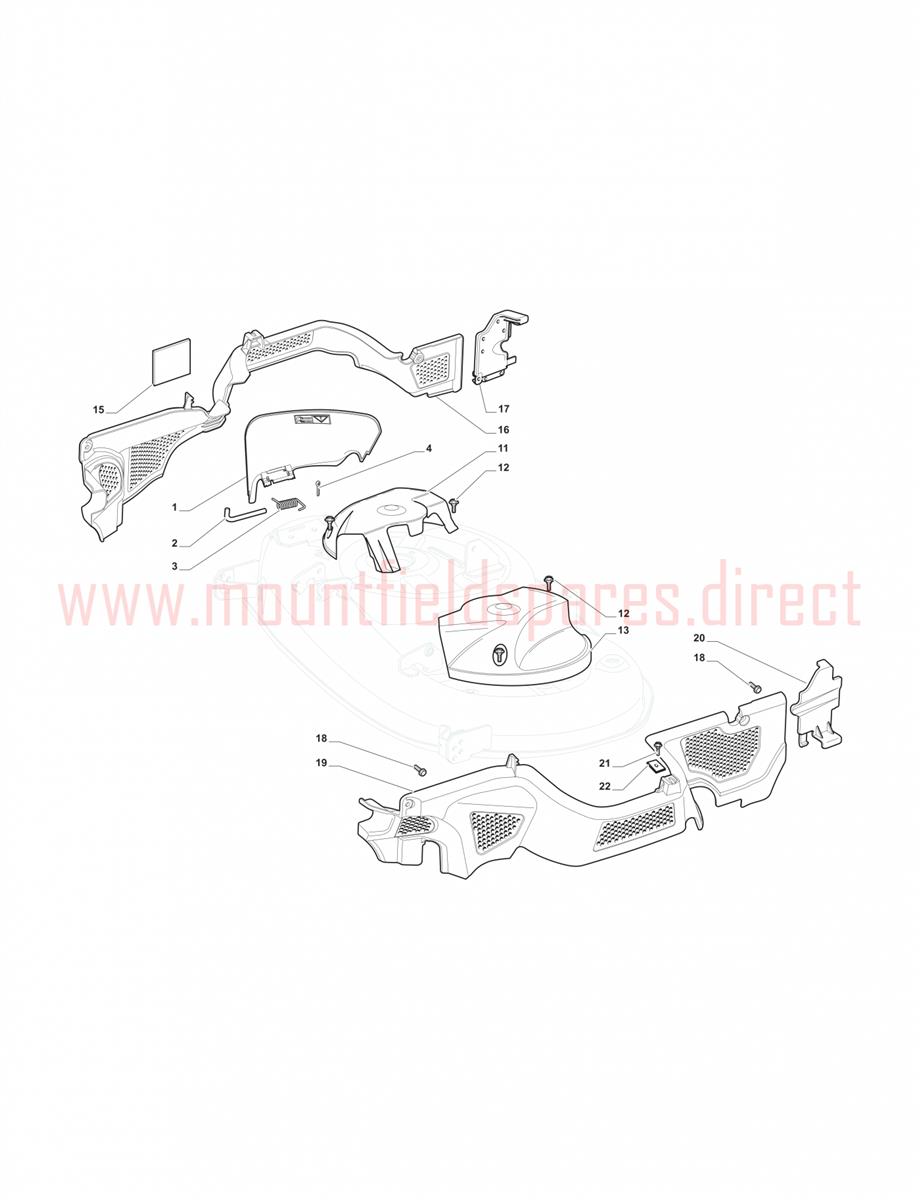

Ride-on SD98 - 108 Guards assembly details for Mountfield 1538M-SD (2T0530483) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325600077/3DEFLECTOR [BLACK]£18.82 Add to
002125510073/0FULCRUM PIN£8.04 Add to
003125430242/1SPRING£3.64 Add to
004112141418/0SPLIT PIN 3 x 20£1.76 Add to
011325600078/0RIGHT BELT GUARD [BLACK]£9.31 Add to
012125943010/0FLANGED SCREW£2.06 Add to
013325600079/0LEFT BELT GUARD [BLACK]£9.54 Add to
015325600084/0PROTECTION GUARD£2.18 Add to
016325060154/0RIGHT BELT PROTECTION COVER£34.35 Add to
017325600082/0RIGHT SEAT PROTECTION COVER£4.10 Add to
018125943011/0SCREW£9.82 Add to
019325060155/0LEFT BELT PROTECTION COVER£34.35 Add to
020325600083/0LEFT SEAT PROTECTION COVER£4.10 Add to
021127943051/0SCREW D=6.3 x 13£2.18 Add to
022112437506/0DOUBLE PLATE£2.87 Add to
