Ride-on 90 - 92 Engine - GGP TRE0801 (2)

Ride-on 90 - 92 Engine - GGP TRE0801 (2) assembly details for Mountfield 1636H (2T0430483) 2015 model

Parts list

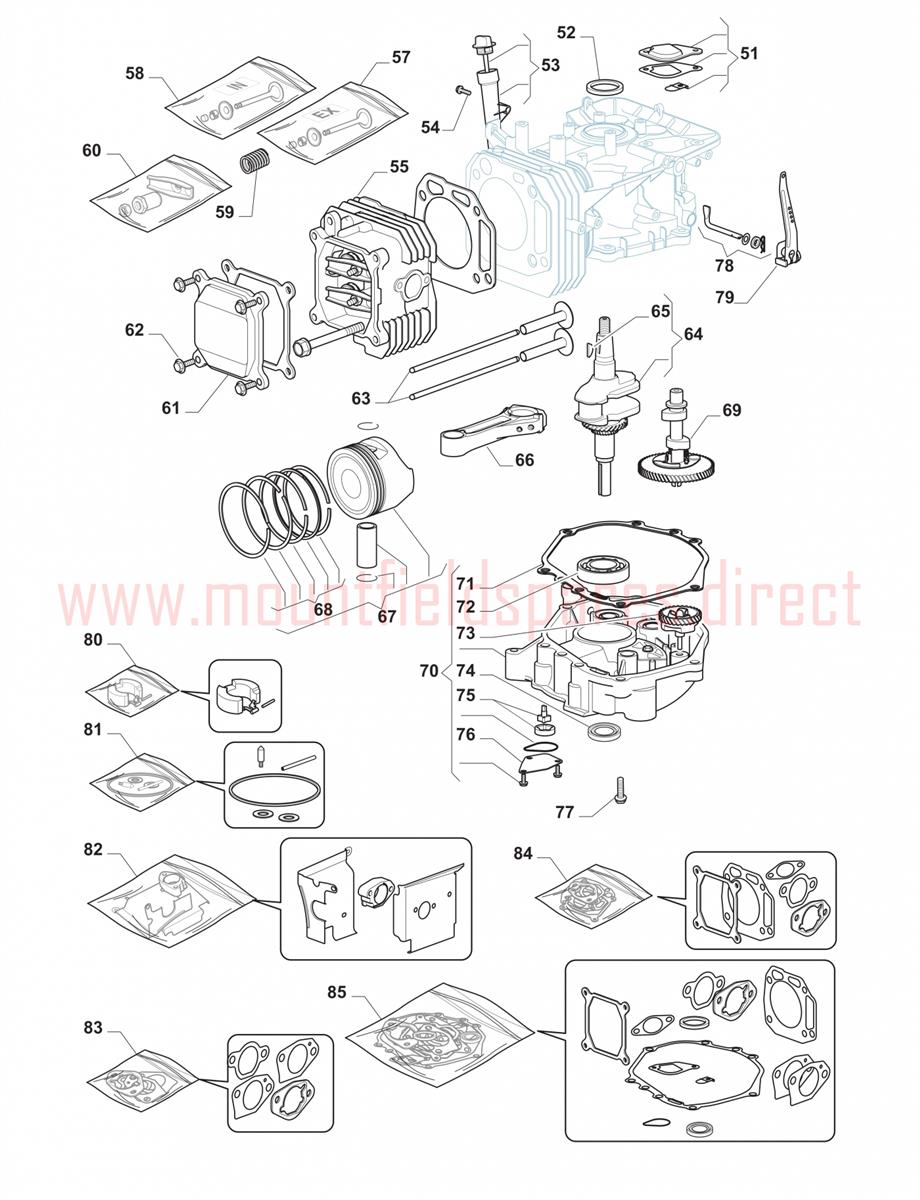

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
051118550446/0BREATHER CHAMBER KIT£21.82 Add to
052118550443/0OIL SEAL£14.34 Add to
053118550205/1OIL DIPSTICK ASSEMBLY£27.41 Add to
054112674701/0SCREW TE M6 x 35£2.06 Add to
055118550530/0CYLINDER HEAD ASSEMBLY£266.01 Add to
057118550532/0EXHAUST VALVE£38.44 Add to
058118550531/0INLET VALVE£42.53 Add to
059118550529/0VALVE SPRING£6.42 Add to
060118550533/0ROCKER ARM£9.85 Add to
061118551238/0ROCKER COVER AND GASKET KIT£33.60 Add to
062112791200/1SCREW TE M6 x 16£1.79 Add to
063118550242/1PUSH ROD£6.27 Add to
064118550232/0CRANKSHAFT£200.51 Add to
065118550288/0WOODRUFF KEY£6.55 Add to
066118550231/0CONNECTING ROD£64.40 Add to
067118550511/0PISTON£79.19 Add to
068118550510/0PISTON RING SET£35.71 Add to
069118550243/0CAMSHAFT ASSEMBLY£113.39 Add to
070118550445/0CRANKCASE COVER ASSEMBLY£197.87 Add to
071118550355/1CRANKCASE GASKET£17.02 Add to
072118550227/0BALL BEARING£18.13 Add to
073118550347/0SPEED GOVERNOR ASSEMBLY£20.04 Add to
075118550224/0OIL PUMP£20.63 Add to
076118550223/0OIL PUMP COVER£6.01 Add to
077112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
078118550226/0GOVERNOR ARM SHAFT£11.18 Add to
079118550330/1GOVERNOR LEVER£17.01 Add to
080118550440/0CARBURETTOR FLOAT KIT£10.77 Add to
081118550442/0CARBURETTOR GASKET SET£15.36 Add to
082118550220/0ENGINE GUARD ASSEMBLY£27.27 Add to
083118550217/1CARBURETTOR GASKET KIT£10.73 Add to
084118550535/0CYLINDER HEAD GASKET KIT£39.80 Add to
085118550534/0ENGINE GASKET KIT£86.13 Add to
