Ride-on 90 - 92 Brake And Gearbox Controls

Ride-on 90 - 92 Brake And Gearbox Controls assembly details for Mountfield 1636M (2T0330483) 2015 model

Parts list

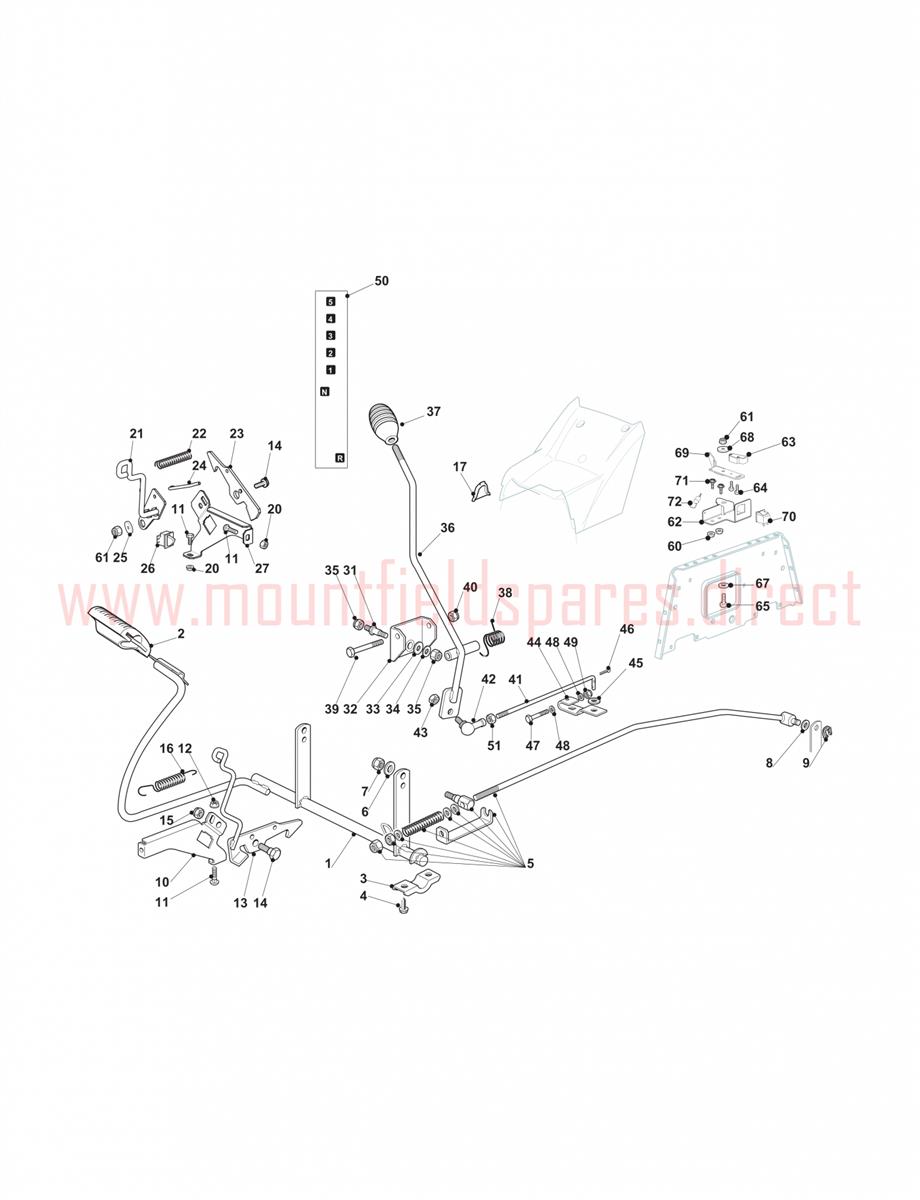

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382500027/1CLUTCH/BRAKE PEDAL ASSEMBLY NJ92 MEC£76.67 Add to
002125110269/0BRAKE PEDAL COVER£4.10 Add to
003327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
004112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
005382000540/1BRAKE CONTROL ROD NJ92 [PEERLESS]£46.61 Add to
006112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
007112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
008112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
009112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
010325785261/0SUPPORT PLATE£5.87 Add to
011112815200/0SCREW TTDQ M6X16£2.06 Add to
012112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
013382318289/0PARKING BRAKE LEVER£26.18 Add to
014122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
016125430213/0SPRING£2.06 Add to
017325207172/0COVER CLOSE CAP£4.52 Add to
018325547377/0BRAKE PEDAL LOCKING PLATE NJ102£37.39 Add to
019112815210/0SCREW M6 x 20£2.06 Add to
023325253007/1PARKING BRAKE HOOK£6.69 Add to
024125033119/0ROD£7.36 Add to
025122041980/0SPACER ROLLER BUSH£2.06 Add to
026119410622/1MICRO SWITCH N.O.£7.10 Add to
031125510035/0FULCRUM PIN£4.10 Add to
032382774247/0GEAR CONTROL CLAMP£9.14 Add to
033322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
034112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
035112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
036382318215/0GEAR CONTROL LEVER£31.63 Add to
037125394510/0CONTROL KNOB [BLACK]£4.35 Add to
038125430258/0SPRING£8.32 Add to
039112692050/0HEX-HEAD SCREW£1.91 Add to
041125033012/0GEAR CONNECTING ROD£9.85 Add to
042122746610/0ANGULAR JOINT NS13 M8£17.86 Add to
044325318128/1TRANSAXLE CHANGE LEVER£5.05 Add to
045112521340/0WASHER M7 7.4 x 14 x 1.6£1.79 Add to
046112141418/0SPLIT PIN 3 x 20£1.76 Add to
047112735520/0"HEX-HEAD SCREW 1/4"" x 5/8"""£2.06 Add to
048112540040/0EXTERNAL TOOTHED WASHER M6£1.79 Add to
050114361447/0CHANGE GEAR DECAL£5.12 Add to
051112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
060112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
062325785467/0MICRO SUPPORT BRACKET N£10.66 Add to
063325060034/1REVERSE SWITCH CAM£2.47 Add to
064112735404/0FLANGED HEX-HEAD SCREW D5 x 16 WZ£2.06 Add to
065122529662/0FULCRUM PIN£2.87 Add to
067112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
069325785469/0CAM SUPPORT£9.86 Add to
070119410614/0MICRO SWITCH N.C.£6.55 Add to
071112800815/0SCREW TE FL M8 x 16£2.06 Add to
