Ride-on 102-122 Grasscatcher - Manual Lifting

Ride-on 102-122 Grasscatcher - Manual Lifting assembly details for Mountfield 2248H (2T1310283) 2015 model

Parts list

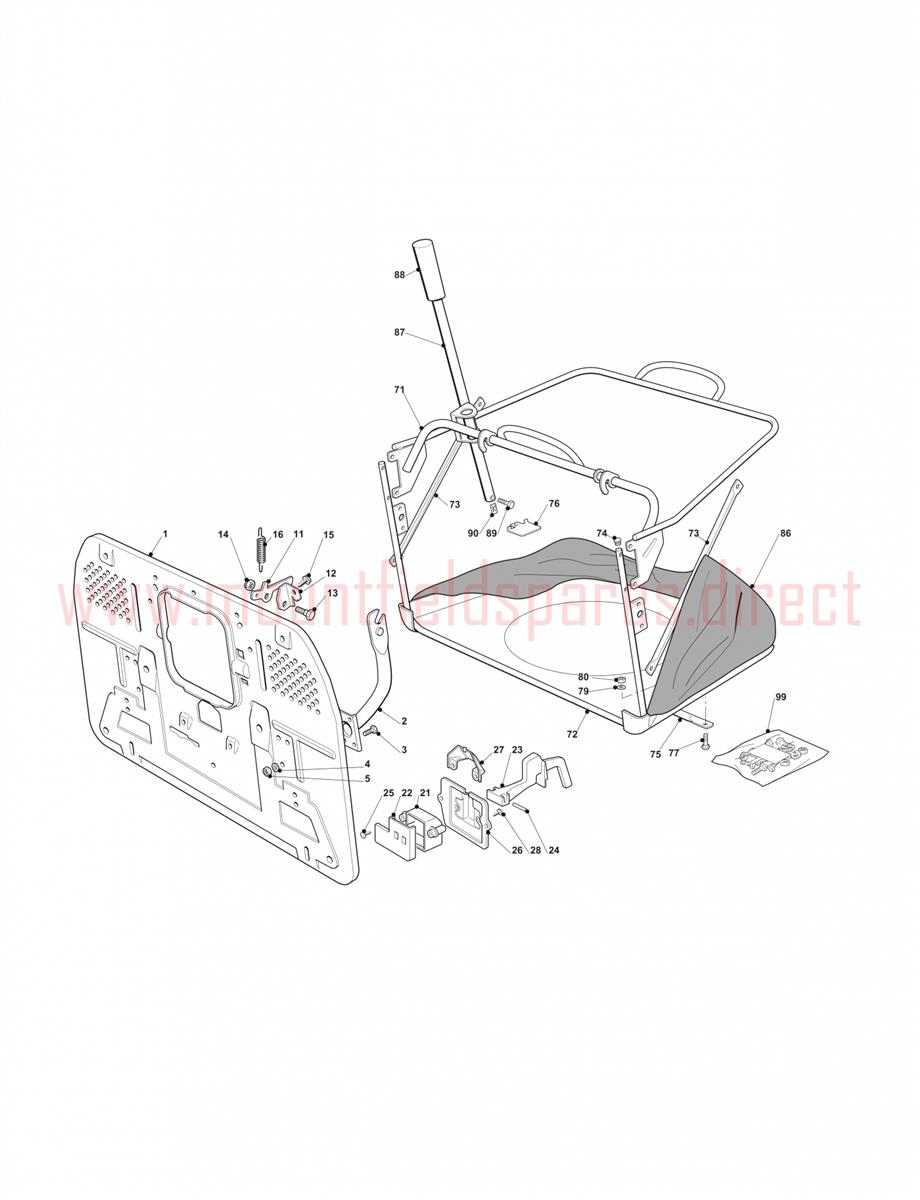

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382547051/0PLATE£145.22 Add to
002182774225/1GRASSCATCHER SUPPORT CLAMP£32.29 Add to
003112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
004112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011325774417/0HOOKING LEVER£7.04 Add to
012325755031/1CLAMP BRACKET (OBSOLETE) (OBSOLETE)N/A
013125510080/1CLAMP PIN£2.14 Add to
014112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
015112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
016127430579/0CLUTCH SPRING£3.24 Add to
021125600041/0MICRO PROTECTION COVER£2.32 Add to
022125600042/0MICRO PROTECTION COVER£3.41 Add to
023125318124/0MICRO CONTROL LEVER£2.32 Add to
024112400030/0PIN D=3 L=30£1.91 Add to
025112728510/0SELF-TAP SCREW 4.8 x 13£3.15 Add to
026325785272/0MICRO SWITCH COVER£5.50 Add to
027125600048/0MICRO SWITCH COVER£2.06 Add to
028112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
071382800123/1UPPER GRASSCATCHER FRAME£203.53 Add to
072382800089/1FRONT GRASSCATCHER FRAME£80.68 Add to
073325650117/0GRASSCATCHER REINFORCEMENT BAR£7.57 Add to
074118566111/0HANDLE CAP£4.52 Add to
075382650043/0LOWER REINFORCEMENT BAR£21.14 Add to
076325547131/0STOPPING PLATE£4.10 Add to
077112815210/0SCREW M6 x 20£2.06 Add to
079112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
080112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
086182105948/0GRASSCATCHER BAG 102-122cm£147.66 Add to
087125869029/1TIPPING LEVER£28.43 Add to
088125394508/0KNOB£4.52 Add to
089112788800/0HEX-HEAD SCREW M5 x 10£1.79 Add to
090112157000/0NUT M5£2.06 Add to
099382180110/0GRASSCATCHER SCREW OUTFIT£77.95 Add to
