Ride-on 66 Engine - GGP WBE0704 (1)

Ride-on 66 Engine - GGP WBE0704 (1) assembly details for Mountfield 727H (2T0105483) 2015 model

Parts list

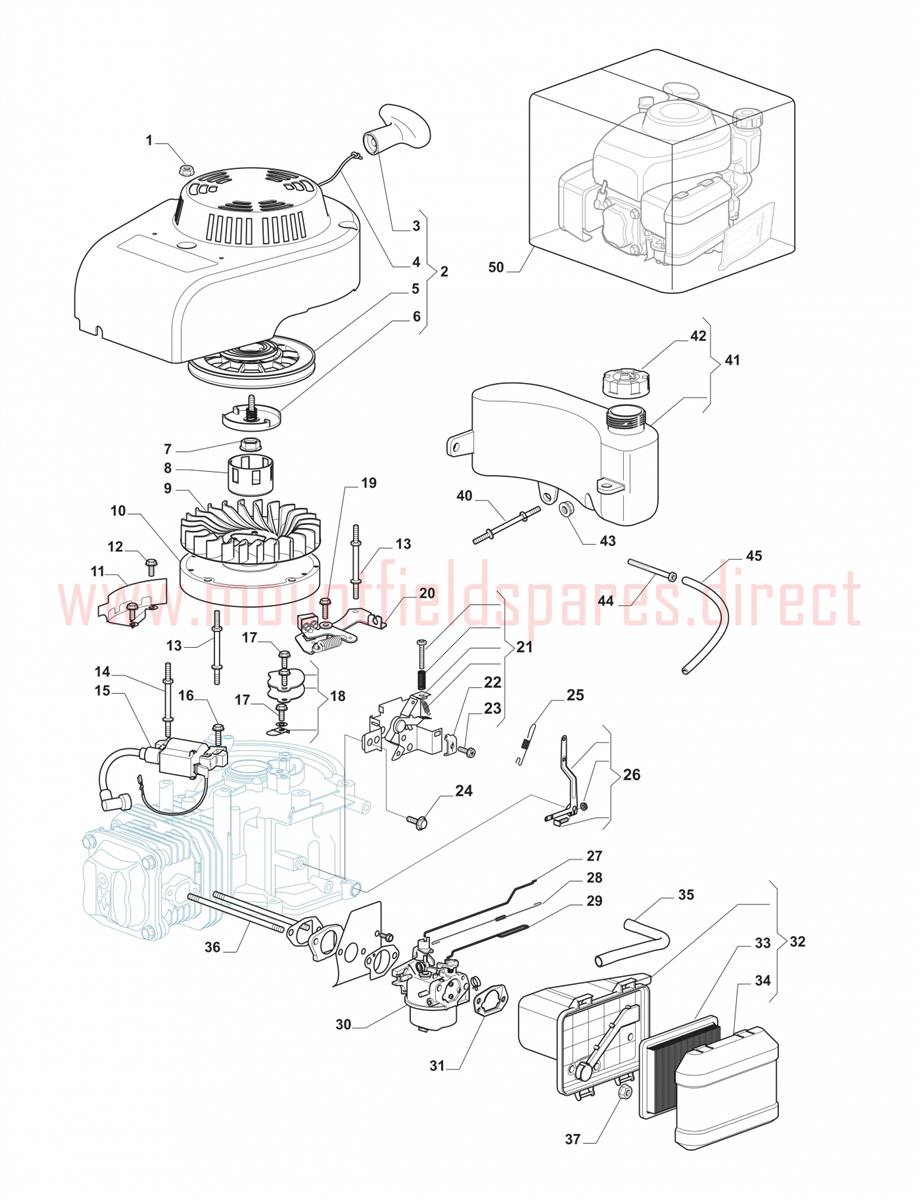

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
002118550277/1RECOIL ASSEMBLY 196cc OHV [WBE0704]£98.40 Add to
003118550274/0RECOIL HANDLE£15.81 Add to
004118550779/0RECOIL ROPE£7.63 Add to
005118550778/0RECOIL PULLEY & SPRING£27.27 Add to
006118550275/1STARTER PAWL KIT£12.68 Add to
007118550336/0NUT£6.42 Add to
008118550335/0STARTER CUP£22.61 Add to
009118550254/0FLYWHEEL FAN£21.26 Add to
010118550253/0FLYWHEEL£90.98 Add to
011118550776/0SHIELD,TANK SIDE£7.51 Add to
012112791213/1SCREW M6 X 18£1.74 Add to
013118550302/0STUD BOLT (OBSOLETE)N/A
014118550301/0STUD BOLT£7.10 Add to
015118550255/1IGNITION COIL£54.79 Add to
016112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
017112790500/0HEX-HEAD SCREW M6 x 10£2.06 Add to
018118550305/0Gasket Assy (OBSOLETE)N/A
020118550376/0FLYWHEEL BRAKE£41.16 Add to
021118550259/0THROTTLE CONTROL ASSEMBLY£31.42 Add to
022118550337/0CASING CLAMP£12.37 Add to
023118550338/0SCREW£7.36 Add to
025118550539/0GOVERNOR SPRING£2.06 Add to
026118550267/0GOVERNOR ARM ASSEMBLY£12.95 Add to
027118550424/0GOVERNOR LINK ROD£5.63 Add to
028118550263/0SPRING£3.15 Add to
029118550265/0CHOKE CONTROL ROD£3.69 Add to
030118550537/0CARBURETTOR£68.42 Add to
031118550738/0CARBURETTOR GASKET£6.69 Add to
032118550737/0AIR FILTER ASSEMBLY£24.95 Add to
033118550257/0PAPER AIR FILTER£12.00 Add to
034118550739/0AIR FILTER COVER£7.92 Add to
035118550225/1BREATHER FUEL PIPE£9.28 Add to
036118550299/0STUD BOLT£6.95 Add to
040118550315/0STUD BOLT£8.04 Add to
041118550316/0FUEL TANK£68.62 Add to
042118550339/1FUEL TANK CAP£15.81 Add to
044118550314/0FUEL FILTER£4.78 Add to
045118550428/0FUEL PIPE£7.63 Add to
050118550318/0ENGINE ASSEMBLY£315.28 Add to
