Ride-on 102-122 Body

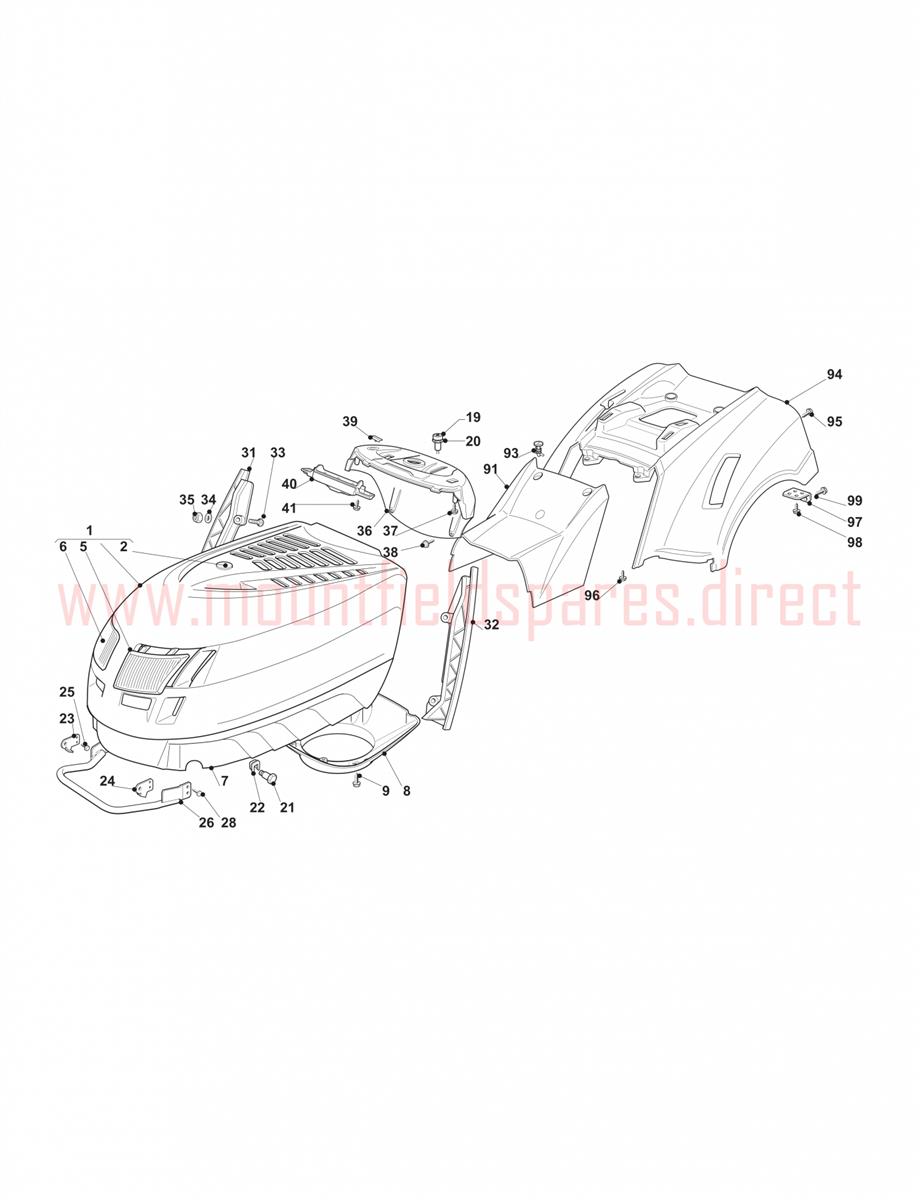

Ride-on 102-122 Body assembly details for Mountfield T40H (2T1730436) 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076841/3ENGINE HOOD [RED] FROM 01/09/2004£102.06 Add to
002325547025/1COVER [RED]£2.18 Add to
005125410861/0LEFT HEADLIGHT£10.42 Add to
006125410860/0RIGHT HEADLIGHT£10.42 Add to
007125076808/0LOWER ENGINE HOOD£45.64 Add to
008325108028/0LONG AIR CONVEYOR£8.14 Add to
009112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
019325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
020325256250/0THREADED RING NUT£2.87 Add to
021125510023/1PIN£3.69 Add to
022112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
023325547089/1RIGHT PLATE£4.52 Add to
024325547091/1LEFT PLATE£4.52 Add to
025112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
026382869033/0FRONT BUMPER BAR£38.44 Add to
028112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
032325599013/0LEFT DASHBOARD SUPPORT£7.23 Add to
033112815221/0SCREW M6 x 35£1.79 Add to
034112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
036325120272/0DASHBOARD [BLACK]£37.40 Add to
037112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
038112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
039125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
040325600074/0PC BOARD COVER£9.07 Add to
091325110363/0CENTRAL COVER [RED]£38.44 Add to
093125580020/2SPRING TENSIONED SCREW£7.23 Add to
094325110322/0WHEELS COVER [RED]£101.13 Add to
097325755041/0ANGLE BRACKET£2.06 Add to
099112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
