Ride-on 102-122 Seat & Steering Wheel

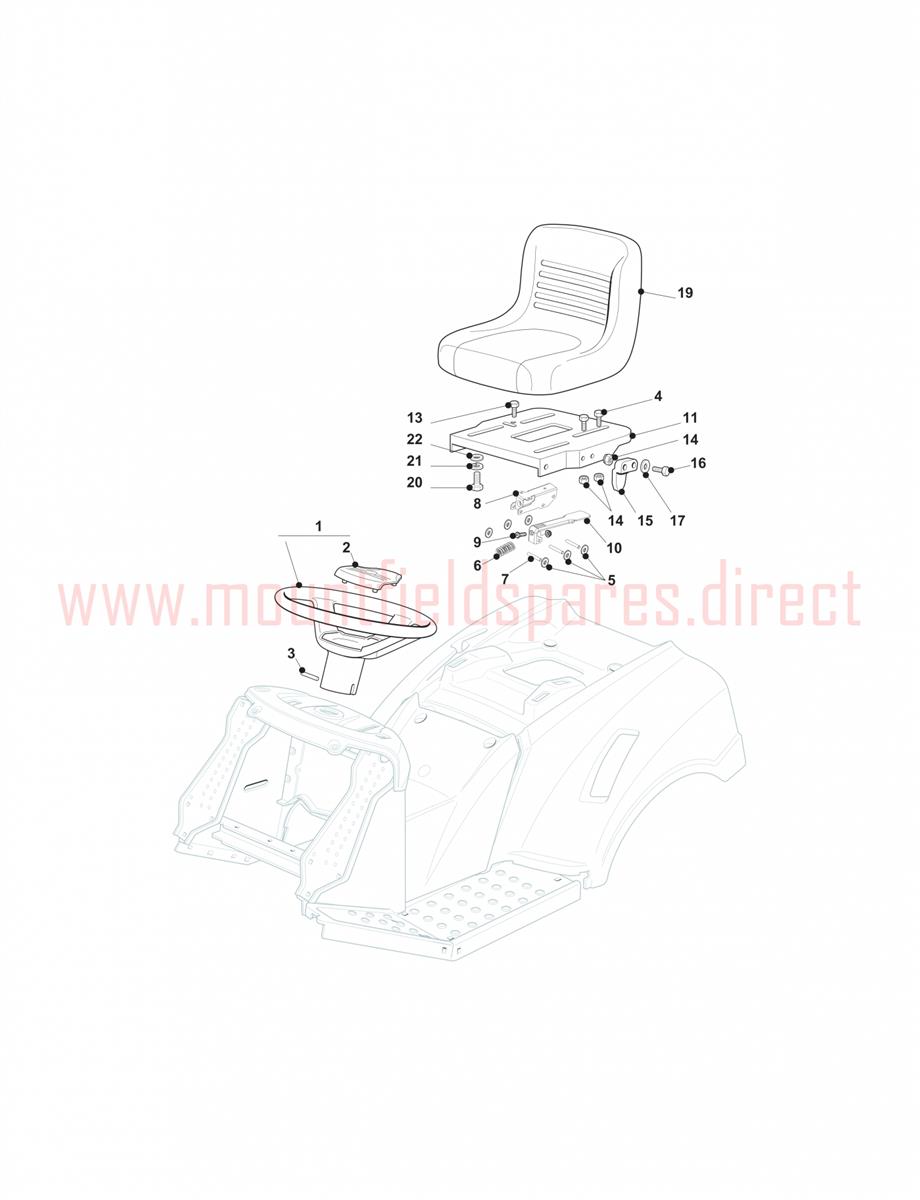

Ride-on 102-122 Seat & Steering Wheel assembly details for Mountfield T40H (2T1730436) 2015 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	125961216/0	STEERING WHEEL [BLACK]	£57.52	Add to
002	325580501/0	CENTRAL STEERING WHEEL CAP	£6.69	Add to
003	112620299/0	SPIROL FLEXIBLE PIN 6 x 45	£1.91	Add to
004	112789000/0	SCREW TE M5 x 12	£2.06	Add to
005	112604896/0	STARLOCK WASHER D=6	£2.06	Add to
006	125430285/0	SPRING	£7.23	Add to
007	122517866/0	PIN	£2.06	Add to
008	325774575/0	FULCRUM CLAMP	£9.41	Add to
009	112735661/0	SCREW TCB TORX M6 x 10	£2.06	Add to
010	325318327/0	SPRING LEVER	£10.09	Add to
011	325547033/2	SEAT PLATE (ISO)	£41.16	Add to
015	327063021/1	MICRO SEAT OPERATION CAM	£2.74	Add to
016	112789100/0	HEX-HEAD SCREW M5 x 30	£2.06	Add to
017	112523020/0	WASHER M5 5.5 x 15 x 1.6	£2.06	Add to
018	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
019	125722471/0	SEAT MOUNTFIELD	£197.87	Add to
020	112793102/0	SCREW TE M8x20 UNI 5739 ACC.8.8	£2.06	Add to
021	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
022	112523060/0	WASHER M8 8.4 X 24 X 2	£2.06	Add to
