Cutting Plate (2)

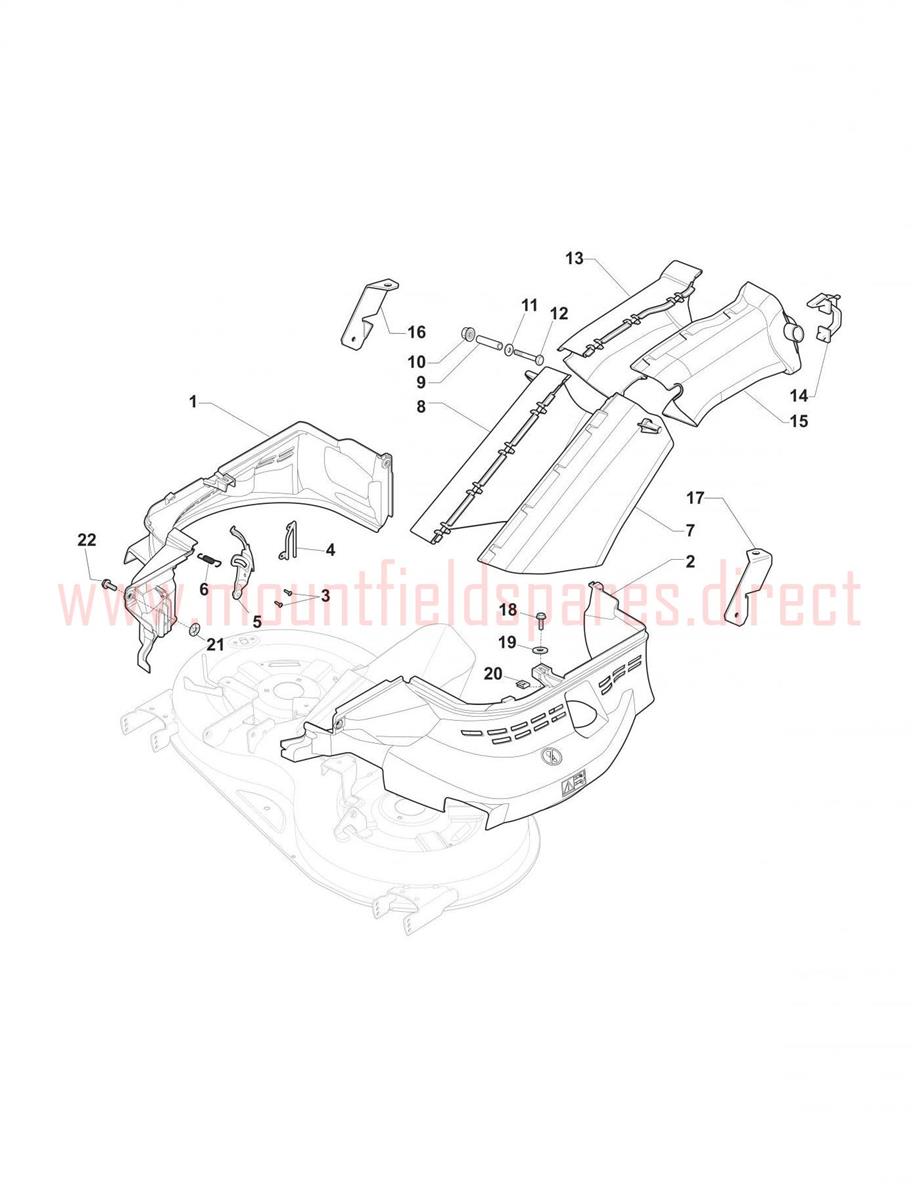

Cutting Plate (2) assembly details for Mountfield 1538H (2T2620483) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
052182004362/0RIGHT WINGED BLADE 98cm£28.90 Add to
052182004364/0RIGHT MULCHING BLADE 98cm£23.45 Add to
053122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
054112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
055112735695/1HEX-HEAD SCREW 3/8" x 1 1/2" L/H THREAD£4.23 Add to
056112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
057182004363/0LEFT WINGED BLADE 98cm£28.90 Add to
057182004346/0MULCHING BLADE 98cm£23.45 Add to
058325140111/0REAR DEFLECTOR PLATE£8.40 Add to
059112791213/1SCREW M6 X 18£1.74 Add to
060112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
061112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
062112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
063382564118/0CUTTER DECK CASING MP98 [BLACK]£535.63 Add to
