Belt Protection

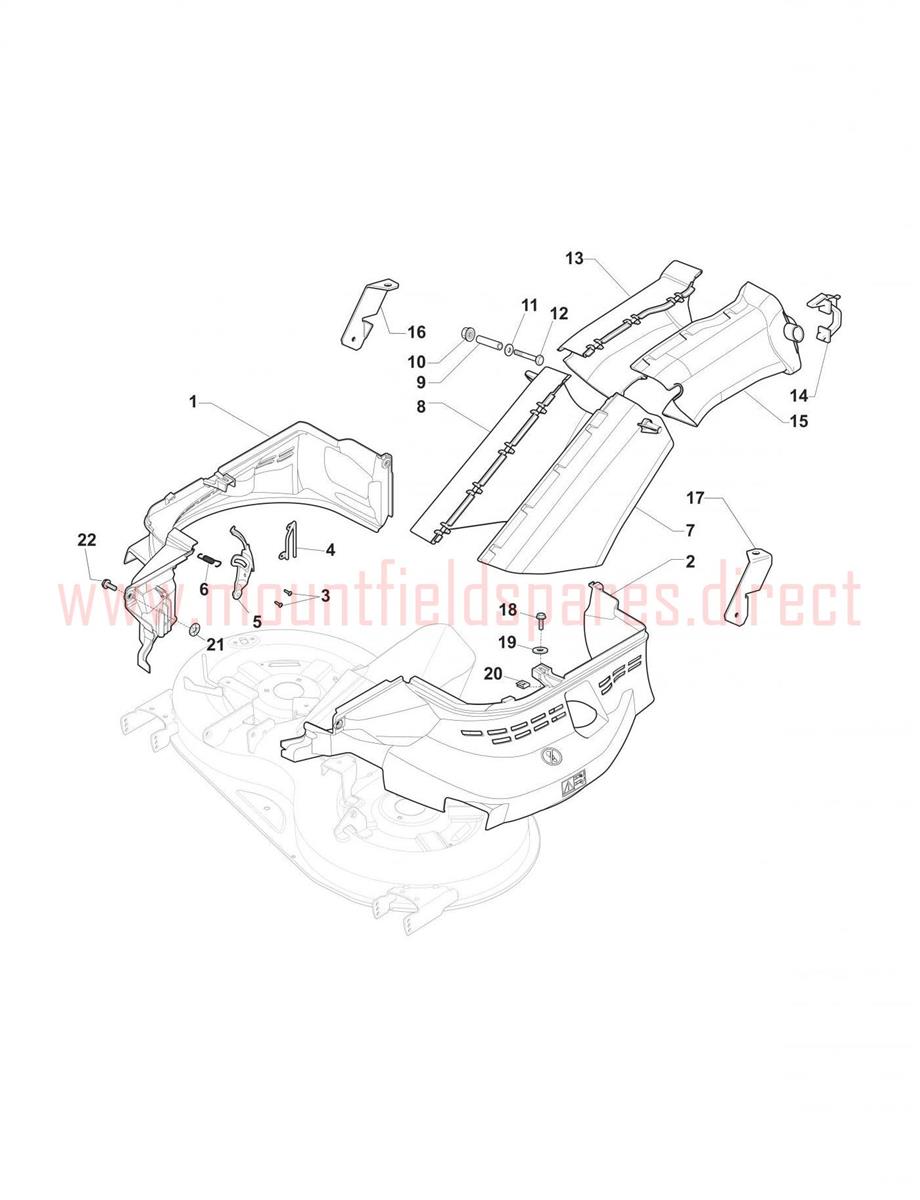

Belt Protection assembly details for Mountfield 1538M (2T2520483) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325060174/0R/H BELT PROTECTIVE GUARD [BLACK]£46.61 Add to
002325060175/0L/H BELT PROTECTIVE GUARD [BLACK]£46.61 Add to
003112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
004382270309/0BELT GUIDE£4.23 Add to
005325547346/0PROTECTIVE BRACKET£6.42 Add to
006125430213/0SPRING£2.06 Add to
007325108065/0BOTTOM LEFT CHUTE [BLACK]£18.82 Add to
008325108064/0BOTTOM RIGHT CHUTE [BLACK]£18.82 Add to
009125160109/0EXIT CONVEYOR SPACER MP84£2.06 Add to
010112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
011112521340/0WASHER M7 7.4 x 14 x 1.6£1.79 Add to
012112792425/0HEX-HEAD SCREW M6 X 55£2.06 Add to
013325108056/0LEFT TOP CHUTE [BLACK]£16.36 Add to
014325774499/0DISCHARGE CHUTE RELEASE CLAMP£2.87 Add to
015325108057/0RIGHT TOP CHUTE [BLACK]£16.22 Add to
016325774527/0RIGHT CLAMP BRACKET£3.69 Add to
017325774529/0LEFT CLAMP BRACKET£3.89 Add to
018112789021/0HEX-HEAD SCREW M5 X 20 UNI 5739£1.81 Add to
019112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
020112437503/0LOCK PLATE£2.06 Add to
021112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
022125943011/0SCREW£9.82 Add to
