Brake And Gearbox Controls

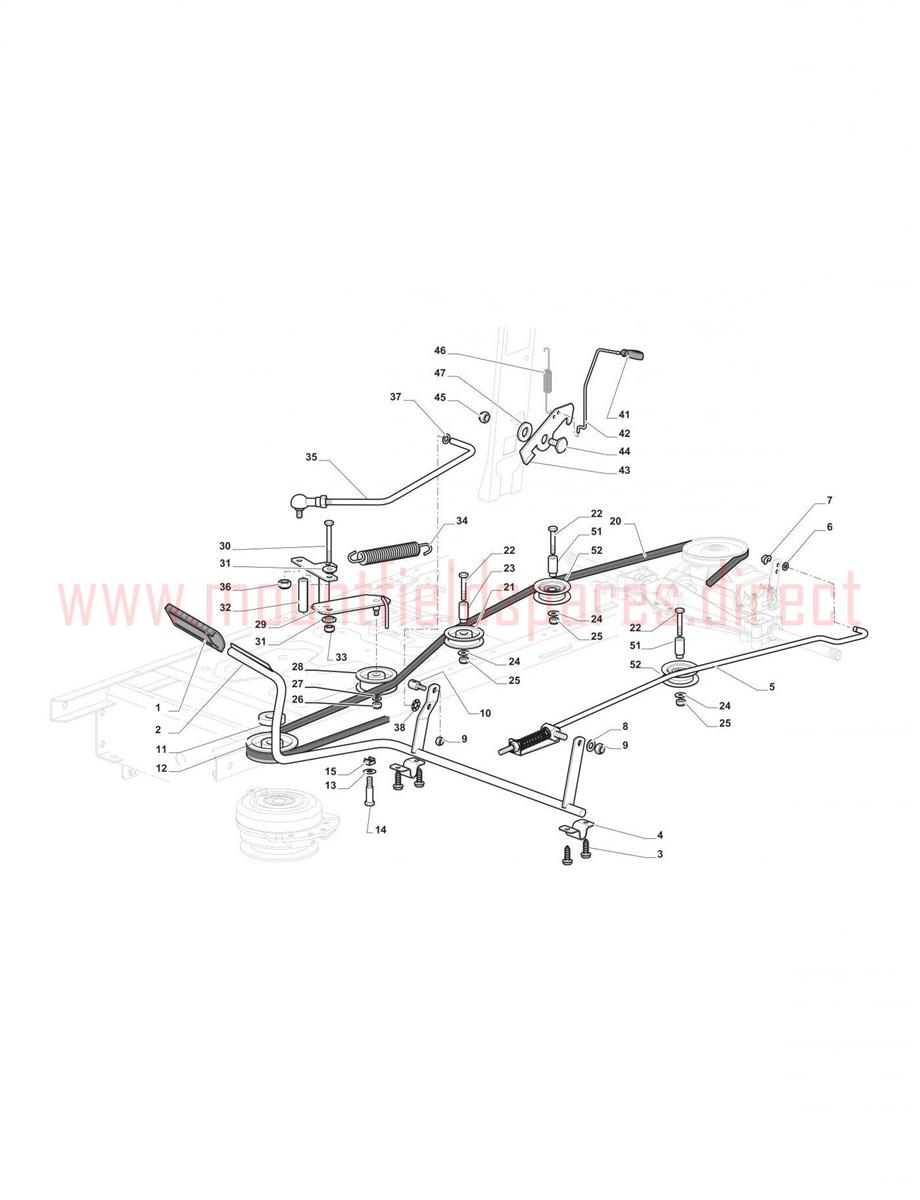

Brake And Gearbox Controls assembly details for Mountfield 1538M (2T2520483) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325110391/0BRAKE PEDAL COVER SD 98£7.10 Add to
002382500047/1BRAKE PEDAL ASSEMBLY£51.48 Add to
003112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
004325547231/0LIFTING DECK AXLE PLATE£5.05 Add to
005382000568/0BRAKE ROD ASSEMBLY£21.82 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
008325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010125510116/0PARKING BRAKE PIN£4.10 Add to
011125160059/0PULLEY SPACER L=25.8£6.69 Add to
012125601567/0MOTOR PULLEY£31.63 Add to
013112524010/0WASHER M8 8.4 x 24 x 4£1.91 Add to
014125580030/0BELT GUIDE PIN£4.91 Add to
015112360425/0SQUARE NUT M8£2.18 Add to
020135062020/1TRANSMISSION BELT 4L 980£46.61 Add to
021325601599/0PULLEY (STEEL) (BEARING HOLE D 15)£19.62 Add to
022112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
023125160083/0SPACER (FROM 1ST SEPT 2013 TO 31ST AUG 2019)£3.09 Add to
024112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
028125601554/0PULLEY£26.18 Add to
029382318283/0TENSION ARM£19.61 Add to
030112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
031125038002/1BUSH£2.06 Add to
032125160027/0SPACER£2.87 Add to
034125430262/0SPRING£6.14 Add to
035382820016/1TIE ROD ASSEMBLY£16.94 Add to
036112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
037124487997/0SPRING CLIP D=1.8£2.06 Add to
038112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
041125394509/1BRAKE KNOB£3.79 Add to
042125033113/0PARKING BRAKE ROD£3.83 Add to
043325253011/1PARKING BRAKE HOOK£4.10 Add to
044122524970/2SEAT FULCRUM PIN FROM S/N 88152£2.18 Add to
046125430213/0SPRING£2.06 Add to
051125160068/0PULLEY SPACER (TO 31ST AUG 2019)£5.21 Add to
052125601592/0PULLEY (TO 31ST DEC 2019)£33.86 Add to
