Engine - GGP TRE0801 (1)

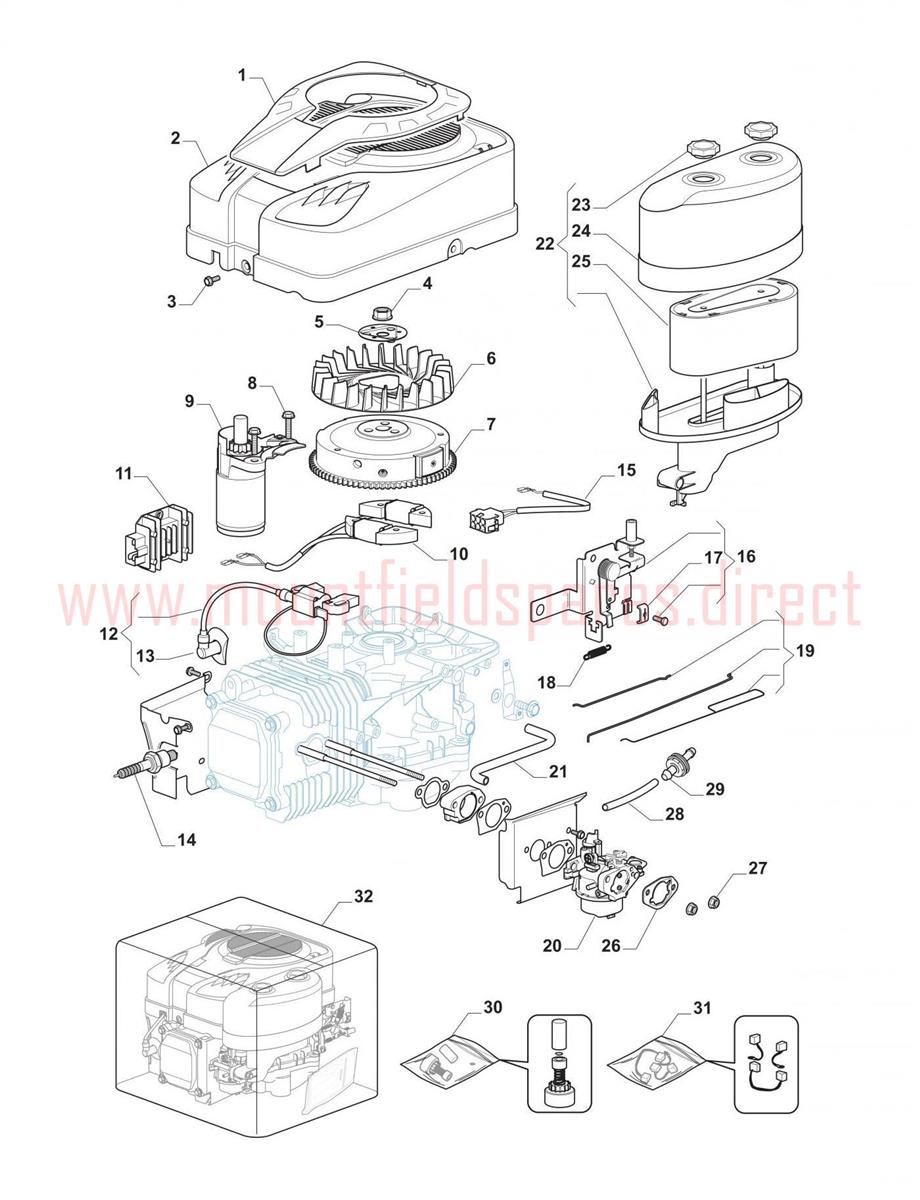

Engine - GGP TRE0801 (1) assembly details for Mountfield 1543H-SD (2T1210483) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325055000/0ENGINE COVER [RED] TRE0801£15.06 Add to
001325055001/0ENGINE COVER [YELLOW] TRE0801£13.77 Add to
001325055002/0ENGINE COVER [BLACK] TRE0801£13.77 Add to
002118550516/0ENGINE BASE COVER£31.26 Add to
003112791213/1SCREW M6 X 18£1.74 Add to
004118550237/0NUT£3.69 Add to
005118550236/0STARTER CUP£6.69 Add to
006118550235/0FLYWHEEL FAN£26.18 Add to
007118550234/1FLYWHEEL£226.22 Add to
008119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
009118550214/0STARTER MOTOR (EARLY VERSION) No returns on this i£162.96 Add to
010118550210/1CHARGE COIL ASSEMBLY (EARLY VERSION)£60.24 Add to
011118550208/1RECTIFIER (EARLY VERSION)£77.95 Add to
012118550209/1IGNITION COIL (EARLY VERSION)£43.89 Add to
013118550448/0SPARK PLUG CAP£17.18 Add to
0149400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
015118550207/0OUTPUT WIRE-ALTERNATOR£3.83 Add to
016118550331/1REMOTE CONTROL ASSEMBLY£42.53 Add to
017118550212/0Casing Clamp (OBSOLETE)N/A
018118550213/0SPRING£2.47 Add to
019118550239/1GOVERNOR ROD£14.18 Add to
020118550763/1CARBURETTOR£84.77 Add to
021118550225/1BREATHER FUEL PIPE£9.28 Add to
022118550202/2AIR FILTER ASSEMBLY£43.77 Add to
023118550201/0KNOB£2.66 Add to
024118550200/0AIR FILTER COVER£17.04 Add to
025118550199/0AIR FILTER£25.44 Add to
026118550762/0CARBURETTOR GASKET£6.88 Add to
027112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
028118550432/0FUEL PIPE£3.15 Add to
029118550427/0FUEL FILTER£5.87 Add to
030118550365/1STARTER DRIVE KIT£52.06 Add to
031118550332/1BRUSH HOLD£35.71 Add to
032118550526/0ENGINE ASSEMBLY 452cc TRE0801£771.72 Add to
