Body

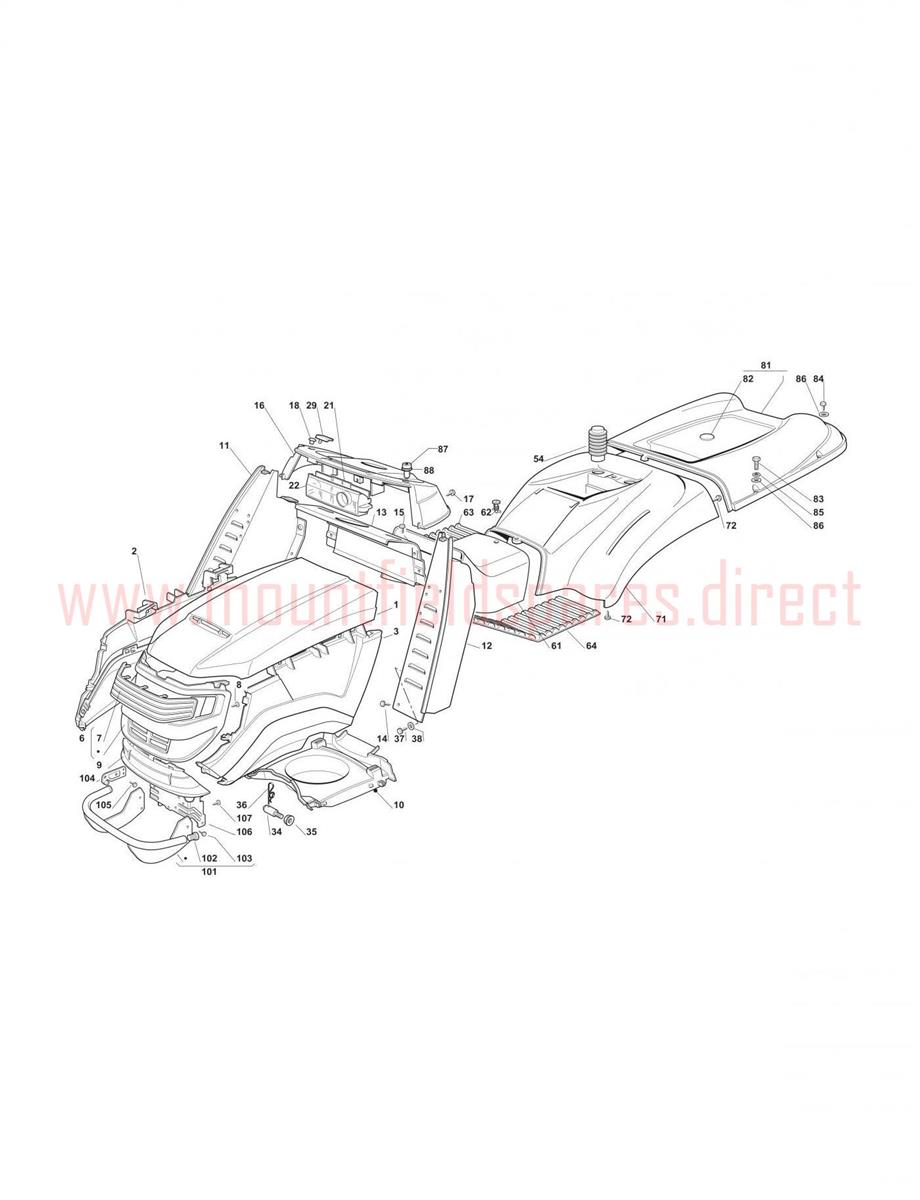

Body assembly details for Mountfield 2040H Twin (2T0951283) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076871/0UPPER ENGINE HOOD [RED]£110.66 Add to
002382394620/0RIGHT SIDE BONNET£75.23 Add to
003382394621/0LEFT SIDE BONNET£75.23 Add to
006382394618/0FRONT HOOD£103.58 Add to
007325410878/0HEADLIGHTS GRILL£19.61 Add to
008112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
009325076877/1LOWER FRONT HOOD£30.33 Add to
010325108031/0INTAKE CONVEYOR£57.52 Add to
011382785022/8RIGHT DASHBOARD SUPPORT£31.63 Add to
011382785022/9RIGHT DASHBOARD SUPPORT£38.60 Add to
012382785021/7LEFT DASHBOARD SUPPORT£31.63 Add to
012382785021/8LEFT DASHBOARD SUPPORT£38.60 Add to
013382785137/0CENTRAL DASHBOARD SUPPORT£16.16 Add to
014112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
016325120278/0DASHBOARD [BLACK]£41.41 Add to
017112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
018125120200/0CAP (OBSOLETE)£2.54 Add to
021125600009/0PROTECTIVE COVER£3.00 Add to
022125600051/0PC BOARD PROTECTION COVER£10.49 Add to
029125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
034125510169/1BONNET PIN (ROUND VERSION)£3.15 Add to
035112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
036124487998/0R CLIP D=2£2.06 Add to
037112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
038112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
054325122000/2PROTECTION CAP£2.06 Add to
061325110239/1CENTRAL COVER [RED] HYDRO£32.99 Add to
062125580020/2SPRING TENSIONED SCREW£7.23 Add to
063125110270/0RIGHT FOOTBOARD COVER£26.93 Add to
064125110260/2LEFT FOOTBOARD COVER£24.95 Add to
071325109700/1WHEELS COVER [RED]£124.29 Add to
072112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
081382110200/1GRASSCATCHER TOP [RED]£152.39 Add to
082325547025/1COVER [RED]£2.18 Add to
083112674701/0SCREW TE M6 x 35£2.06 Add to
084112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
085112582101/0WASHER M6£2.06 Add to
086112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
087325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
088325256250/0THREADED RING NUT£2.87 Add to
101382869025/0FRONT BUMPER BAR£117.75 Add to
102118737860/0END CAP D=40£2.06 Add to
103112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
104325547159/1PLATE£5.05 Add to
105112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
106325774301/2HOOD SUPPORT£18.13 Add to
