Cutting Plate

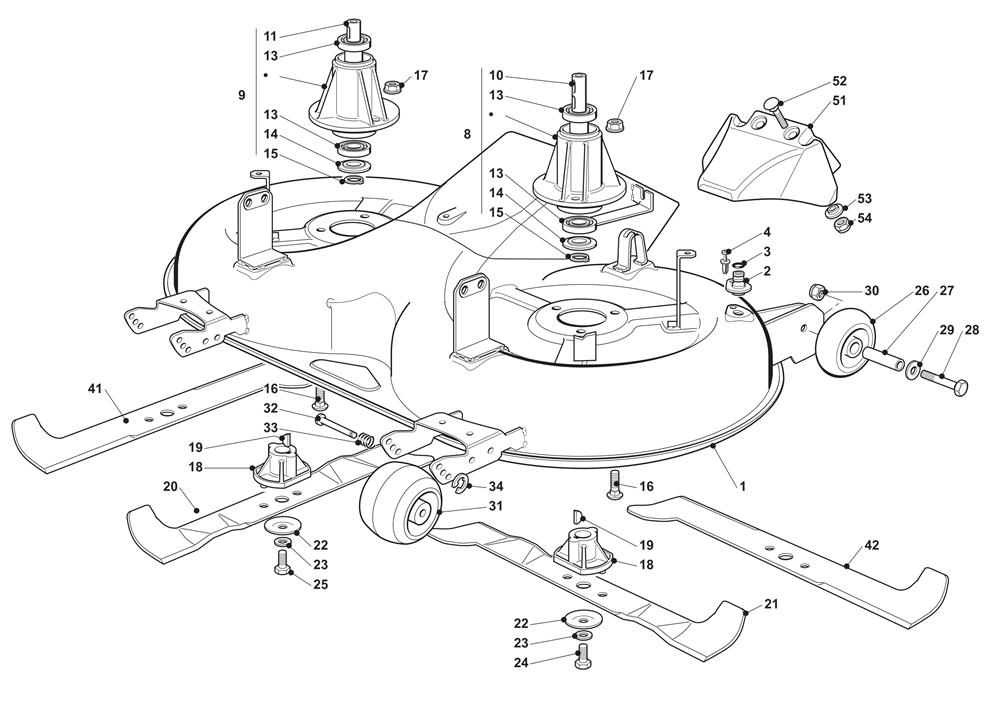

Cutting Plate assembly details for Mountfield 2040H Twin (2T0951283) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382564131/0CUTTER DECK CASING 102cm [BLACK]£702.06 Add to
001382564153/0CUTTER DECK CASING 102cm [GREY]£551.36 Add to
002125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
003119035000/0O RING 10.77 x 2.62£5.46 Add to
004112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
008382207200/1LCL/H BLADE HOUSING ASSEMBLY£122.90 Add to
009382207201/3LCSECONDARY BLADE SHAFT ASSEMBLY£85.68 Add to
010125020800/1MAIN BLADE SHAFT£44.40 Add to
011125020801/2SECONDARY BLADE SHAFT£41.17 Add to
013119216047/0BEARING 6204-C-2HRS£13.49 Add to
014325160501/1DUST COVER WASHER£2.06 Add to
015112609260/0CIRCLIP D=20£2.02 Add to
016112818700/0SCREW M8 x 25£2.81 Add to
017112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
018125463200/0BLADE BOSS£9.82 Add to
019112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
020182004348/0RIGHT MULCHING BLADE 102cm£34.35 Add to
021182004347/0LEFT MULCHING BLADE 102cm£34.35 Add to
022125160503/0SPRING WASHER£4.10 Add to
024112735696/0HEX-HEAD SCREW 3/8" x 1"£2.59 Add to
025112735697/1HEX-HEAD SCREW 3/8" x 1 1/2" L/H THREAD£2.47 Add to
026182700003/0ANTI-SCALP WHEEL D=80mm£10.33 Add to
027125510072/1WHEEL SPACER£2.18 Add to
028112692050/0HEX-HEAD SCREW£1.91 Add to
029112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
030112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
031182700004/0ANTI-SCALP WHEEL D=100mm£18.04 Add to
032125510121/1DECK FIXING PIN£9.54 Add to
033122450115/0SPRING£2.06 Add to
034112000930/0CIRCLIP D=6£0.79 Add to
041182004341/1RIGHT WINGED BLADE 102cm TC/TCP£32.99 Add to
042182004340/1LEFT WINGED BLADE 102cm TC/TCP£32.99 Add to
051325140100/0INTERNAL DEFLECTOR 102£20.72 Add to
052112815210/0SCREW M6 x 20£2.06 Add to
053125038002/1BUSH£2.06 Add to
054112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
