Optionals On Request

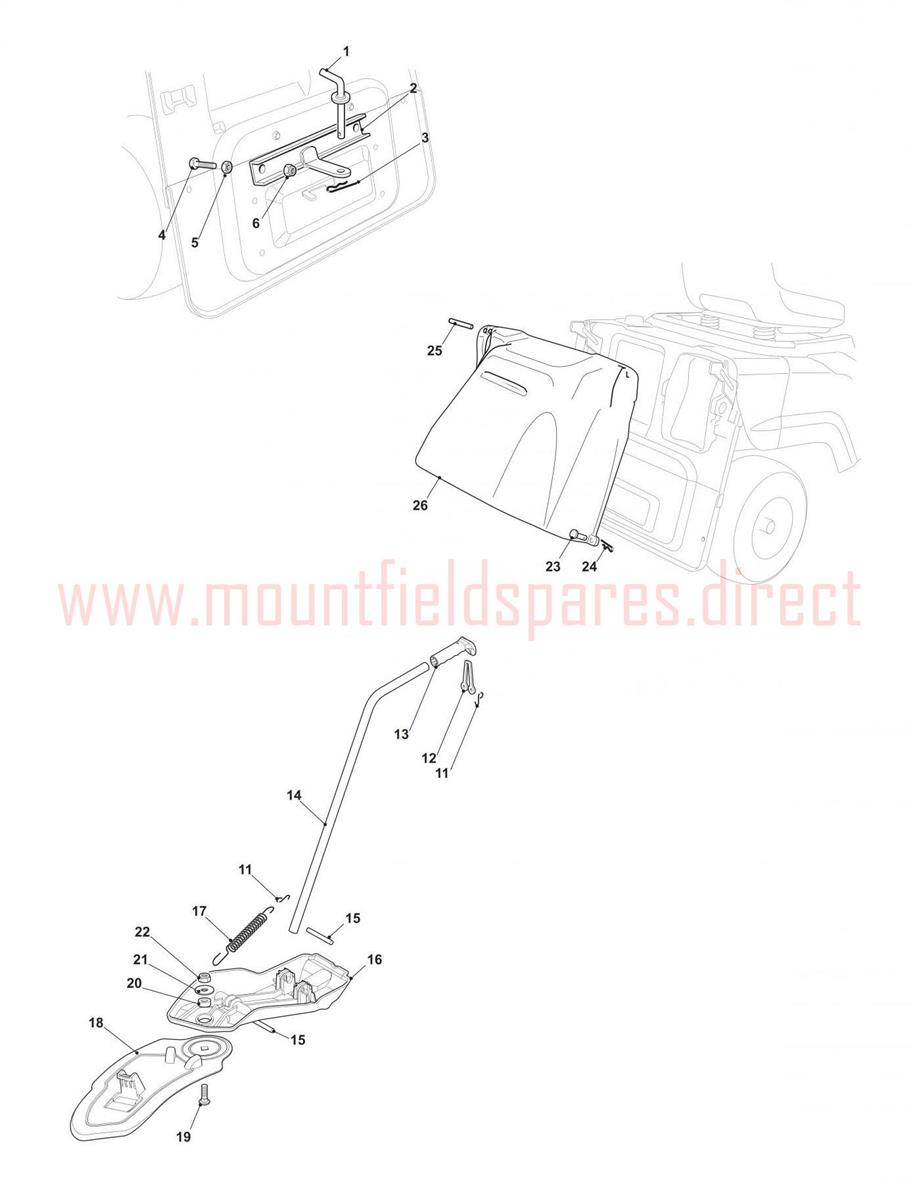

Optionals On Request assembly details for Mountfield 827H (2T0070483) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125510021/1HITCH PIN£11.78 Add to
002112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
003124487999/0R CLIP D=3£1.91 Add to
004112794300/0SCREW TE M10 x 30£1.91 Add to
005112295200/0HEXAGON NUT M10£1.79 Add to
006112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
011125253004/0FIXING HOOK£2.06 Add to
012125840011/1LOCKING RUBBER TIE£6.27 Add to
013325280000/1HAND GRIP KIT MULCHING RO£3.55 Add to
014327394003/2MULCHING PLUG HANDLE F72£68.42 Add to
015127510116/0HANDLE FULCRUM PIN x MULCHING F72£8.73 Add to
016384150052/0MULCHING BAFFLE ASS.Y NR66£25.21 Add to
017125430218/1DECK LIFT SPRING£6.14 Add to
018384150052/0MULCHING BAFFLE ASS.Y NR66£25.21 Add to
019112818700/0SCREW M8 x 25£2.81 Add to
020127047013/1BUSH£2.18 Add to
021322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023125510022/1PIN£3.40 Add to
024124487998/0R CLIP D=2£2.06 Add to
025127510127/0DEFLECTOR PIN£3.15 Add to
026327600181/0DEFLECTOR GUARD£92.95 Add to
