Guards

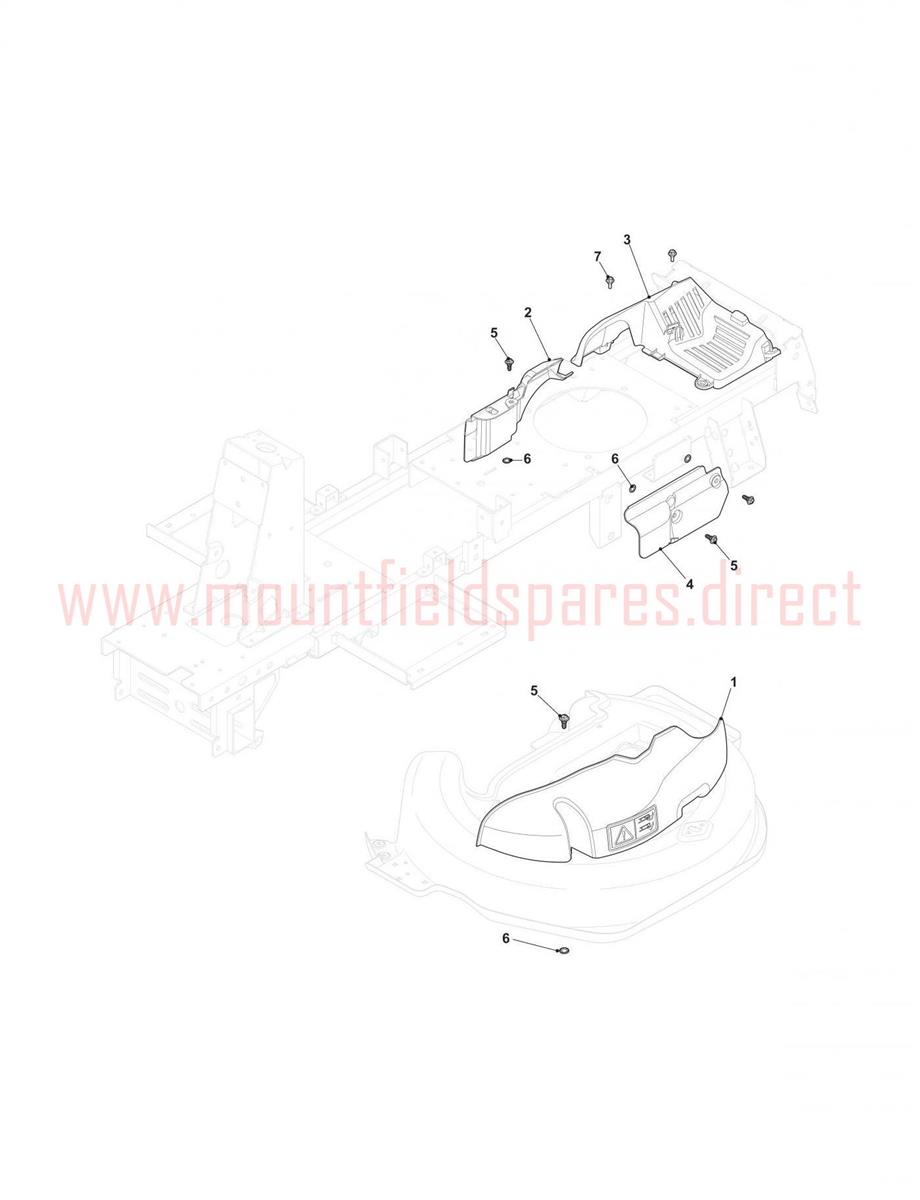

Guards assembly details for Mountfield R27M (2T0070486-SF) 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001327060111/1DECK PROTECTION COVER£11.67 Add to
002327060109/0RIGHT BELT PROTECTION COVER NR66£6.95 Add to
003327060108/1TRANSMISSION CARTER PROTECTION NR66£8.32 Add to
004327060110/0LEFT BELT PROTECTION COVER NR66£6.42 Add to
005125943011/0SCREW£9.82 Add to
006112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
007125943010/0FLANGED SCREW£2.06 Add to
