Engine - GGP 352cc

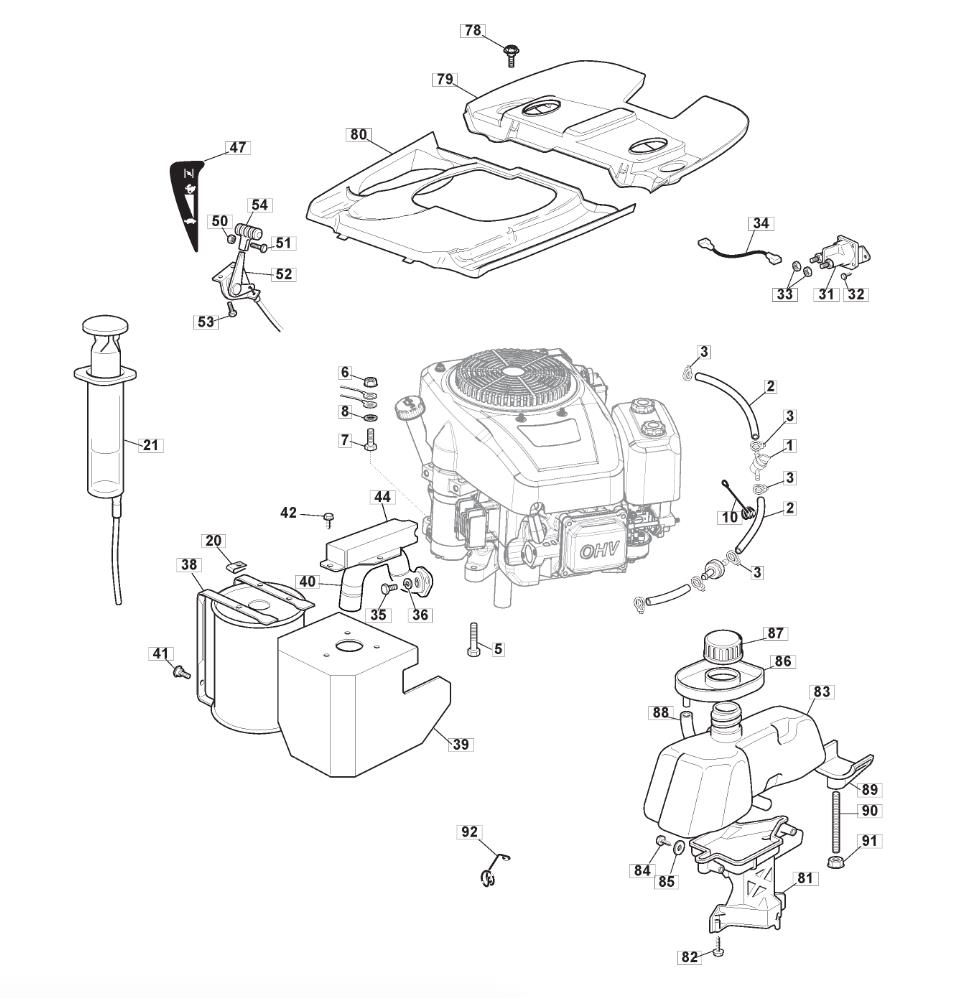

Engine - GGP 352cc assembly details for Mountfield 1328H (2T0210483/M18) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118562996/0FUEL TAP B&S x POWER BUILT 12,5£15.81 Add to
002325869035/1CONNECTING TUBE£9.82 Add to
003118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
005112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
006112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
007112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
008112540260/0INNER TOOTHED WASHER M8£2.06 Add to
010125430239/1SPRING£2.32 Add to
020112437504/0FIXING PLATE£2.06 Add to
021118718000/0OIL EMPTYING SYRINGE£16.22 Add to
031118736113/0SOLENOID£39.22 Add to
032112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
0339743-5121-32LOCK NUT 5/16"£1.79 Add to
034127065050/0STARTER CONNECT CABLE£6.69 Add to
035112737450/0SCREW 5/16 x 3/4 18 THREAD£3.55 Add to
036112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
038384750059/0MUFFLER£156.99 Add to
039384598099/0MUFFLER GUARD F72 GGP 352cc£49.34 Add to
041125943009/0HEX-HEAD SCREW M8 x 1.25£2.06 Add to
044327600137/1PROTECTION COVER£6.95 Add to
047114363697/0THROTTLE DECAL£2.06 Add to
050112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
051112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
052184000250/1THROTTLE CABLE£26.18 Add to
053125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
054125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
078125943010/0FLANGED SCREW£2.06 Add to
079327110515/0SEAT SWITCH COVER [BLACK]£12.55 Add to
080327110506/1ENGINE COVER [BLACK]£20.45 Add to
081327787062/0PLASTIC TANK SUPPORT£28.90 Add to
082112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
083127733003/1FUEL TANK£62.97 Add to
084112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
085112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
086327600061/2FUEL TANK GUARD£4.10 Add to
087125795000/1FUEL TANK CAP£8.04 Add to
088325869014/1FUEL PIPE L=410£7.92 Add to
089327787063/0TANK SUPPORT£1.79 Add to
090127510118/0TANK SUPPORT FIXING PIN£3.83 Add to
091112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
092127430557/0SPRING£3.81 Add to
