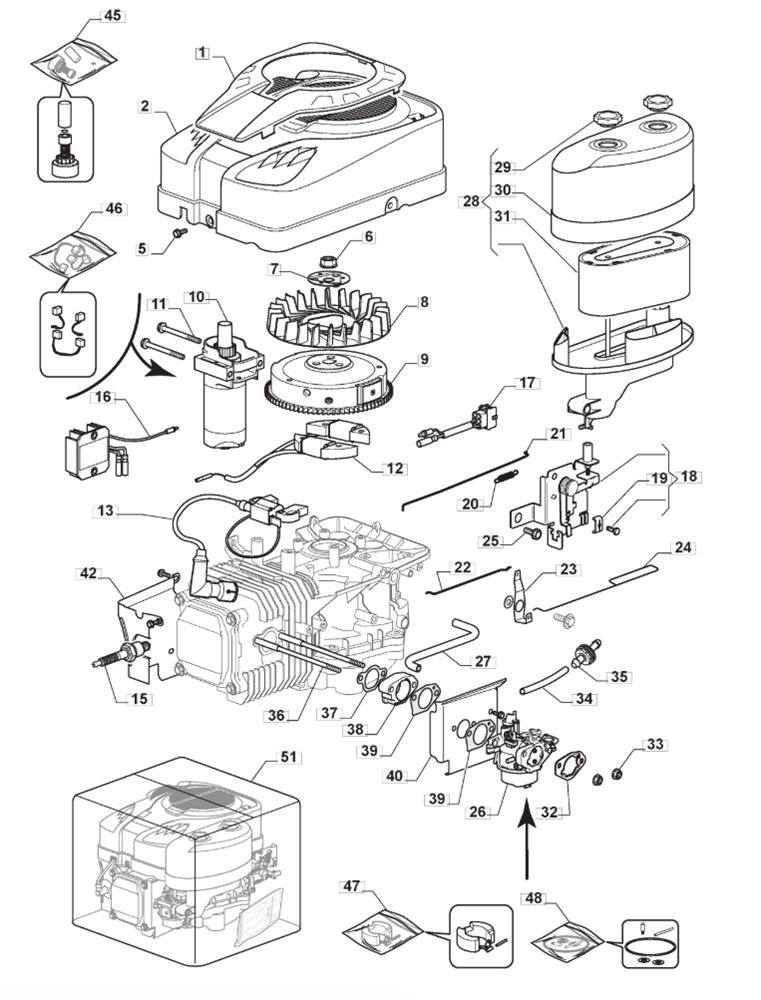

Engine - Carburettor, Air Cleaner Assy.

Engine - Carburettor, Air Cleaner Assy. assembly details for Mountfield 1530H (2T2120483/M15) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325055000/0ENGINE COVER [RED] TRE0801£15.06 Add to
001325055002/0ENGINE COVER [BLACK] TRE0801£13.77 Add to
002118550516/0ENGINE BASE COVER£31.26 Add to
005112791213/1SCREW M6 X 18£1.74 Add to
006118550237/0NUT£3.69 Add to
007118550236/0STARTER CUP£6.69 Add to
008118550235/1FLYWHEEL FAN£26.18 Add to
009118550234/2FLYWHEEL£231.93 Add to
011119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
012118551441/0CHARGE COIL ASSEMBLY (LATEST VERSION)£58.87 Add to
013118551438/0IGNITION COIL (LATEST VERSION)£45.26 Add to
0159400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
016118551428/0RECTIFIER£52.12 Add to
018118550331/1REMOTE CONTROL ASSEMBLY£42.53 Add to
020118550213/0SPRING£2.47 Add to
021118551219/0GOVERNOR ROD£5.73 Add to
022118551218/0CHOKE ROD£5.19 Add to
023118551267/0CHOKE LEVER£6.47 Add to
024118551221/0THROTTLE ROD£3.41 Add to
025118551277/0SCREW M6 X 14 (OBSOLETE)N/A
026118550763/1CARBURETTOR£84.77 Add to
027118550225/1BREATHER FUEL PIPE£9.28 Add to
028118550202/2AIR FILTER ASSEMBLY£43.77 Add to
029118550201/0KNOB£2.66 Add to
030118550200/0AIR FILTER COVER£17.04 Add to
031118550199/0AIR FILTER£25.44 Add to
032118550762/0CARBURETTOR GASKET£6.88 Add to
033112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
034118550432/0FUEL PIPE£3.15 Add to
035118550427/0FUEL FILTER£5.87 Add to
036118551279/0STUD BOLT£3.55 Add to
037118551263/0INTAKE MANIFOLD GASKET£2.18 Add to
039118551262/0CARBURETTOR GASKET£2.18 Add to
040118551259/0GUARD£17.72 Add to
042118551260/0GUARD£15.39 Add to
045118550365/1STARTER DRIVE KIT£52.06 Add to
046118550332/1BRUSH HOLD£35.71 Add to
047118550440/0CARBURETTOR FLOAT KIT£10.77 Add to
048118550442/0CARBURETTOR GASKET SET£15.36 Add to
051118550526/0ENGINE ASSEMBLY 452cc TRE0801£771.72 Add to
