Transmission 2. Unit, Hydro-gear T2-ADBF-2X3C-1RX1

Transmission 2. Unit, Hydro-gear T2-ADBF-2X3C-1RX1 assembly details for Mountfield 1530H (2T2120483/M15) 2018 model

Parts list

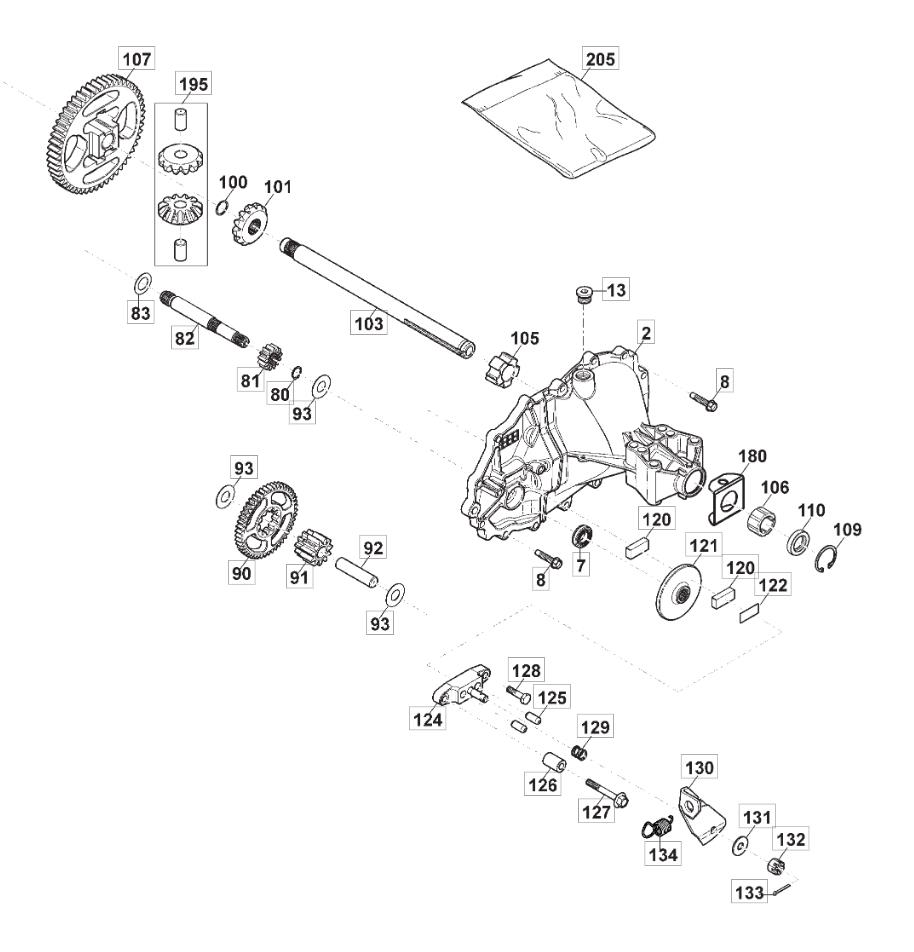

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002118870121/0SIDE HOUSING£488.41 Add to
007118870111/0OIL SEAL 0.50 X 1.00 X 0.25£10.93 Add to
0081139-2042-01SCREW£6.42 Add to
0131139-2010-01PLUG£22.35 Add to
080118870070/0RETAINING RING 0.457£4.52 Add to
081118870094/0GEAR 13T£6.32 Add to
082118870095/0MOTOR SHAFT£69.43 Add to
083118870096/0WASHER 0.06 X 1.00 X 0.33£5.37 Add to
090118870097/0GEAR 48T/11T£38.43 Add to
091118870098/0GEAR 11T£23.79 Add to
092118870099/0JACKSHAFT PIN£23.15 Add to
0931139-2016-01WASHER£5.71 Add to
103118870114/0AXLE SHAFT 0.75 X 11.39 (R/H KEY)£124.05 Add to
107118870100/0GEAR 53T£165.76 Add to
120118870066/0BRAKE PAD£8.19 Add to
121118870101/0BRAKE£19.90 Add to
122118870067/0BRAKE PAD PLATE£4.52 Add to
124118870119/0BRAKE CALLIPER£40.47 Add to
125118870069/0BRAKE PIN£5.87 Add to
126118870062/0SPACER£4.52 Add to
127118870077/0SCREW 0.250-20 X 2.0 HFS PATCH£4.52 Add to
128118870071/0BOLT 1/4-20 X 1 (PATCH)£4.52 Add to
129118870076/0COMPRESSION SPRING (OBSOLETE)N/A
130118870088/0BRAKE ARM£45.26 Add to
132118870068/0NUT 5/16-24 (OBSOLETE)N/A
133118870065/0COTTER PIN 3/32 X 3/4£4.52 Add to
134118870078/0SPRING£6.95 Add to
195118870126/0GEARS & PINS KIT£58.25 Add to
205118870124/0SEAL KIT£72.18 Add to
