Transmission Unit, Hydro-gear T2-ADBF-2X3C-1RX1

Transmission Unit, Hydro-gear T2-ADBF-2X3C-1RX1 assembly details for Mountfield 1530H (2T2120483/M15) 2018 model

Parts list

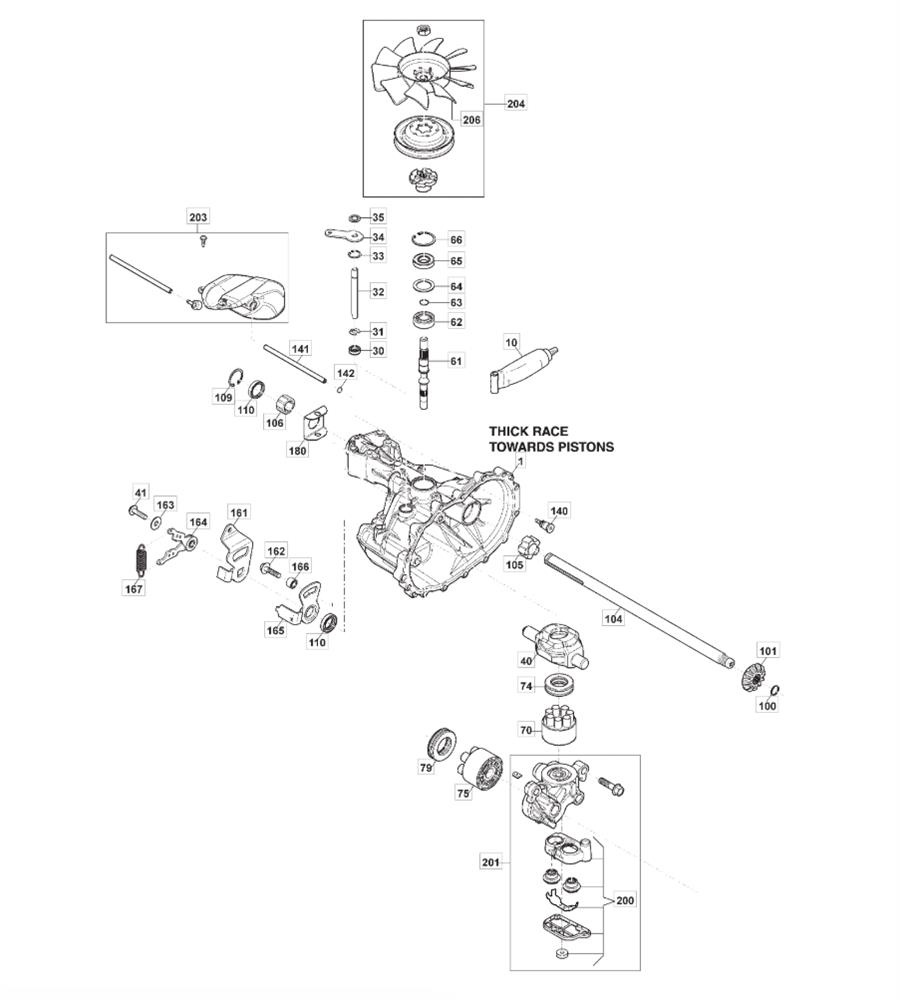

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118870120/0MAIN HOUSING£685.16 Add to
0101139-2022-01SEALANT TUBE£135.53 Add to
030118870079/0SEAL 0.375 X 0.75 X 0.25£10.09 Add to
0321139-2203-01BY-PASS ROD£21.76 Add to
034118870091/0BY-PASS ARM£14.74 Add to
040118870090/0SWASH PLATE£102.48 Add to
061118870092/0INPUT DRIVE SHAFT£91.58 Add to
0651139-2000-01SEAL RING£31.40 Add to
070118870125/0PUMP BLOCK ASSEMBLY£132.33 Add to
074118870093/0THRUST BEARING 27 x 47 x 14£41.16 Add to
0791139-2021-01THRUST BEARING£43.89 Add to
100118870072/0RETAINING RING£6.27 Add to
101118870063/0GEAR 12T£30.17 Add to
104118870113/0AXLE SHAFT 0.75 x 16.99 (L/H KEY)£211.50 Add to
105118870086/0AXLE BUSH£10.56 Add to
106118870085/0AXLE BUSH£8.44 Add to
1401139-2038-01FITTING 1381-1174HST£35.98 Add to
141118870102/0TUBE 0.16 X 0.28 X 5.5£6.09 Add to
1421139-2075-01O RING£6.09 Add to
161118870103/0CONTROL ARM£22.12 Add to
1621139-2026-01BOLT£7.04 Add to
164118870107/0BI-DIRECTIONAL RETURN ARM£28.12 Add to
165118870108/0NEUTRAL ARM£18.36 Add to
166118870104/0BUSH 0.315 X 0.618 X 0.390£5.46 Add to
167118870089/0EXTENSION SPRING£9.54 Add to
180118870112/0SPRING PLATE£13.47 Add to
201118870127/0CENTER SECTION KIT£367.61 Add to
203118870122/0EXPANSION TANK KIT£65.69 Add to
2041139-2201-01HYDRO FAN KIT£162.96 Add to
206118870129/0HYDRO GEAR FAN [T2-ADBF-2X3C-1RX1]£47.97 Add to
