Grasscatcher

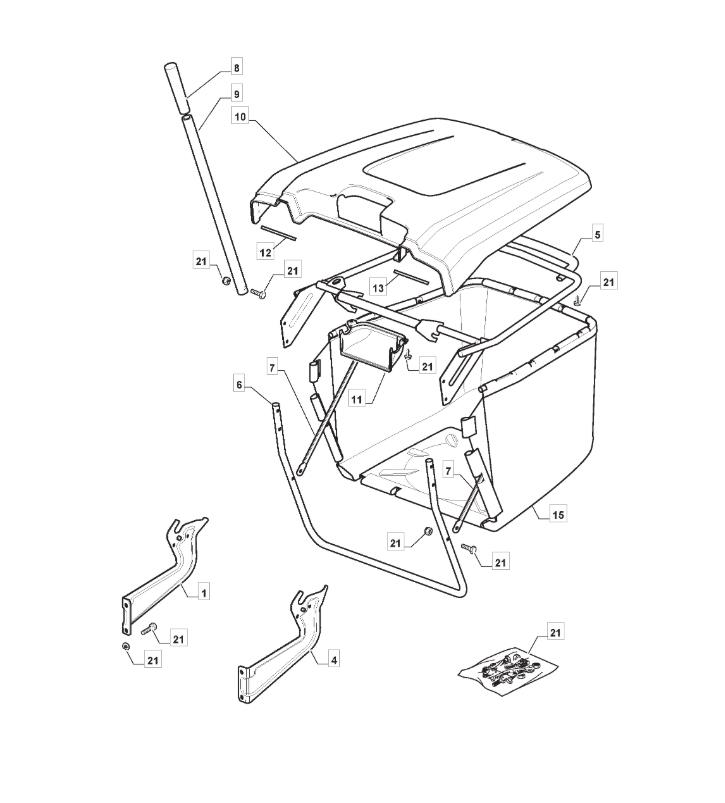

Grasscatcher assembly details for Mountfield 1530M (2T2020483/M15) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325785377/0R/H GRASSCATCHER BRACKET£32.45 Add to
004325785383/0L/H GRASSCATCHER BRACKET£32.45 Add to
005382800139/0UPPER GRASSCATCHER FRAME£119.32 Add to
006382800141/0LOWER GRASSCATCHER FRAME£37.87 Add to
007325650149/0REINFORCEMENT ROD£8.37 Add to
008125394508/0KNOB£4.52 Add to
009325869087/0TIPPING LEVER£27.88 Add to
010325110479/0GRASSCATCHER COVER [DARK RED]£134.92 Add to
011325207195/0HANDLE COVER [BLACK]£11.46 Add to
012125270802/0R/H REAR PLATE STRIP£4.52 Add to
013125270803/0L/H REAR PLATE STRIP£4.52 Add to
015182105947/0GRASSCATCHER BAG 84cm [HE]£163.80 Add to
021382180123/0GRASSCATCHER ASSEMBLY KIT MP84 HE£18.74 Add to
