Optionals on Request

Optionals on Request assembly details for Mountfield 1530M (2T2020483/M15) 2018 model

Parts list

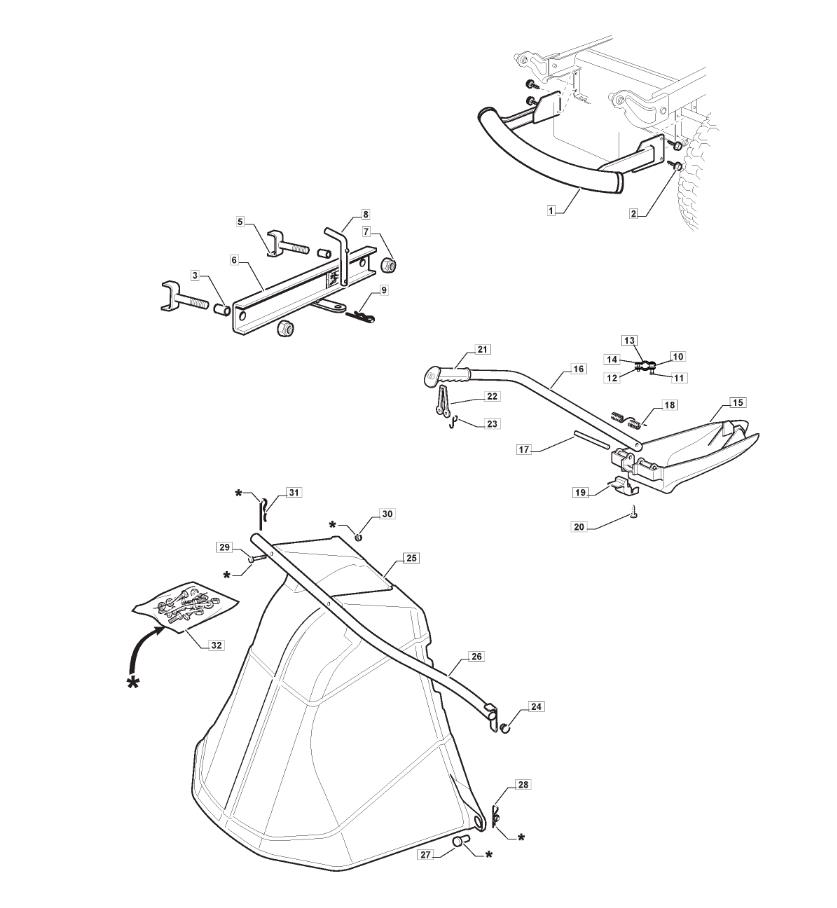

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382869038/0FRONT BUMPER BAR£37.33 Add to
002112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
003125160074/0SPACER (TO 31 AUG 2019)£3.40 Add to
005382650211/0REINFORCEMENT PIN£5.46 Add to
006382033119/0TOW BAR£32.99 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
008125510021/1HITCH PIN£11.78 Add to
009124487999/0R CLIP D=3£1.91 Add to
010122170600/0SPACER£1.91 Add to
011112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
012112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
013327546015/2WZ FLAT FULCR.AXLE FIX PLATE£2.06 Add to
014112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
015325140104/1MULCH DEFLECTOR SHOE£23.01 Add to
016325394021/0MULCH PLUG HANDLE£17.45 Add to
017125510077/0FULCRUM PIN£3.69 Add to
018125430245/0SPRING£3.28 Add to
019325547320/0END BLOCK£4.10 Add to
020112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
021325280000/1HAND GRIP KIT MULCHING RO£3.55 Add to
022125840011/1LOCKING RUBBER TIE£6.27 Add to
023125253004/0FIXING HOOK£2.06 Add to
024118566116/0HANDLE CAP BLACK D=21£2.74 Add to
025325600093/1DEFLECTOR GUARD MP84£68.42 Add to
026382869044/0SUPPORT ROD£18.74 Add to
027125510022/1PIN£3.40 Add to
028124487998/0R CLIP D=2£2.06 Add to
029112689515/0HEX-HEAD SCREW M6 x 45£2.06 Add to
030112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
031124487999/0R CLIP D=3£1.91 Add to
032382180028/0SCREW ASSEMBLY KIT [DEFLECTOR]£13.49 Add to
