Cutting Plate

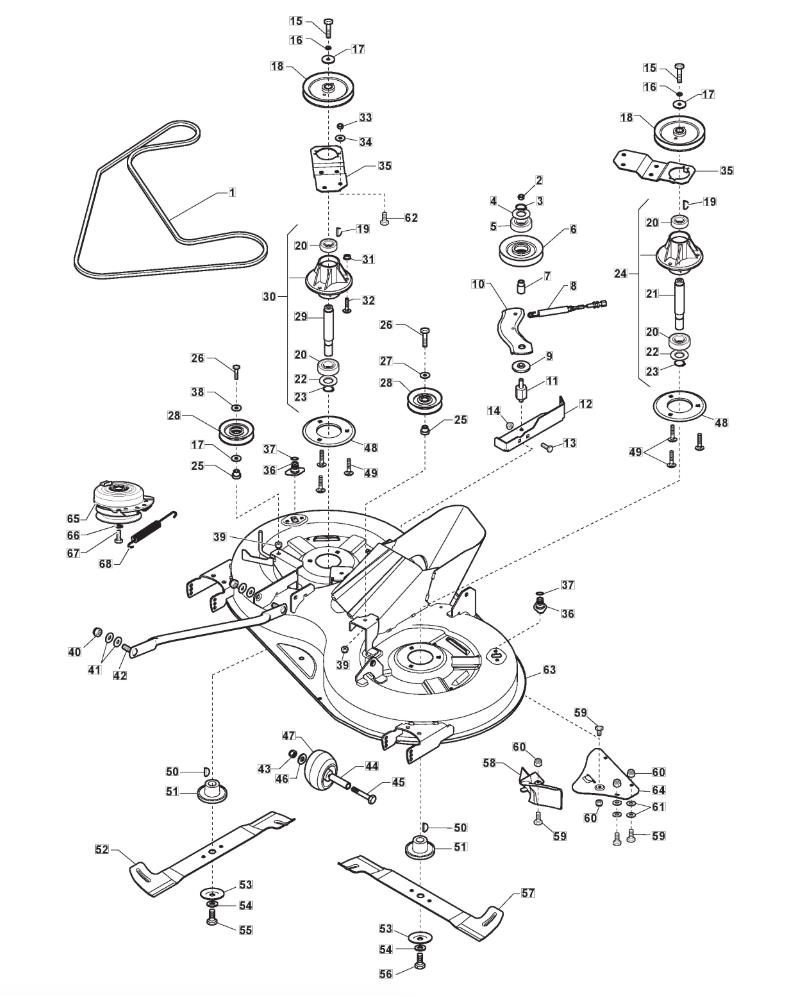

Cutting Plate assembly details for Mountfield 1538M (2T2520483/M16) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001135061509/0DECK DRIVE BELT AA96£92.95 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
003112524010/0WASHER M8 8.4 x 24 x 4£1.91 Add to
004112610800/0CIRCLIP D=35£2.06 Add to
005119216048/0BEARING£18.27 Add to
006125601595/0BLADE IDLER PULLEY£35.71 Add to
007125160052/0PULLEY SPACER£2.87 Add to
008382004618/0DECK ENGAGE CABLE£23.17 Add to
009125040635/0BUSH£4.78 Add to
010325318343/0TENSION CONTROL LEVER£13.91 Add to
011125160049/0SPACER£6.42 Add to
012325785391/0SUPPORT BRACKET£22.23 Add to
0139897-0820-16SCREW M8 x 20£2.32 Add to
014112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
015112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
016112540260/0INNER TOOTHED WASHER M8£2.06 Add to
017125670007/0FIXING WASHER£2.06 Add to
018125601604/0BLADE SHAFT PULLEY£48.96 Add to
019112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
020119216047/0BEARING 6204-C-2HRS£13.49 Add to
021125020804/0BLADE SHAFT LEFT HAND£35.71 Add to
022325160501/1DUST COVER WASHER£2.06 Add to
023112609260/0CIRCLIP D=20£2.02 Add to
024382207204/1BLADE SHAFT ASSEMBLY LEFT HAND£102.48 Add to
025125160082/0PULLEY SPACER (FROM 1ST SEPT 2013 TO 31ST AUG 201£4.19 Add to
026112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
027112524010/0WASHER M8 8.4 x 24 x 4£1.91 Add to
028325601599/0PULLEY (STEEL) (BEARING HOLE D 15)£19.62 Add to
029125020805/0BLADE SHAFT RIGHT HAND£35.71 Add to
030382207205/1BLADE SHAFT ASSEMBLY RIGHT HAND£102.48 Add to
031112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
0329897-0820-16SCREW M8 x 20£2.32 Add to
033112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
034112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
035325774617/0BLADE SHAFT BRACKET£14.05 Add to
036325033086/0WASHING CONNECTION SD 98£2.06 Add to
037119035000/0O RING 10.77 x 2.62£5.46 Add to
038112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
039112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
040112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
041325670008/1ANTI-FRICTION WASHER 10.8 x 19 x 0.8£2.06 Add to
042382000565/1BALANCE ROD£20.99 Add to
043112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
044125160072/0WHEELS SPACER£4.11 Add to
045112692100/0HEX-HEAD SCREW M8 x 105£2.74 Add to
046112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
047182700005/0ANTI-SCALP WHEEL D=90mm£18.68 Add to
048325160505/0REINFORCEMENT DISC£12.46 Add to
049112139480/0KEY 6x6x20 UNI6604-A 6.8£2.06 Add to
050112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
051125463200/0BLADE BOSS£9.82 Add to
052182004362/0RIGHT WINGED BLADE 98cm£28.90 Add to
052182004364/0RIGHT MULCHING BLADE 98cm£23.45 Add to
053122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
054112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
055112735695/1HEX-HEAD SCREW 3/8" x 1 1/2" L/H THREAD£4.23 Add to
056112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
057182004346/0MULCHING BLADE 98cm£23.45 Add to
057182004363/0LEFT WINGED BLADE 98cm£28.90 Add to
058325140111/0REAR DEFLECTOR PLATE£8.40 Add to
059112791213/1SCREW M6 X 18£1.74 Add to
060112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
061112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
062112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
063382564118/0CUTTER DECK CASING MP98 [BLACK]£535.63 Add to
064325785509/0REAR DEFLECTOR PLATE [BLACK]£10.25 Add to
065118399069/0ELECTROMAGNETIC CLUTCH(No Returns on this item)£401.24 Add to
066112543000/0SAFETY WASHER D=7/16£2.06 Add to
067112737320/0THREADED SCREW 7/16" x 3" 20 UNF£4.78 Add to
068125430277/0TENSION SPRING£2.87 Add to
