Body

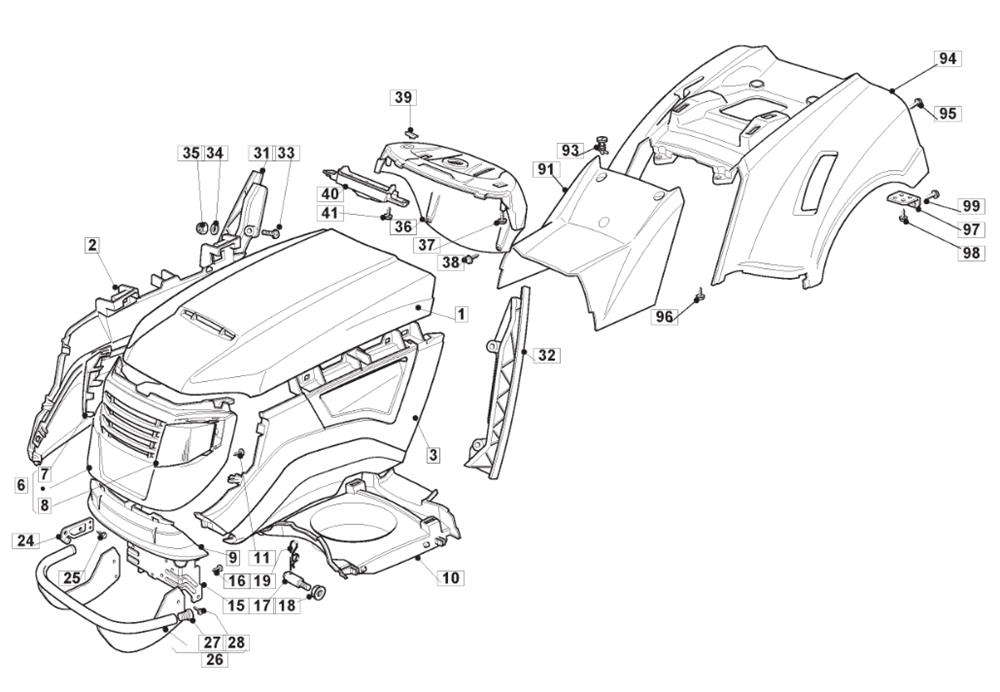

Body assembly details for Mountfield 1636H (2T0430483/M11) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076977/0UPPER ENGINE HOOD [DARK RED]£109.29 Add to
002382394653/1BONNET R/H [DARK RED]£84.77 Add to
003382394654/1BONNET L/H [DARK RED]£89.43 Add to
006382394613/0FRONT HOOD [BLACK]£84.77 Add to
007325410876/0RIGHT HEADLIGHTS GRILL£9.14 Add to
008325410877/0LEFT HEADLIGHTS GRILL£9.14 Add to
009325076870/1LOWER FRONT HOOD [BLACK]£16.91 Add to
010325108031/0INTAKE CONVEYOR£57.52 Add to
011112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
015325774301/2HOOD SUPPORT£18.13 Add to
016112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
017125510169/1BONNET PIN (ROUND VERSION)£3.15 Add to
018124487998/0R CLIP D=2£2.06 Add to
019124487998/0R CLIP D=2£2.06 Add to
024325547159/1PLATE£5.05 Add to
025112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
026382869027/0FRONT BUMPER BAR£99.65 Add to
027118737860/0END CAP D=40£2.06 Add to
028112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
032325599013/0LEFT DASHBOARD SUPPORT£7.23 Add to
033112815221/0SCREW M6 x 35£1.79 Add to
034112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
036325120272/0DASHBOARD [BLACK]£37.40 Add to
037112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
038112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
039125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
040325600074/0PC BOARD COVER£9.07 Add to
041112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
091325110486/0CENTRAL COVER [DARK RED]£38.89 Add to
093125580020/2SPRING TENSIONED SCREW£7.23 Add to
094325110485/0WHEELS COVER [DARK RED]£105.21 Add to
095112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
096112735402/0FLANGED HEX-HEAD SCREW D=6 x 18 WZ£2.06 Add to
097325755041/0ANGLE BRACKET£2.06 Add to
098112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
099112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
