Body

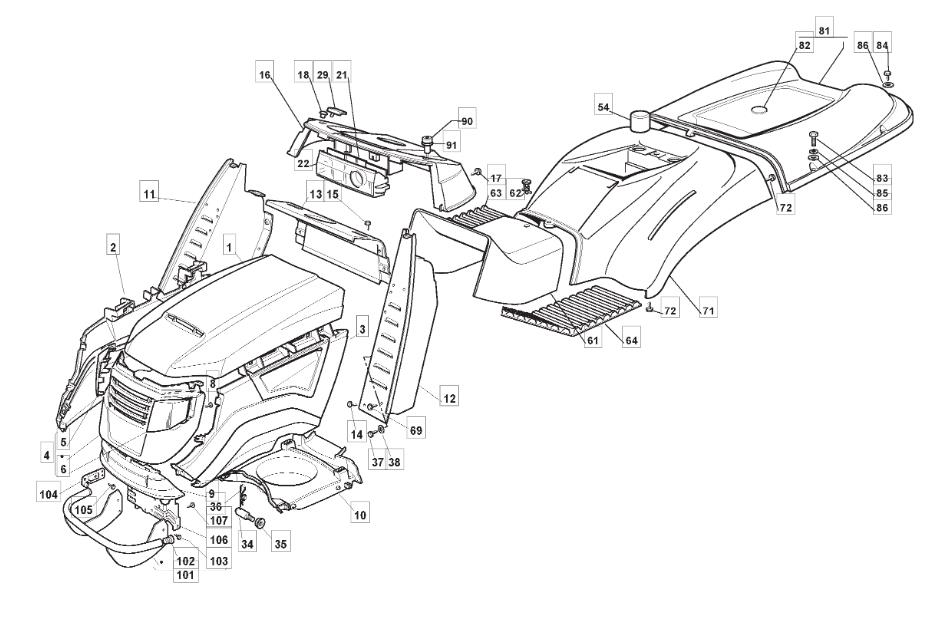

Body assembly details for Mountfield 2040H (2T0951283/M13) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076977/0UPPER ENGINE HOOD [DARK RED]£109.29 Add to
002382394653/1BONNET R/H [DARK RED]£84.77 Add to
003382394654/1BONNET L/H [DARK RED]£89.43 Add to
004382394613/0FRONT HOOD [BLACK]£84.77 Add to
005325410876/0RIGHT HEADLIGHTS GRILL£9.14 Add to
006325410877/0LEFT HEADLIGHTS GRILL£9.14 Add to
008112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
009325076870/1LOWER FRONT HOOD [BLACK]£16.91 Add to
010325108031/0INTAKE CONVEYOR£57.52 Add to
011382785022/10RIGHT DASHBOARD SUPPORT£42.53 Add to
012382785021/9LEFT DASHBOARD SUPPORT£41.16 Add to
013382785137/1CENTRAL DASHBOARD SUPPORT£12.27 Add to
014112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
015112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
016325120278/0DASHBOARD [BLACK]£41.41 Add to
017112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
018125120200/0CAP (OBSOLETE)£2.54 Add to
021125600009/0PROTECTIVE COVER£3.00 Add to
022125600051/0PC BOARD PROTECTION COVER£10.49 Add to
029125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
034125510068/0BONNET FULCRUM PIN£2.06 Add to
035112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
036124487998/0R CLIP D=2£2.06 Add to
037112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
038112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
054325122000/2PROTECTION CAP£2.06 Add to
061325110481/0CENTRAL COVER [DARK RED]£32.99 Add to
062125580020/2SPRING TENSIONED SCREW£7.23 Add to
063125110270/0RIGHT FOOTBOARD COVER£26.93 Add to
064125110260/2LEFT FOOTBOARD COVER£24.95 Add to
069112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
071325109797/0WHEELS COVER [DARK RED]£124.29 Add to
072112735420/0FLANGED SCREW D=6 x 16£4.23 Add to
081382110302/0GRASSCATCHER TOP [DARK RED]£143.37 Add to
082325547424/0INSERT COVER [RED]£2.78 Add to
083112674701/0SCREW TE M6 x 35£2.06 Add to
084112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
085112582101/0WASHER M6£2.06 Add to
086112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
090325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
091325256250/0THREADED RING NUT£2.87 Add to
101382869025/0FRONT BUMPER BAR£117.75 Add to
102118737860/0END CAP D=40£2.06 Add to
103112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
104325547159/1PLATE£5.05 Add to
105112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
106325774301/2HOOD SUPPORT£18.13 Add to
107112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
