Engine-Briggs & Stratton

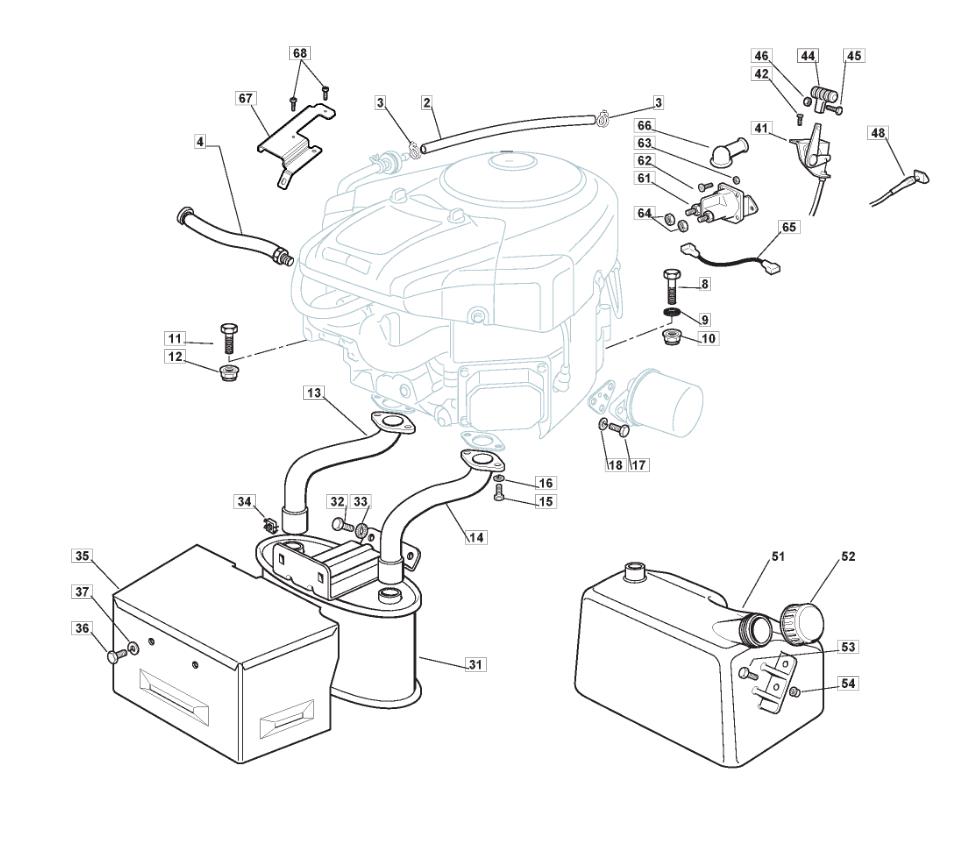

Engine-Briggs & Stratton assembly details for Mountfield 2040H (2T0951283/M13) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002325869016/1CONNECTING TUBE£7.10 Add to
003118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
0041134-5827-01OIL DRAIN ASSEMBLY£41.16 Add to
008112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
009112540260/0INNER TOOTHED WASHER M8£2.06 Add to
010112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
011119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
012112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
013118738214/0EXHAUST PIPE R/H£91.78 Add to
014118738215/0EXHAUST PIPE L/H£93.36 Add to
015112735530/0SCREW 5/16" x 3/4"£1.91 Add to
016112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
017112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
018112582100/0LOCK WASHER M6£2.06 Add to
031182750011/0DOUBLE CYLINDER MUFFLER£110.66 Add to
032112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
033112540260/0INNER TOOTHED WASHER M8£2.06 Add to
034112360425/0SQUARE NUT M8£2.18 Add to
035382598005/2MUFFLER PROTECTION GUARD£34.35 Add to
036112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
037112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
041182000218/0THROTTLE CABLE£26.18 Add to
042125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
044325592000/1LEVER KNOB£2.32 Add to
045112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
046112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
048125090001/2CHOKE CONTROL CABLE£19.62 Add to
051325735111/3FUEL TANK£54.79 Add to
052125795000/1FUEL TANK CAP£8.04 Add to
053112788910/0HEX-HEAD SCREW M5 x 16£2.06 Add to
054112500092/0RIVET D=7£2.06 Add to
061118736113/0SOLENOID£39.22 Add to
062112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
063112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0649743-5121-32LOCK NUT 5/16"£1.79 Add to
065125065017/0MOTOR/SOLENOID CONNECT CABLE£9.82 Add to
066118564861/2RED RUBBER TERMINAL COVER£7.10 Add to
067325774701/0SUPPORT BRACKET£17.86 Add to
068112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
