Grasscatcher

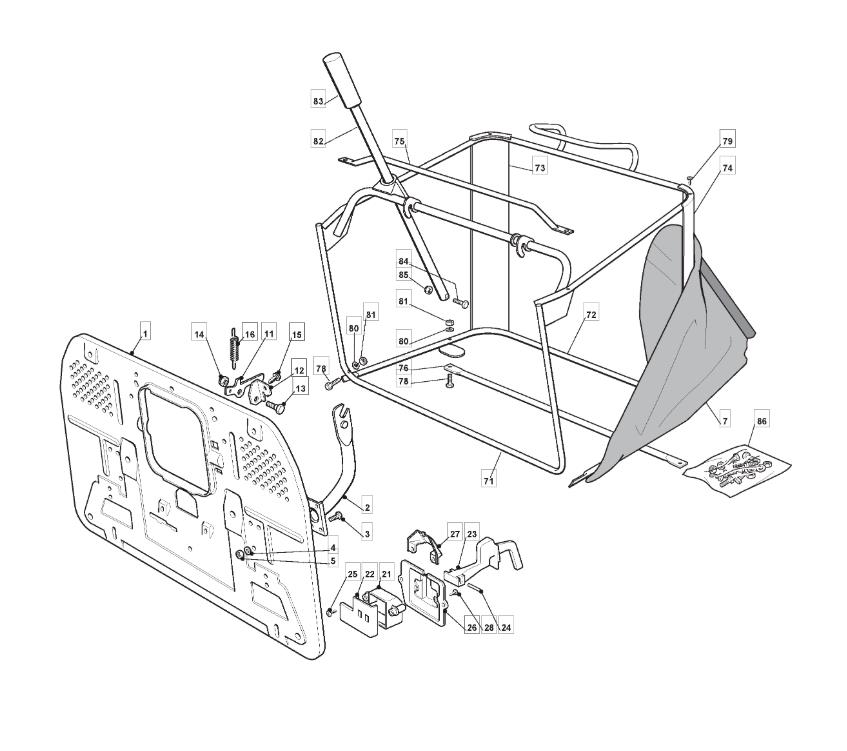

Grasscatcher assembly details for Mountfield 2040H (2T0951283/M13) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382547051/1REAR PLATE£153.16 Add to
002182774225/1GRASSCATCHER SUPPORT CLAMP£32.29 Add to
003112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
004112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007182106000/2GRASSCATCHER BAG TC 102-122cm£120.90 Add to
011325774315/1GRASSCATCHER LOWER HOOKING CLAMP£4.37 Add to
012325755031/1CLAMP BRACKET (OBSOLETE) (OBSOLETE)N/A
013125510080/2CLAMP PIN£1.79 Add to
014112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
015112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
016125430210/1BRAKE SPRING£3.00 Add to
021125600041/0MICRO PROTECTION COVER£2.32 Add to
022125600042/0MICRO PROTECTION COVER£3.41 Add to
023125318124/0MICRO CONTROL LEVER£2.32 Add to
024112400030/0PIN D=3 L=30£1.91 Add to
025112728510/0SELF-TAP SCREW 4.8 x 13£3.15 Add to
026325785272/1MICRO SWITCH COVER£2.47 Add to
027125600048/0MICRO SWITCH COVER£2.06 Add to
028112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
071382800051/0UPPER GRASSCATCHER FRAME£186.22 Add to
072382800002/2LOWER GRASSCATCHER FRAME£34.35 Add to
073325032001/1RIGHT ANGULAR SUPPORT£15.69 Add to
074325032002/1LEFT ANGULAR SUPPORT£15.69 Add to
075382394001/2FRONT GRASSCATCHER HANDLE£13.08 Add to
076382650038/0REINFORCEMENT BAR£12.30 Add to
078112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
079112729601/1SELF-TAP SCREW TE FL 5.5 x 16£2.06 Add to
080112582101/0WASHER M6£2.06 Add to
081112292100/0HEXAGON NUT M6£1.47 Add to
082125869029/1TIPPING LEVER£28.43 Add to
083125394508/0KNOB£4.52 Add to
084112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
085112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
086382180027/1GRASSCATCHER SCREW OUTFIT£12.68 Add to
