Body

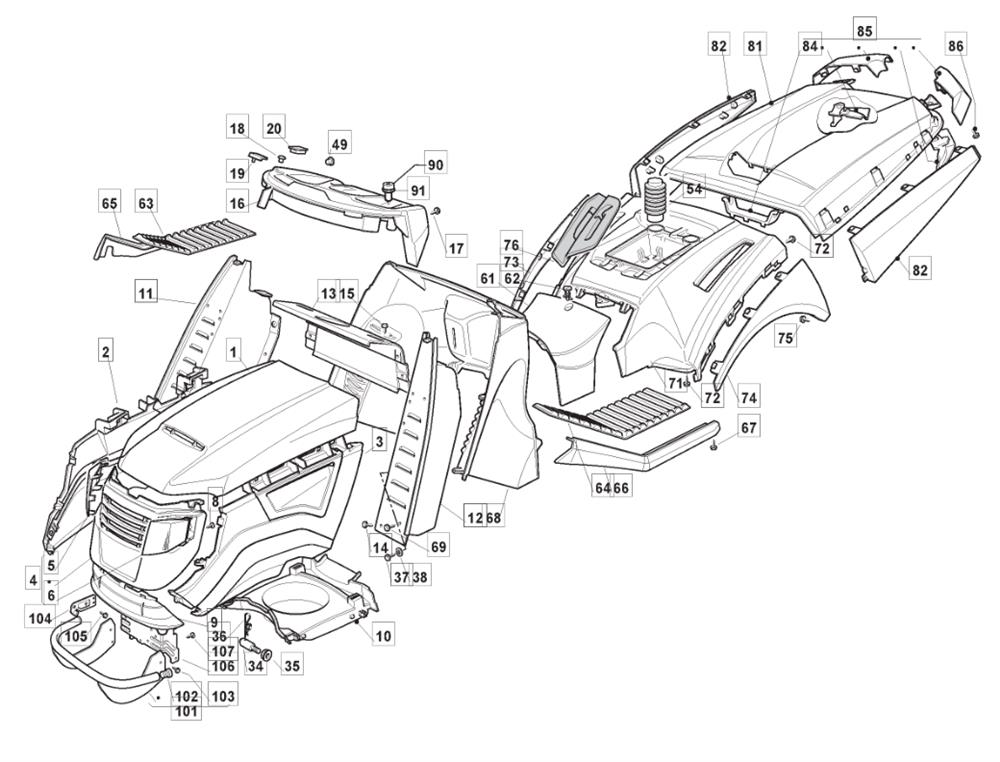

Body assembly details for Mountfield 2248H (2T1310283/M11) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	325076977/0	UPPER ENGINE HOOD [DARK RED]	£109.29	Add to
002	382394653/1	BONNET R/H [DARK RED]	£84.77	Add to
003	382394654/1	BONNET L/H [DARK RED]	£89.43	Add to
004	382394613/0	FRONT HOOD [BLACK]	£84.77	Add to
005	325410876/0	RIGHT HEADLIGHTS GRILL	£9.14	Add to
006	325410877/0	LEFT HEADLIGHTS GRILL	£9.14	Add to
008	112735403/0	FLANGED HEX-HEAD SCREW D=6 x 18	£2.06	Add to
009	325076870/1	LOWER FRONT HOOD [BLACK]	£16.91	Add to
010	325108031/0	INTAKE CONVEYOR	£57.52	Add to
011	382785022/10	RIGHT DASHBOARD SUPPORT	£42.53	Add to
012	382785021/9	LEFT DASHBOARD SUPPORT	£41.16	Add to
013	382785137/1	CENTRAL DASHBOARD SUPPORT	£12.27	Add to
014	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
015	112735110/0	FLANGED SELF-TAP SCREW 4.8 X 13	£2.81	Add to
016	325120266/0	DASHBOARD [GREY] TX	£43.89	Add to
017	112728440/0	SELF-TAPPING SCREW 4.8 X 13	£1.79	Add to
018	125120200/0	CAP (OBSOLETE)	£2.54	Add to
019	125260000/0	ANTI-VIBRATION RUBBER GROMMET	£3.41	Add to
020	325120234/1	CLUTCH SWITCH CAP	£5.02	Add to
034	125510068/0	BONNET FULCRUM PIN	£2.06	Add to
035	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
036	124487998/0	R CLIP D=2	£2.06	Add to
037	112735654/0	SELF-TAPPING SCREW M5 x 16	£2.74	Add to
038	112521330/0	WASHER M6 6.4 X 12 X 1.6	£2.06	Add to
049	325120233/0	CAP (OBSOLETE)	£4.28	Add to
054	325737002/0	PROTECTION COVER	£6.01	Add to
061	325110483/0	CENTRAL COVER [DARK RED]	£34.35	Add to
062	125580020/2	SPRING TENSIONED SCREW	£7.23	Add to
063	325110278/1	R/H FOOTBOARD COVER [BLACK]	£26.18	Add to
064	325110279/0	L/H FOOTBOARD COVER [BLACK]	£26.18	Add to
065	325599004/0	RIGHT FOOTBOARD PROFILE [BLACK]	£16.22	Add to
066	325599005/0	LEFT FOOTBOARD PROFILE [BLACK]	£17.64	Add to
067	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
068	325785229/1	DASHBOARD SUPPORT	£68.48	Add to
069	112735403/0	FLANGED HEX-HEAD SCREW D=6 x 18	£2.06	Add to
071	325109798/0	WHEELS COVER [DARK RED]	£114.74	Add to
072	112735420/0	FLANGED SCREW D=6 x 16	£4.23	Add to
073	325109758/0	RIGHT WHEEL COVER [BLACK]	£18.27	Add to
074	325109757/0	LEFT WHEEL COVER [BLACK]	£18.27	Add to
075	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
076	325207129/0	CAN HOLDER COVER [BLACK]	£24.34	Add to
081	325110482/0	GRASSCATCHER COVER [DARK RED]	£143.37	Add to
082	382110254/0	REAR WHEEL COVER KIT [TCP]	£52.06	Add to
084	325394009/0	GRASSCATCHER HANDLE [BLACK]	£8.32	Add to
085	382110289/0	ANGLE COVERS KIT-TCX MOUNTFIELD	£35.68	Add to
086	112735403/0	FLANGED HEX-HEAD SCREW D=6 x 18	£2.06	Add to
090	325605003/0	PUSH BUTTON REVERSE GEAR	£42.51	Add to
091	325256250/0	THREADED RING NUT	£2.87	Add to
101	382869025/0	FRONT BUMPER BAR	£117.75	Add to
102	118737860/0	END CAP D=40	£2.06	Add to
103	112735120/0	FLANGED SELF-TAP SCREW 6.3 x 16	£2.06	Add to
104	325547159/1	PLATE	£5.05	Add to
105	112731580/0	SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ	£2.06	Add to
106	325774301/2	HOOD SUPPORT	£18.13	Add to
107	112735406/0	FLANGED HEX-HEAD SCREW 6 X 22	£2.06	Add to
