Wheels

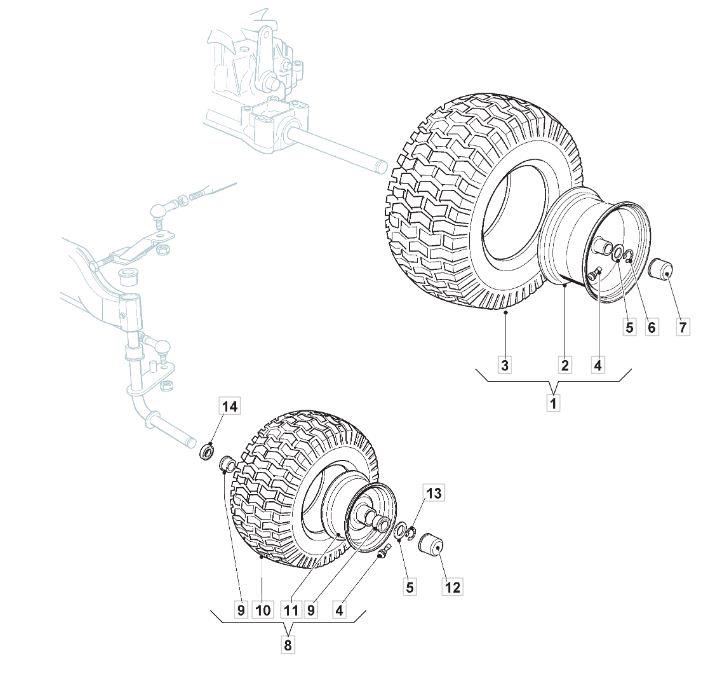

Wheels assembly details for Mountfield 2446H (2T1945283/M17) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382680045/0WHEEL ASSEMBLY 20" [WANDA] P332 TO SN 19AA1RON000962£238.75 Add to
002182000602/0REAR WHEEL RIM 7.5 x 8£131.92 Add to
003125590017/0TYRE 20 x 10.00-10 [WANDA] P332£131.92 Add to
004125950000/0PNEUMATIC VALVE£5.73 Add to
005125670005/2SPINDLE WASHER£3.89 Add to
006112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
007322110233/0HUB CAP [BLACK]£2.06 Add to
008382680043/0WHEEL ASSEMBLY 16" [WANDA] P332 TO SN 198A1RON003620£156.99 Add to
009125122200/2WHEEL BEARING D=20£12.05 Add to
010337241TYRE 16 x 6.50-8 KENDA SUPER TURF£47.69 Add to
011182000600/0FRONT WHEEL RIM 4" x 6"£83.13 Add to
012122110230/0HUB COVER£2.06 Add to
013112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
014125160094/0AXLE SPACER£6.55 Add to
