Body

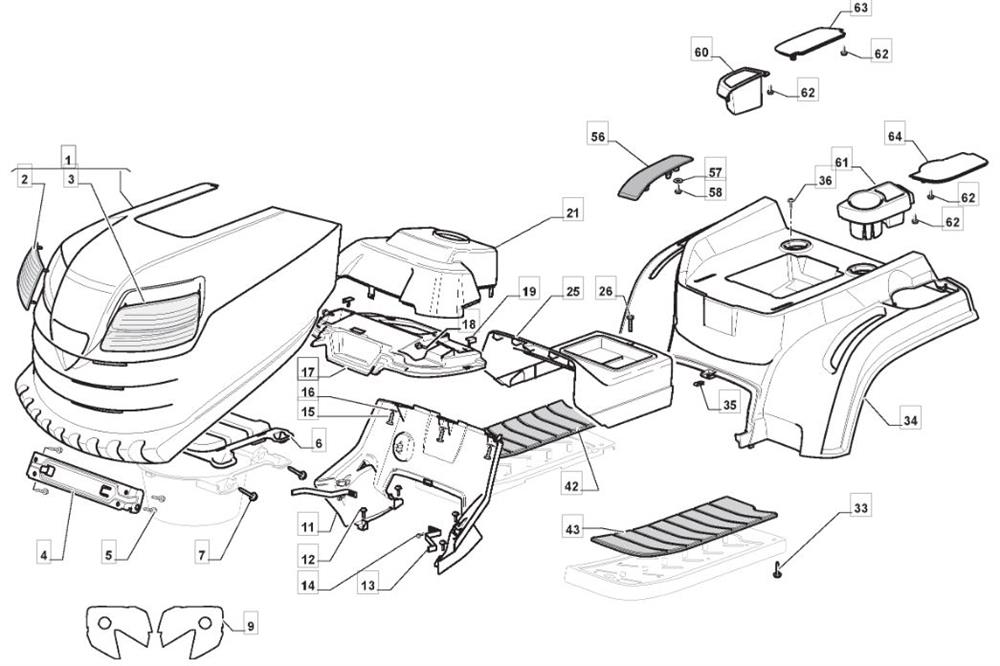

Body assembly details for Mountfield T38H (2T2610406/SF) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382076958/1ENGINE HOOD [GREY]£170.61 Add to
002325410887/0RIGHT HEADLIGHT£9.54 Add to
003325410888/0LEFT HEADLIGHT£9.54 Add to
004325785317/0HOOD SUPPORT£11.27 Add to
005112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
006325263302/1AIR INTAKE GRILL [BLACK]£17.31 Add to
007112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
009114363452/0LIGHT REFLECTOR DECAL£5.87 Add to
011325785298/0DASHBOARD SUPPORT [BLACK]£29.30 Add to
012125943010/0FLANGED SCREW£2.06 Add to
013325270325/0DASHBOARD SUPPORT GUIDE£5.19 Add to
014112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
015112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
016112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
017325120259/2DASHBOARD [BLACK]£35.71 Add to
018125943010/0FLANGED SCREW£2.06 Add to
019325260003/0DASHBOARD GROMMET£2.06 Add to
021325120203/0DASHBOARD COVER [BLACK]£18.20 Add to
025325110398/1CENTRAL COVER [GREY]£34.35 Add to
026125943010/0FLANGED SCREW£2.06 Add to
033112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
034325110442/0WHEELS COVER [GREY]£119.32 Add to
035112437506/0DOUBLE PLATE£2.87 Add to
036125943010/0FLANGED SCREW£2.06 Add to
042325110384/0RIGHT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
043325110385/0LEFT FOOTBOARD COVER [BLACK] (AS OPTIONAL)£15.59 Add to
056325207203/0COVER [BLACK]£4.82 Add to
057112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
058112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
060325207198/0R/H WHEEL COVER HOLDER [BLACK]£9.23 Add to
061325207199/0L/H WHEEL COVER HOLDER [BLACK]£11.27 Add to
062112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
063325207196/0R/H WHEEL COVER [BLACK]£3.96 Add to
064325207197/0L/H WHEEL COVER [BLACK]£4.11 Add to
