Brake and Gearbox Controls

Brake and Gearbox Controls assembly details for Mountfield T38H (2T2610406/SF) 2018 model

Parts list

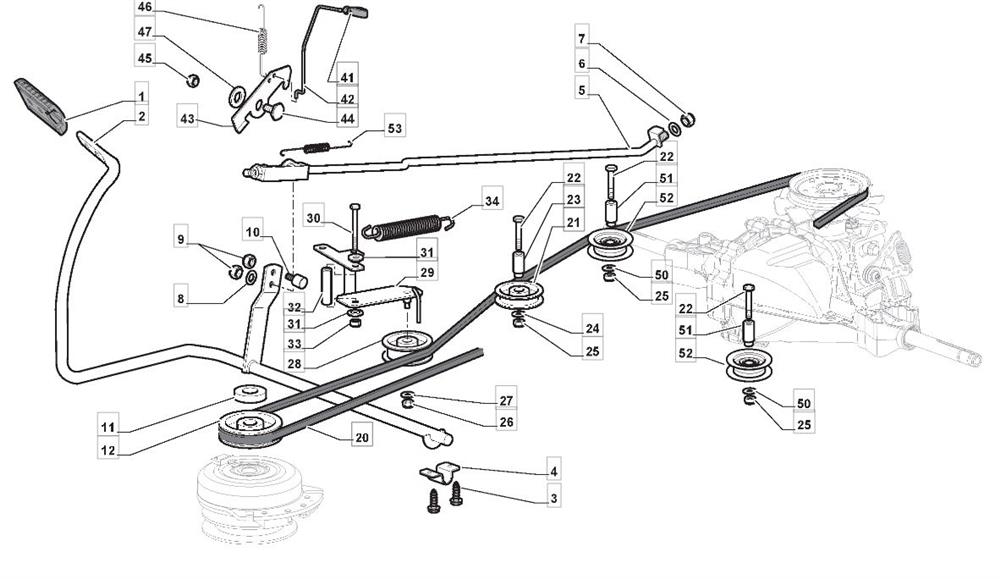

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325110409/0BRAKE PEDAL COVER£7.63 Add to
002382000641/0BRAKE PEDAL ASSEMBLY ( TO 31ST MARCH 2019)£53.06 Add to
003112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
004325547231/0LIFTING DECK AXLE PLATE£5.05 Add to
005382000636/0BRAKE ROD ASSEMBLY£31.10 Add to
006112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
007112156602/0LOW SELF-LOCKING NUT M10£1.79 Add to
008325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010125510116/0PARKING BRAKE PIN£4.10 Add to
011125160059/0PULLEY SPACER L=25.8£6.69 Add to
012125601577/0PULLEY£46.61 Add to
021325601599/0PULLEY (STEEL) (BEARING HOLE D 15)£19.62 Add to
022112691400/0HEX-HEAD SCREW M8 X 50£1.76 Add to
023125160083/0SPACER (FROM 1ST SEPT 2013 TO 31ST AUG 2019)£3.09 Add to
024112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
025112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
026112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
027112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
028125601554/0PULLEY£26.18 Add to
029382318245/0PULLEY LEVER£21.12 Add to
030112691600/0HEX-HEAD SCREW M8x70 UNI 5737 ACC.8.8£1.91 Add to
031125038021/0GUIDE PULLEY BUSH£1.58 Add to
032125160027/0SPACER£2.87 Add to
033112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
034125430262/0SPRING£6.14 Add to
041125394509/1BRAKE KNOB£3.79 Add to
042125033113/0PARKING BRAKE ROD£3.83 Add to
043325253011/1PARKING BRAKE HOOK£4.10 Add to
044122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
045112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
046125430213/0SPRING£2.06 Add to
047112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
050112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
051125160068/0PULLEY SPACER (TO 31ST AUG 2019)£5.21 Add to
052125601592/0PULLEY (TO 31ST DEC 2019)£33.86 Add to
053125430269/1HYDRO BRAKE PEDAL SPRING£2.87 Add to
