Grasscatcher

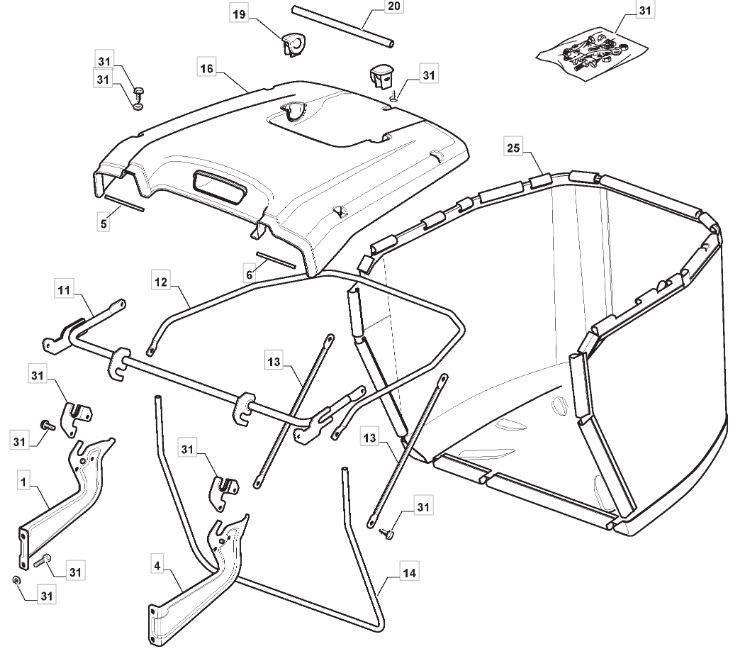

Grasscatcher assembly details for Mountfield T38H (2T2610406/SF) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325785377/0R/H GRASSCATCHER BRACKET£32.45 Add to
004325785383/0L/H GRASSCATCHER BRACKET£32.45 Add to
005125270802/0R/H REAR PLATE STRIP£4.52 Add to
006125270803/0L/H REAR PLATE STRIP£4.52 Add to
011382800147/0UPPER GRASSCATCHER HOOK FRAME£42.27 Add to
012382800145/0UPPER GRASSCATCHER FRAME£30.17 Add to
013325650161/0REINFORCEMENT ROD£12.27 Add to
014382800143/0GRASSCATCHER FRONT FRAME£31.02 Add to
016325110437/0GRASSCATCHER TOP [BLACK]£84.77 Add to
019325785417/0HANDLE TUBE SUPPORT£11.18 Add to
020325394538/0GRASSCATCHER HANDLE£5.06 Add to
025182105942/0GRASSCATCHER BAG 84cm [LE]£143.37 Add to
031382180122/1GRASSCATCHER ASSEMBLY KIT£16.71 Add to
