Guards and Conveyor

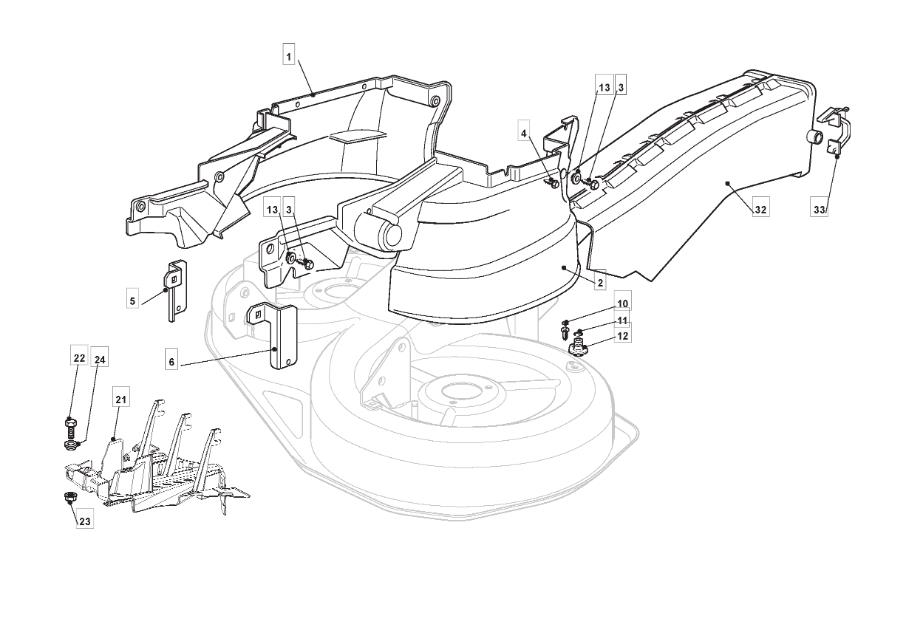

Guards and Conveyor assembly details for Mountfield T40H (2T1730436/BQ) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325060156/2RIGHT DECK BELT GUARD£38.67 Add to
002325060157/1LEFT DECK BELT GUARD£45.82 Add to
003125943014/0FLANGED SCREW CARTER MOA FIXING£9.03 Add to
004112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
005325774381/0RIGHT CLAMP BRACKET£4.66 Add to
006325774383/0LEFT CLAMP BRACKET£4.66 Add to
010112500030/0PLASTIC RIVET 2494 AA01£2.06 Add to
011119035000/0O RING 10.77 x 2.62£5.46 Add to
012125033060/0WASHING CUTTING DECK CONNECTION£2.06 Add to
013112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
021325060160/0FRONT BELT GUARD£27.27 Add to
022112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
023112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
024112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
032382108021/0DISCHARGE CHUTE£63.45 Add to
033325774373/0RELEASE CLAMP£3.41 Add to
