Seat & Steering Wheel

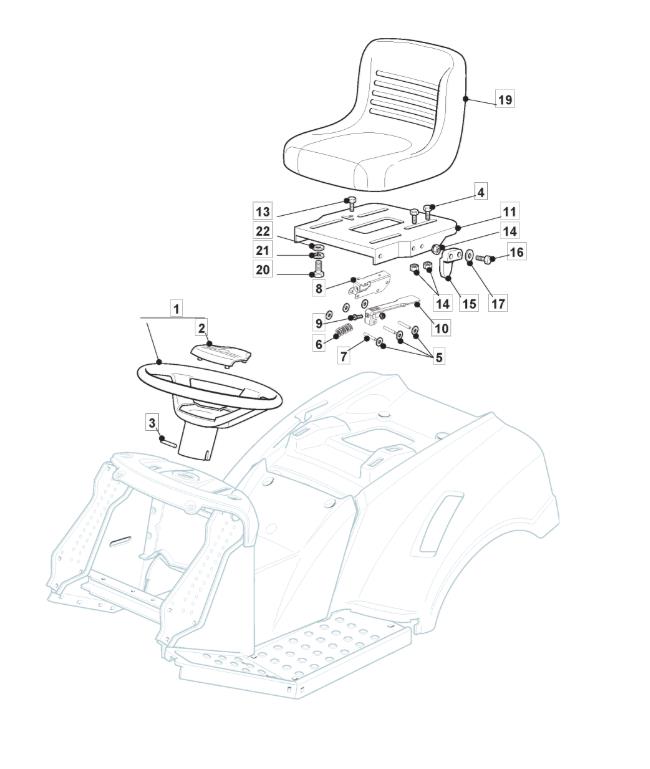

Seat & Steering Wheel assembly details for Mountfield T40H (2T1730436/BQ) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125961216/0STEERING WHEEL [BLACK]£57.52 Add to
002325580500/0CENTRAL STEERING WHEEL CAP£6.42 Add to
003112620250/0PIN 6 x 24£2.06 Add to
004112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
005112604896/0STARLOCK WASHER D=6£2.06 Add to
006125430285/0SPRING£7.23 Add to
007122517866/0PIN£2.06 Add to
