Electrical parts

Electrical parts assembly details for Mountfield 1328H (2T0210483/M18) 2019 model

Parts list

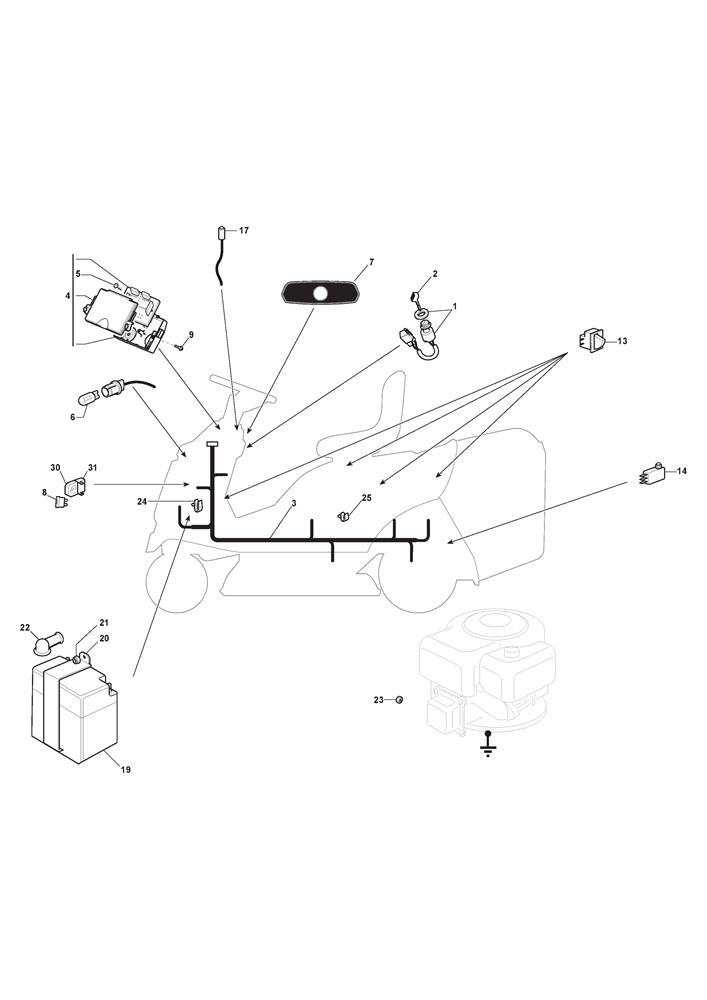

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118450075/1STARTING SWITCH£20.45 Add to
002118210023/0IGNITION KEY [PAIR]£6.29 Add to
003184040137/2WIRING LOOM [F72 FL]£161.04 Add to
004382722477/0PC BOARD F72 FL [ISO]No Returns on This Item£112.87 Add to
004382722477/0PC BOARD F72 FL [ISO]No Returns on This Item£112.87 Add to
004382722477/0PC BOARD F72 FL [ISO]No Returns on This Item£112.87 Add to
005112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
006118459100/0HEADLIGHT BULB£2.47 Add to
007125420022/0DASHBOARD DECAL [1 LED]£8.32 Add to
008133340035/0FUSE 15A£2.06 Add to
008133340040/0FUSE 10A£2.47 Add to
009112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
013119410622/1MICRO SWITCH N.O.£7.10 Add to
014119410605/1MICRO SWITCH£36.77 Add to
019118120007/0BATTERY 12V 18AH [No Returns on This item]£103.58 Add to
020327772099/1BATTERY FIXING CLAMP£5.05 Add to
021112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
022118564861/2RED RUBBER TERMINAL COVER£7.10 Add to
023112361005/0HEXAGON NUT 1/4" UNC£2.71 Add to
024133320506/0CABLE CLIP£1.79 Add to
025133320022/0FASTPOINT BAND ART. 0384.AA01 L=160£2.06 Add to
030133215000/0FUSE HOLDER COVER£3.83 Add to
031133500007/0FUSE HOLDER£7.64 Add to
