BELT PROTECTION

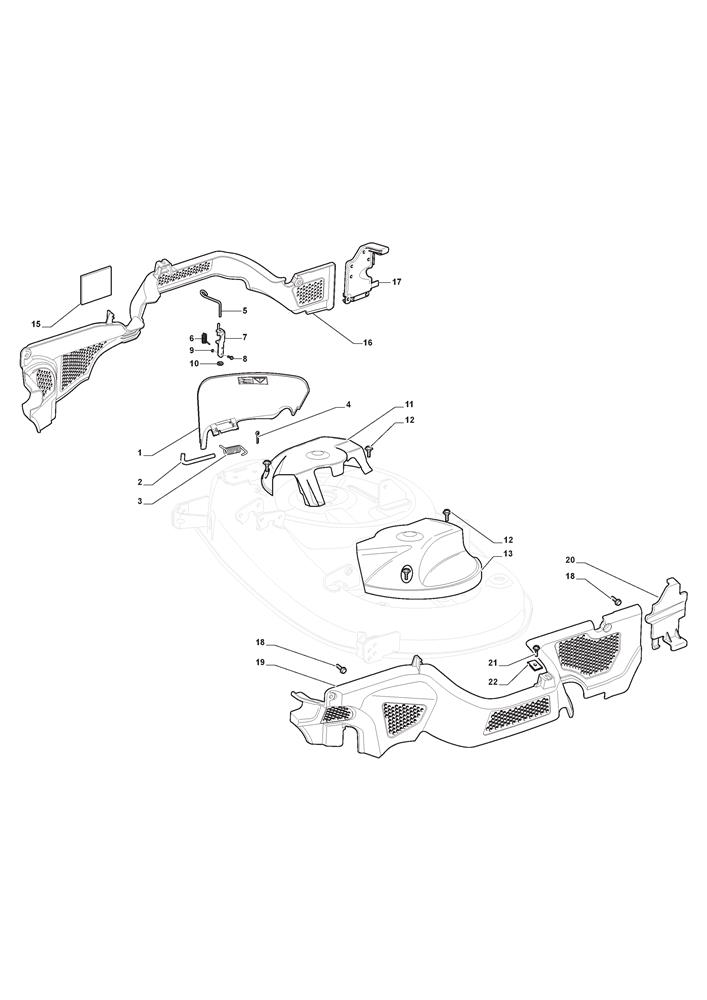

BELT PROTECTION assembly details for Mountfield 1538H-SD (2T0630483/M15) 2019 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	325600077/3	DEFLECTOR [BLACK]	£18.82	Add to
002	125510073/0	FULCRUM PIN	£8.04	Add to
003	125430242/1	SPRING	£3.64	Add to
004	112141418/0	SPLIT PIN 3 x 20	£1.76	Add to
005	125318355/0	FULCRUM PIN	£5.32	Add to
006	125430288/0	SPRING	£9.39	Add to
007	325774719/0	BP GRASS DEFLECTOR PIN BRACKET SDR 108	£6.09	Add to
008	112815200/0	SCREW TTDQ M6X16	£2.06	Add to
009	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
010	112604899/0	STARLOCK WASHER RPCO 308 D=8	£2.06	Add to
011	325600078/0	RIGHT BELT GUARD [BLACK]	£9.31	Add to
012	125943010/0	FLANGED SCREW	£2.06	Add to
013	325600079/0	LEFT BELT GUARD [BLACK]	£9.54	Add to
015	325600084/0	PROTECTION GUARD	£2.18	Add to
016	325060154/0	RIGHT BELT PROTECTION COVER	£34.35	Add to
017	325600082/0	RIGHT SEAT PROTECTION COVER	£4.10	Add to
018	125943011/0	SCREW	£9.82	Add to
019	325060155/0	LEFT BELT PROTECTION COVER	£34.35	Add to
020	325600083/0	LEFT SEAT PROTECTION COVER	£4.10	Add to
021	127943051/0	SCREW D=6.3 x 13	£2.18	Add to
022	112437506/0	DOUBLE PLATE	£2.87	Add to
