ENGINE - PISTON, CRANKSHAFT

ENGINE - PISTON, CRANKSHAFT assembly details for Mountfield 1636H (2T0430483/M11) 2019 model

Parts list

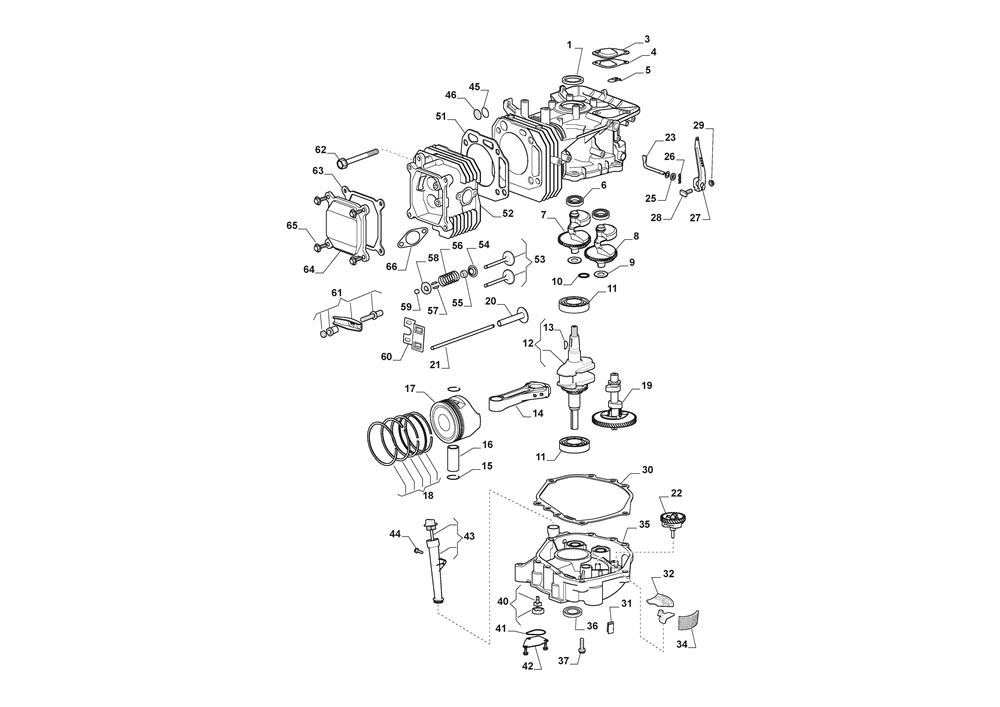

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
034118551256/1OIL STRAINER£4.52 Add to
035118551207/0CRANKCASE COVER£170.61 Add to
036118551418/0OIL SEAL£10.36 Add to
037112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
040118550224/1OIL PUMP£21.26 Add to
041118551507/0SEAL RING£2.87 Add to
042118550223/0OIL PUMP COVER£6.01 Add to
043118550444/1OIL DIPSTICK ASSEMBLY£24.95 Add to
044112674701/0SCREW TE M6 x 35£2.06 Add to
045118551230/0BREATHER VALVE£2.74 Add to
046118551228/0COVER£4.10 Add to
051118550535/0CYLINDER HEAD GASKET KIT£39.80 Add to
052118551231/0CYLINDER HEAD£170.61 Add to
055118551248/0VALVE STEM SEAL£8.60 Add to
056118550529/0VALVE SPRING£6.42 Add to
057118551247/0VALVE PLATE£2.06 Add to
058118551246/0VALVE SPRING RETAINER£4.68 Add to
059118551244/0VALVE CAP£3.41 Add to
060118551255/0PUSH ROD GUIDE PLATE£4.91 Add to
061118551510/0ROCKER ARM SET£7.92 Add to
063118551531/0ROCKER COVER GASKET£17.04 Add to
064118551534/0CYLINDER HEAD COVER£8.45 Add to
065118551535/0HEXAGONAL BOLT£1.87 Add to
066118551272/0MUFFLER GASKET£2.87 Add to
