OPTIONALS ON REQUEST

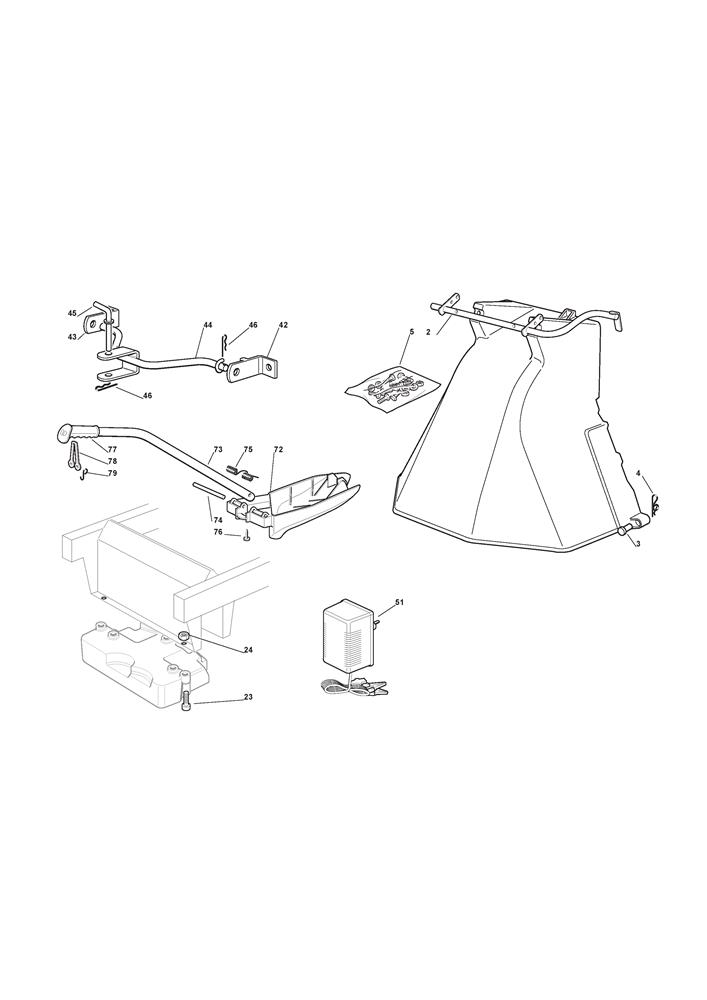

OPTIONALS ON REQUEST assembly details for Mountfield 1640H (2T1710483/M13) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002382869035/0SUPPORT TUBE£36.69 Add to
003125510022/1PIN£3.40 Add to
004124487998/0R CLIP D=2£2.06 Add to
005REPLA0000132REPLACING SCREWS ON OUTFIT 382180062/0N/A POA
023112760520/0HEXAGON SOCKET HEAD SCREW M8 x 45£2.06 Add to
024112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
042382735502/0BRACKET R/H£12.00 Add to
043325774213/0BRACKET L/H£5.05 Add to
044382033117/0TOW BAR ROD£53.42 Add to
045125510021/1HITCH PIN£11.78 Add to
046124487999/0R CLIP D=3£1.91 Add to
051182180190/1BATTERY CHARGER£61.20 Add to
072125140091/0MULCHING DEFLECTOR SHOE£32.99 Add to
073325394005/0HANDLE£18.53 Add to
074125510074/0PIN£2.18 Add to
075125430240/0SPRING£6.16 Add to
076112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
077325280000/1HAND GRIP KIT MULCHING RO£3.55 Add to
078125840011/1LOCKING RUBBER TIE£6.27 Add to
079125253004/0FIXING HOOK£2.06 Add to
