WHEELS

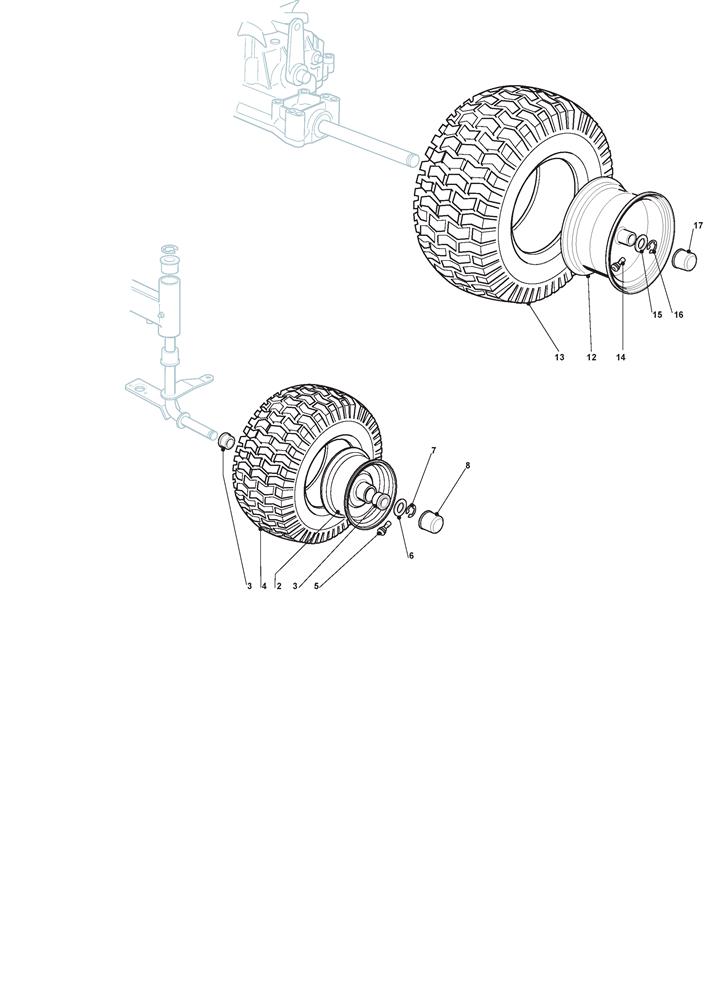

WHEELS assembly details for Mountfield 1640H (2T1710483/M13) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002182000598/0FRONT WHEEL RIM 4" X 6"£69.58 Add to
003125122200/2WHEEL BEARING D=20£12.05 Add to
004125590019/0TYRE 15 x 6.00-6 [WANDA] P512£66.59 Add to
005125950000/0PNEUMATIC VALVE£5.73 Add to
006125670005/2SPINDLE WASHER£3.89 Add to
007112001000/0CIRCLIP ID=15 TH=1.5£1.83 Add to
008122110230/0HUB COVER£2.06 Add to
012182000592/0REAR WHEEL RIM£103.58 Add to
013382680067/0WHEEL ASSEMBLY 18" [CARLISLE 4T]£102.06 Add to
014125950000/0PNEUMATIC VALVE£5.73 Add to
015125670005/2SPINDLE WASHER£3.89 Add to
016112001010/0CIRCLIP ID=0,580 TH=0.050£1.76 Add to
017122110230/0HUB COVER£2.06 Add to
