CONTROL EQUIPMENT

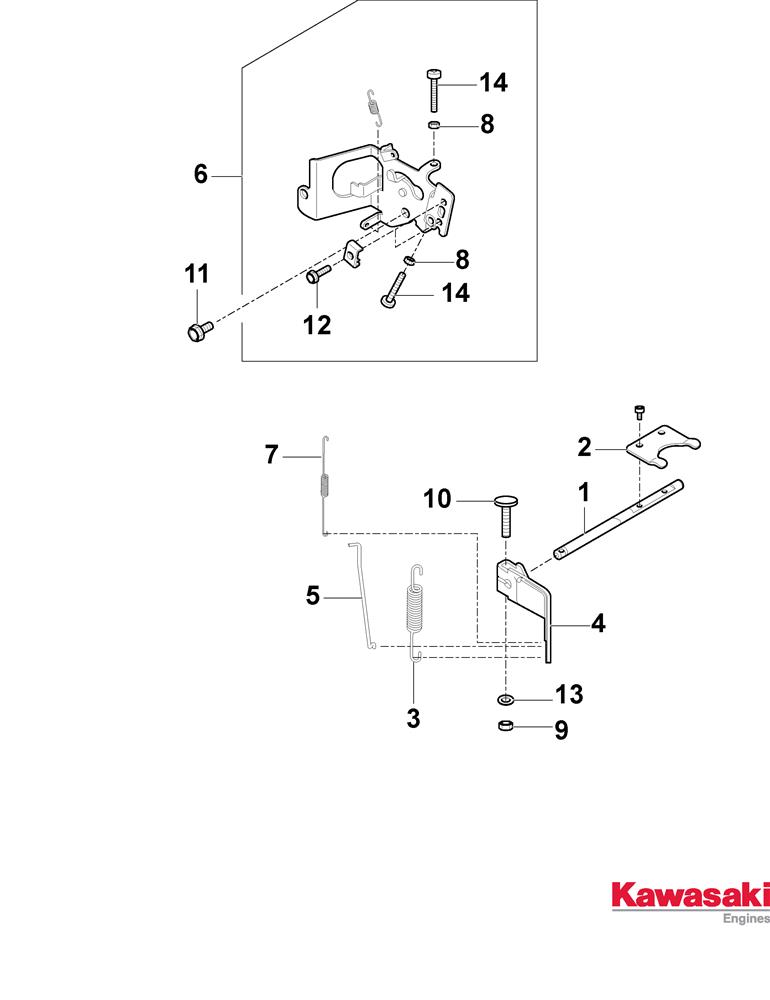

CONTROL EQUIPMENT assembly details for Mountfield 1643H-SD (2T1200683/M19) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
008112291000/0HEXAGON NUT M5£2.06 Add to
009112292100/0HEXAGON NUT M6£1.47 Add to
010112674700/0SCREW M6 X 35£2.06 Add to
011112735699/0SCREW M6 x 12£1.79 Add to
012112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
013112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
014112735657/0SCREW M5 X 30£3.64 Add to
