ENGINE - KAWASAKI

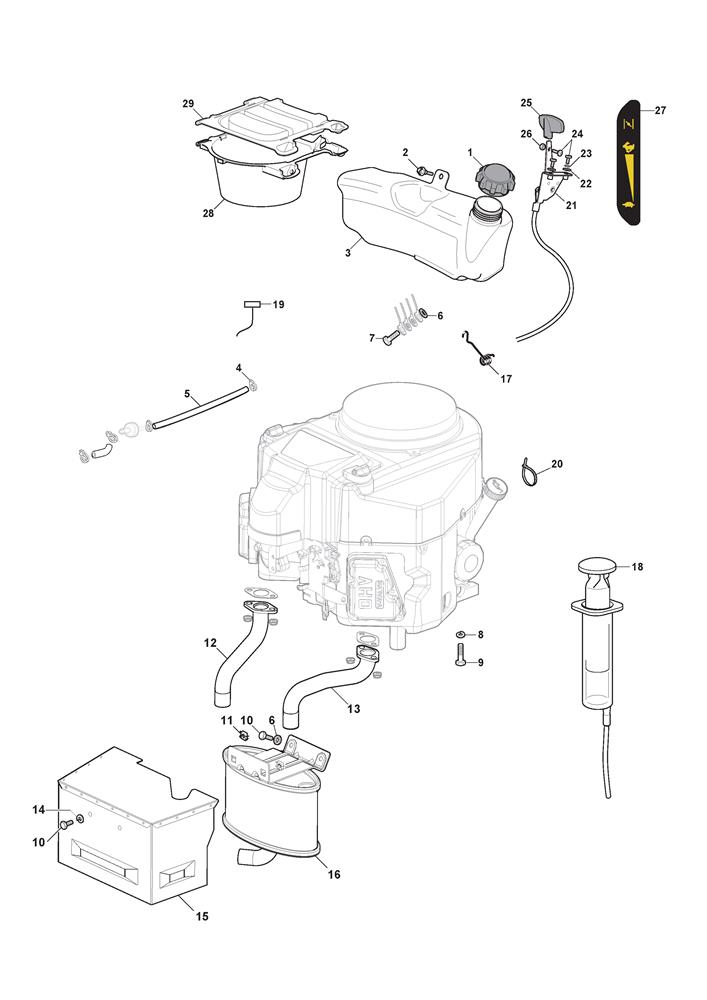

ENGINE - KAWASAKI assembly details for Mountfield 1643H-SD (2T1200683/M19) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001125795001/1FUEL TANK CAP£8.32 Add to
002125943010/0FLANGED SCREW£2.06 Add to
003325735126/1FUEL TANK [6 LT]£47.97 Add to
004118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
005325869057/0FUEL TUBE L=1000£20.72 Add to
006112540260/0INNER TOOTHED WASHER M8£2.06 Add to
007112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
008112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
010112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
011112360425/0SQUARE NUT M8£2.18 Add to
012118738256/0R/H EXHAUST PIPE£16.80 Add to
014112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
015382598067/3MUFFLER GUARD ASS.Y KAWASAKI SD/MPN/A POA
016182750003/0MUFFLER ASSEMBLY£265.02 Add to
017125430292/0SPRING£2.06 Add to
018118718000/0OIL EMPTYING SYRINGE£16.22 Add to
019125090003/0CHOKE CONTROL CABLE£20.45 Add to
020133320022/0FASTPOINT BAND ART. 0384.AA01 L=160£2.06 Add to
021182000201/2THROTTLE CABLE£26.69 Add to
022112521310/0WASHER M4 4.3 x 9 x 0.8£1.79 Add to
023112540020/0EXTERNAL TOOTHED WASHER M4£2.06 Add to
024112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
024112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
025325394531/0THROTTLE CONTROL KNOB£1.91 Add to
026112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
027114364617/0THROTTLE DECAL SD98£2.06 Add to
028325108045/1SHORT AIR CONVEYOR SD 98£11.46 Add to
029325263302/1AIR INTAKE GRILL [BLACK]£17.31 Add to
