BODY WORK

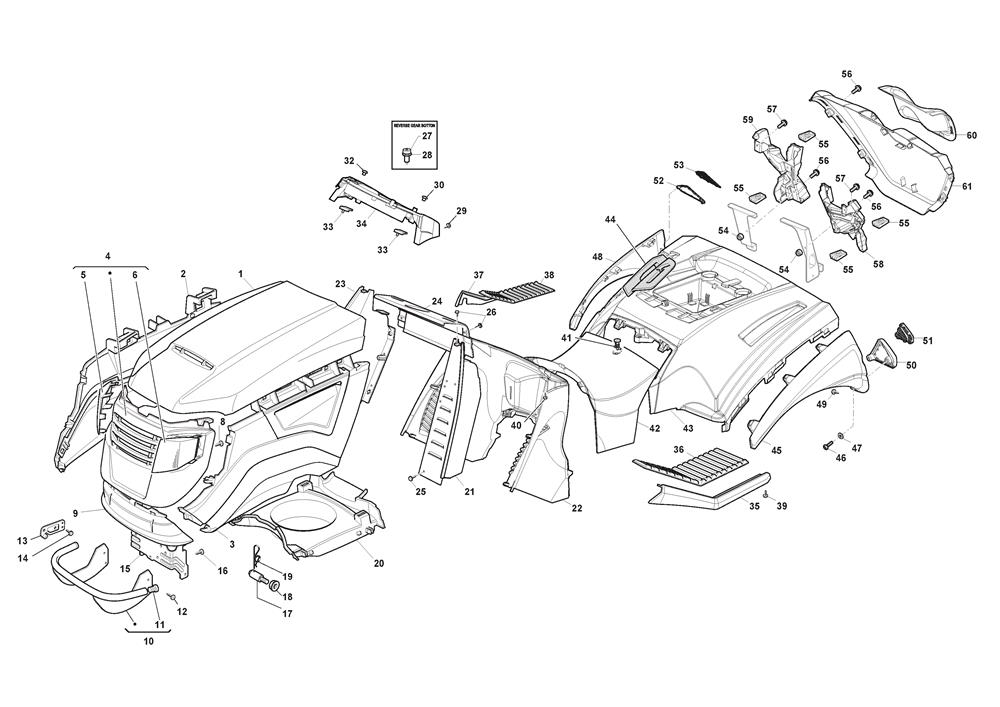

BODY WORK assembly details for Mountfield 2448H-SD Twin (2T1945283/M17) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325076977/1UPPER ENGINE HOOD [DARK RED]N/A POA
002382394653/1BONNET R/H [DARK RED]£84.77 Add to
003382394654/1BONNET L/H [DARK RED]£89.43 Add to
004382394613/0FRONT HOOD [BLACK]£84.77 Add to
005325410876/0RIGHT HEADLIGHTS GRILL£9.14 Add to
006325410877/0LEFT HEADLIGHTS GRILL£9.14 Add to
008112735403/0FLANGED HEX-HEAD SCREW D=6 x 18£2.06 Add to
009325076870/1LOWER FRONT HOOD [BLACK]£16.91 Add to
010382869025/0FRONT BUMPER BAR£117.75 Add to
011118737860/0END CAP D=40£2.06 Add to
012112735120/0FLANGED SELF-TAP SCREW 6.3 x 16£2.06 Add to
013325547159/1PLATE£5.05 Add to
014112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
015325774301/2HOOD SUPPORT£18.13 Add to
016112735406/0FLANGED HEX-HEAD SCREW 6 X 22£2.06 Add to
017125510169/1BONNET PIN (ROUND VERSION)£3.15 Add to
018112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
019124487998/0R CLIP D=2£2.06 Add to
020325108031/0INTAKE CONVEYOR£57.52 Add to
021382785021/9LEFT DASHBOARD SUPPORT£41.16 Add to
022325785449/0DASHBOARD SUPPORT [GREY]£76.59 Add to
023382785022/10RIGHT DASHBOARD SUPPORT£42.53 Add to
024382785137/1CENTRAL DASHBOARD SUPPORT£12.27 Add to
025112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
026112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
027325605003/0PUSH BUTTON REVERSE GEAR£42.51 Add to
028325256250/0THREADED RING NUT£2.87 Add to
029112728440/0SELF-TAPPING SCREW 4.8 X 13£1.79 Add to
030325120233/0CAP (OBSOLETE)£4.28 Add to
032125120200/0CAP (OBSOLETE)£2.54 Add to
033125260000/0ANTI-VIBRATION RUBBER GROMMET£3.41 Add to
034325120266/0DASHBOARD [GREY] TX£43.89 Add to
035325599005/0LEFT FOOTBOARD PROFILE [BLACK]£17.64 Add to
036325110279/0L/H FOOTBOARD COVER [BLACK]£26.18 Add to
037325599004/0RIGHT FOOTBOARD PROFILE [BLACK]£16.22 Add to
038325110278/1R/H FOOTBOARD COVER [BLACK]£26.18 Add to
039112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
040112735420/0FLANGED SCREW D=6 x 16£4.23 Add to
041125580020/2SPRING TENSIONED SCREW£7.23 Add to
042325110507/0CENTRAL COVER [GREY]£35.71 Add to
043325109798/0WHEELS COVER [DARK RED]£114.74 Add to
044325207129/1CAN HOLDER COVER [BLACK]£24.34 Add to
045325207267/0L/H REAR SIDE COVER [GREY]£21.26 Add to
046112728689/0SCREW KA50 x 12£1.79 Add to
047112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
048325207266/0R/H REAR SIDE COVER [GREY]£21.26 Add to
049112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
050325596502/0L/H REAR REFLECTOR SUPPORT£4.37 Add to
051325069101/0L/H REAR REFLECTOR [RED]£3.83 Add to
052325596501/0R/H REAR REFLECTOR SUPPORT£4.37 Add to
053325069100/0R/H REAR REFLECTOR [RED]£3.83 Add to
054112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
055112437507/0RAPID FIXING PLATE M6£2.06 Add to
0569893-0616-16SCREW M6 x 16£2.47 Add to
057112735420/0FLANGED SCREW D=6 x 16£4.23 Add to
058325785526/0L/H REAR COVER SUPPORT [BLACK]£13.77 Add to
060325207268/0REAR FUEL TANK COVER [BLACK]£15.41 Add to
061325110490/0REAR COVER [RED]£58.87 Add to
