FRAME

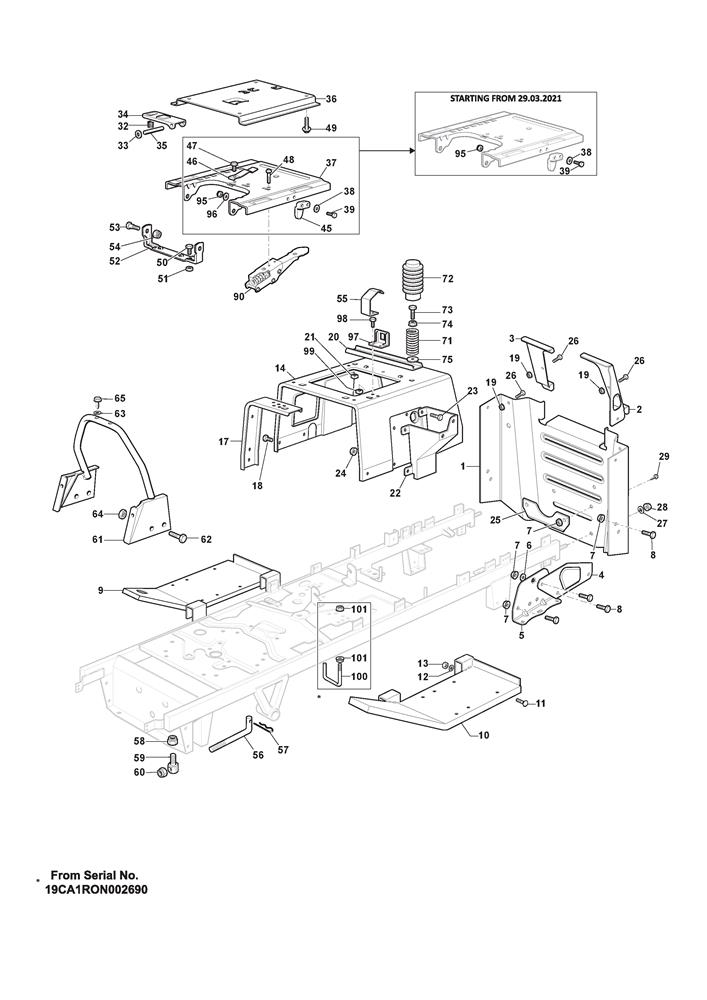

FRAME assembly details for Mountfield 2448H-SD Twin (2T1945283/M17) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001382547103/1REAR PLATE£103.85 Add to
002325774683/0L/H REINFORCING BRACKET£13.64 Add to
003325774681/0R/H REINFORCING BRACKET£13.64 Add to
004382774299/0REAR PLATE BRACKET£7.92 Add to
005325774675/0TRANSMISSION BRACKET£16.36 Add to
006112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
007112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
008112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
009382510041/2RIGHT FOOTBOARD SUPPORT£79.98 Add to
010382510043/2LEFT FOOTBOARD SUPPORT£77.93 Add to
011112815245/0SCREW M6 x 45£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014325785133/5SEAT SUPPORT£65.02 Add to
017325650065/1REINFORCING BRACKET£9.54 Add to
018112791200/1SCREW TE M6 x 16£1.79 Add to
019112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
020325650067/1REINFORCING PLATE£6.27 Add to
021112360420/0NUT£2.06 Add to
022325785137/1SUPPORT PLATE£30.26 Add to
023112791200/1SCREW TE M6 x 16£1.79 Add to
024112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
0251134-5512-01TOWING PLATE£20.72 Add to
026112791213/1SCREW M6 X 18£1.74 Add to
027112585100/0WASHER GROWER M10 UNI 1751£2.06 Add to
028112295200/0HEXAGON NUT M10£1.79 Add to
0299959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
032125430202/1SPRING£2.06 Add to
033112604897/0STARLOCK WASHER D=5£2.06 Add to
034325318109/1STOP LEVER£4.91 Add to
035125510000/0PIN£1.79 Add to
036325785147/2MOVING SEAT SUPPORT£38.26 Add to
037382785301/0FIXED SEAT SUPPORT£45.26 Add to
038112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
039112815050/0SCREW M5 x 25£2.06 Add to
045325060049/0SEAT SWITCH CAM£2.74 Add to
046125430203/1SPRING£3.69 Add to
047112731580/0SELF-TAP SCREW TE 4.8 x 9.5 C15 BZ£2.06 Add to
048112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
0499959-0820-16FLANGED SCREW M8 x 20 8.8 DIN 6921£2.06 Add to
050112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
051112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
052382774305/0SEAT SUPPORT BRACKET£11.76 Add to
053122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
054112155010/0SELF-LOCKING NUT M8 A-LOK ACC.6S£2.47 Add to
055325430255/0SEAT PROTECTION SPRING£4.37 Add to
056125510119/0TIE ROD (FROM 01/06/2020 ONLY ON STEEL FORECARRIAGE EQUALIZER ASSY)£13.77 Add to
057124487997/0SPRING CLIP D=1.8£2.06 Add to
058112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
059125510040/2PIN£7.11 Add to
060112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
061382650045/0CHASSIS SUPPORT FRAME£42.53 Add to
062112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
063112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
064112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
065112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
071125430205/1SEAT SHOCK ABSORBER SPRING£6.01 Add to
072325737002/0PROTECTION COVER£6.01 Add to
073125943001/1SCREW£2.06 Add to
074112154220/0SELF-LOCK FLANGED NUT M8£3.03 Add to
075112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
090382318316/1OPC SPRING LEVER ASSEMBLY£42.53 Add to
095112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
096112521320/0WASHER M5 5.3 x 10 x 1£2.06 Add to
097325755025/3SEAT SWITCH SUPPORT£6.14 Add to
098112789000/0SCREW TE M5 x 12£2.06 Add to
0999739-0531-22NUT M5£2.47 Add to
100125580019/1BELT GUIDE£4.37 Add to
101112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
