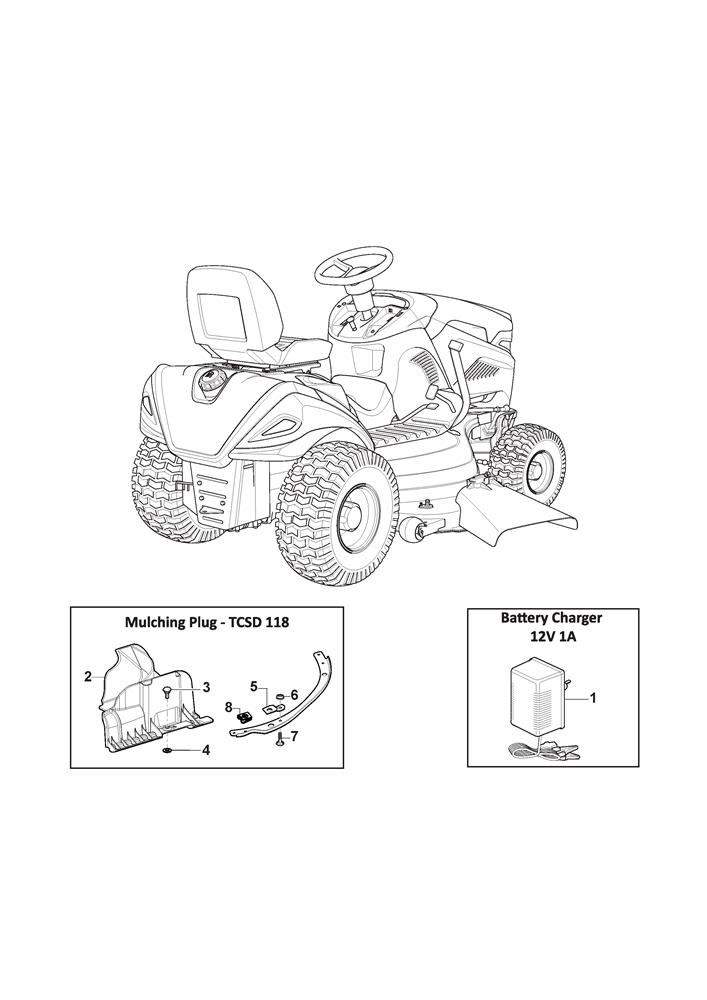

OPTIONALS ON REQUEST assembly details for Mountfield 2448H-SD Twin (2T1945283/M17) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001182180190/1BATTERY CHARGER£61.20 Add to
002325140114/1MULCHING PLUG MTR118 SD£20.72 Add to
003125580040/0MULCH PLUG PIN£2.94 Add to
004112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
005325785471/0SUPPORT PLATE£3.41 Add to
006112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
007112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
008118737221/0FIXING CLIP£7.04 Add to
