ENGINE - ST.

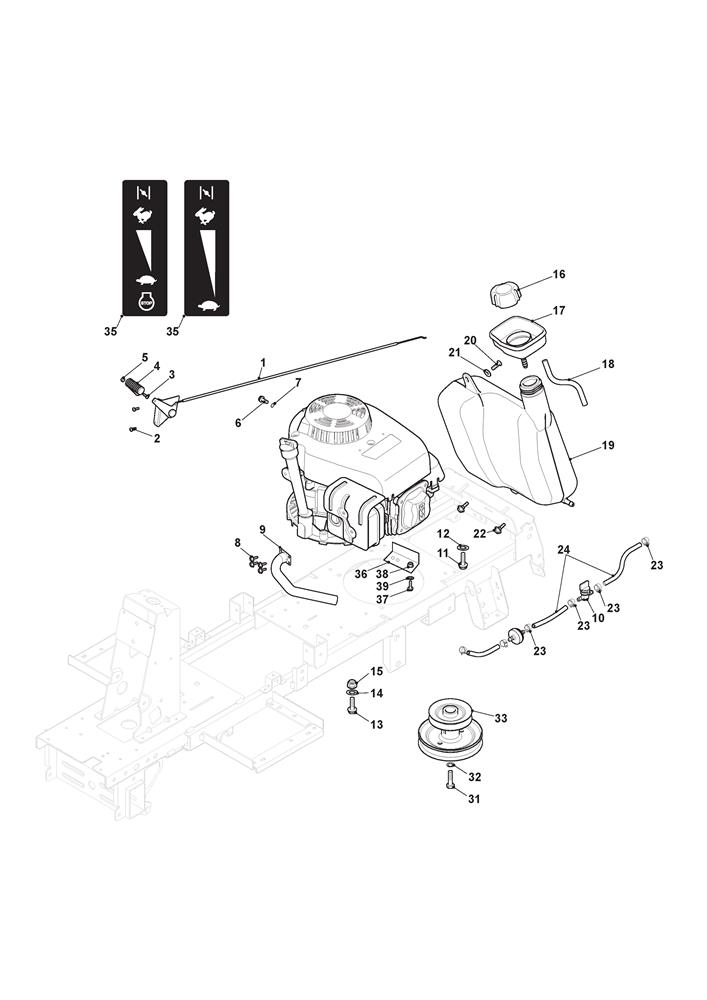

ENGINE - ST. assembly details for Mountfield 827H (2T0070483/M16) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001184000257/0THROTTLE CABLE£20.80 Add to
002112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
002125943012/0FLANGED SCREW M4 x 10 WZ£2.06 Add to
003112726388/0CROSS-HEAD SCREW M4X12£2.06 Add to
003112726389/0SCREW M4 X 12 (BLACK GALVANIZED)£2.06 Add to
004125394501/0THROTTLE HANDLE [BLACK]£2.06 Add to
005112290800/0HEXAGON NUT M4 UNI 5588 ACC.6S£2.06 Add to
006112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
007112540040/0EXTERNAL TOOTHED WASHER M6£1.79 Add to
008112735110/0FLANGED SELF-TAP SCREW 4.8 X 13£2.81 Add to
009118738261/1EXHAUST PIPE£38.44 Add to
010118566119/0FUEL TAP£15.89 Add to
011112735109/2"TELF-FORM SCREW TE FL 3/8X1"" 10.9 GEOM£2.32 Add to
012112540070/0EXTERNAL TOOTHED WASHER M10£2.06 Add to
013112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
013112791213/1SCREW M6 X 18£1.74 Add to
014112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
015112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
016BS-692046FUEL CAP OHV£10.71 Add to
017327600180/0FUEL TANK PROTECTION£4.37 Add to
018327869054/1FUEL DISCHARGE PIPE£23.04 Add to
019327733008/0FUEL TANK (4LT)£56.15 Add to
020112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
021112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
022125943010/0FLANGED SCREW£2.06 Add to
023118375051/1CABLE CLAMP B&S [GREEN]£1.91 Add to
024325869035/1CONNECTING TUBE£9.82 Add to
031112736850/0HEX-HEAD SCREW 3/8" x 2½"£2.32 Add to
032112543000/0SAFETY WASHER D=7/16£2.06 Add to
033384601500/1ENGINE PULLEY ASS.Y 13/15£61.60 Add to
035114366874/0THROTTLE DECAL NR66 B&S£2.87 Add to
036327772239/0ENGINE PLATE REINFORCEMENT BRACKET£9.82 Add to
037112791200/1SCREW TE M6 x 16£1.79 Add to
037112791213/1SCREW M6 X 18£1.74 Add to
038112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
0399694-0001-00SPACER WASHER£2.06 Add to
