PEERLESS TRANSMISSION

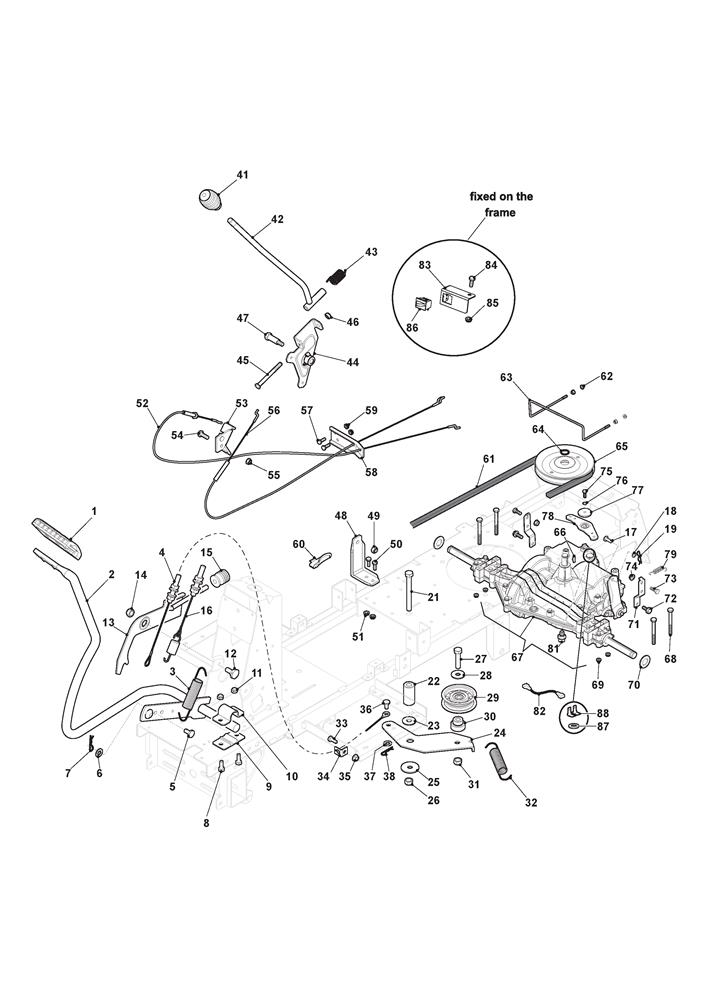

PEERLESS TRANSMISSION assembly details for Mountfield 827M (2T0050483/M16) 2019 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001325110391/0BRAKE PEDAL COVER SD 98£7.10 Add to
002384503013/0WZ BRAKE PEDAL ASS.Y NR66£53.42 Add to
003127430594/0TRACTION BELT SPRING NR66£6.01 Add to
004384004607/0BELT TENSION CABLE£23.15 Add to
005127510120/0CABLE FIXING PIN NR66 WZ£4.78 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007124487997/0SPRING CLIP D=1.8£2.06 Add to
008112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
009325785350/0AXLE FEED PEDA SUPPORT SD98 HYDRO£2.06 Add to
010325547231/1LIFTING DECK AXLE PLATE£4.78 Add to
011112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
012122524970/3SEAT FULCRUM PIN FROM S/N 88153£2.06 Add to
013384002097/0BRAKE CONTROL ROD£15.00 Add to
014112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
015127395050/1BLACK BRAKE KNOB RIDER/TCJ£3.40 Add to
016384004603/0ENGINE BRAKE CABLE£26.18 Add to
017127510120/0CABLE FIXING PIN NR66 WZ£4.78 Add to
018325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
019124487997/0SPRING CLIP D=1.8£2.06 Add to
021112691900/0HEX-HEAD SCREW£1.91 Add to
022127160065/0TRACTION PULLEY SPACER WZ NR66£6.95 Add to
023122041980/0SPACER ROLLER BUSH£2.06 Add to
024384307003/0WZ TRACTION PULLEY ME NR66£14.73 Add to
025112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
026112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
027112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
028112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
029127604015/0TRACTION PULLEY NR66£14.32 Add to
030127160064/0TRACTION PULLEY SPACER NR66£5.46 Add to
031112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
032127430594/0TRACTION BELT SPRING NR66£6.01 Add to
033112791200/1SCREW TE M6 x 16£1.79 Add to
034322806619/0WZ SPEED CABLE FIX.SUPPORT TURBO 4S£5.05 Add to
035112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
036127510120/0CABLE FIXING PIN NR66 WZ£4.78 Add to
037112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
038124487997/0SPRING CLIP D=1.8£2.06 Add to
041125394510/0CONTROL KNOB [BLACK]£4.35 Add to
042384317097/0DRIVE CONTROL LEVER£28.56 Add to
043125430226/0DRIVE CONTROL LEVER SPRING WZ TCJ£2.18 Add to
044384773579/0LEVER BRACKET£16.54 Add to
045112692050/0HEX-HEAD SCREW£1.91 Add to
046112155000/0LOW SELF-LOCKING NUT M8£2.06 Add to
047127510122/1PIN BOLT£6.27 Add to
048327772197/0WZ NR66 GEAR COM.LEVER FULCRUM STIRRUP£6.42 Add to
049112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
050112791200/1SCREW TE M6 x 16£1.79 Add to
051112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
052384004602/0GEAR SHIFT CABLE£19.71 Add to
053327772195/0WZ FRONT ME COM.CABLE GUIDE STIRRUP£5.87 Add to
054112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
055112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
056384004609/0GEAR SHIFT CABLE ASS.Y£20.45 Add to
057112791200/1SCREW TE M6 x 16£1.79 Add to
058327787093/0WZ NR66 ME TRASM. CABLES SUPPORT£6.27 Add to
059112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
060327110509/0CENTRAL CLOSING COVER NR66£4.52 Add to
061135061430/0TRANSMISSION BELT A35¼£40.24 Add to
062112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
063127294011/0BELT GUIDE£14.52 Add to
064112608950/0CIRCLIP D=0,584TO D=0,569£2.06 Add to
065182601509/0MOBILE PULLEY£77.95 Add to
066112139430/0KEY 3/16" x 3/4"£2.06 Add to
067118400981/1TRANSAXLE [PEERLESS MST-204-581B]£404.46 Add to
068112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
069112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
070125670005/2SPINDLE WASHER£3.89 Add to
071327772189/0WZ NR66 SIDE REAR ME TRANS.SUPP.STIRRUP£4.52 Add to
072112735150/0SELF-FORMING SCREW M8x16 UNI 8111TT C15£2.06 Add to
073112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
074112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
075112735520/0"HEX-HEAD SCREW 1/4"" x 5/8"""£2.06 Add to
076112540040/0EXTERNAL TOOTHED WASHER M6£1.79 Add to
077322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
078327543055/0WZ PEERLES ME TRASM. COMMAND PLATE£6.14 Add to
079127430597/0MECH. TRANSM. SPRING£4.62 Add to
081119410608/1NEUTRAL SWITCH [MECHANICAL]£34.18 Add to
082127065069/0TRANSMISSION EXTENSION CABLE£7.63 Add to
083327787109/0SUPPORT BRACKET£7.74 Add to
084112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
085112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
086119410623/0MICRO SWITCH N.C.£7.92 Add to
087112540221/0INNER WASHER M4£3.64 Add to
088133800001/0MALE FASTON TERMINAL 250 GMG40164.51.72.£1.79 Add to
