K574B CENTER CASE-FILTER

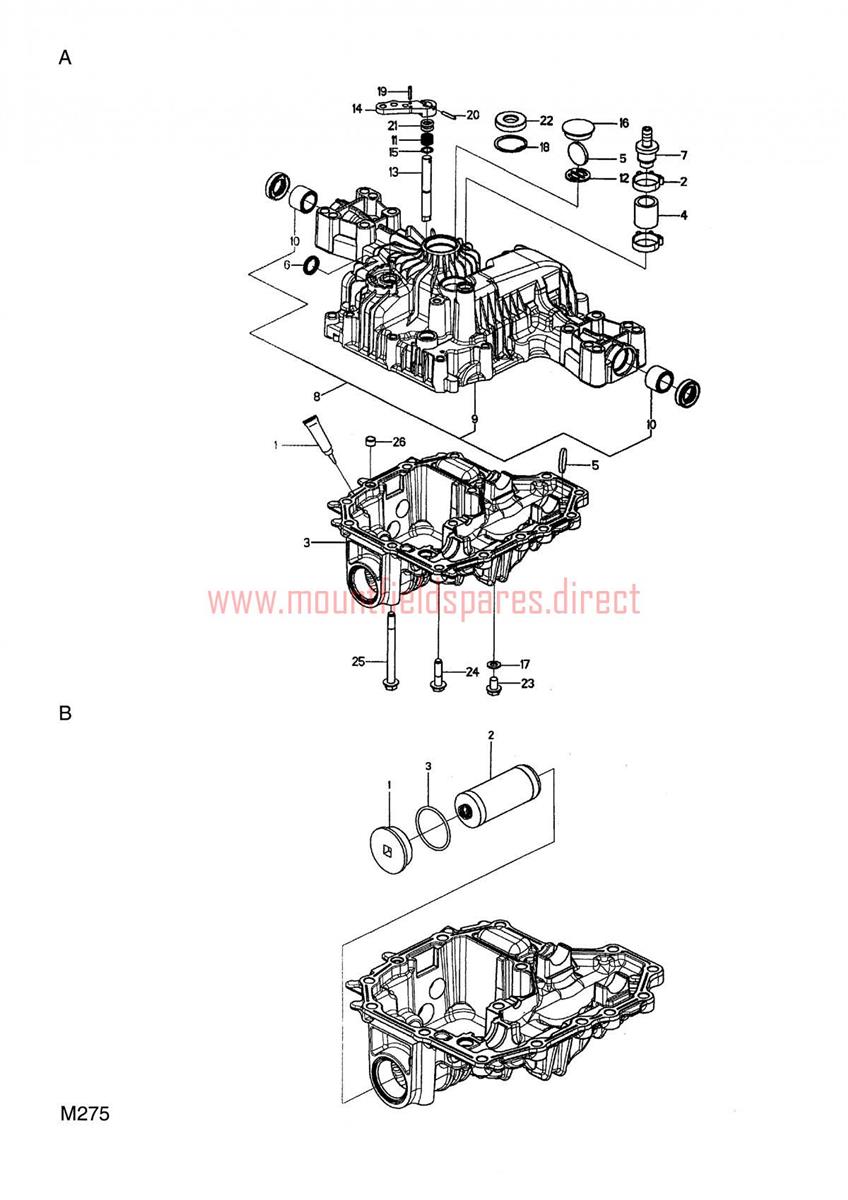

K574B CENTER CASE-FILTER assembly details for Mountfield 2100 and 4100 Series 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
A001137-0124-01TRANSAXLE K574G£1,867.16 Add to
A011139-0223-01Sealant (OBSOLETE)N/A
A021139-1336-01COBRA CLIP£5.19 Add to
A031139-1457-01LOWER HOUSING£582.84 Add to
A041139-1301-01TUBE£9.41 Add to
A051139-1150-01MAGNET£8.23 Add to
A061139-1303-01SEAL RING£4.52 Add to
A071139-1306-01ADAPTOR£4.78 Add to
A081139-1470-01UPPER HOUSING£370.37 Add to
A101139-1414-01BUSH (19.05)£4.35 Add to
A111139-1347-01SPRING£1.91 Add to
A131139-1251-01BY-PASS SHAFT£34.80 Add to
A151139-1161-01RING£1.58 Add to
A161139-1735-01SEALING CAP£8.32 Add to
A171139-1103-01SEAL WASHER£6.31 Add to
A181139-1104-01CIRCLIP£2.06 Add to
A191139-1279-01PIN£1.58 Add to
A201139-1280-01PIN (KTM10M) (OBSOLETE)N/A
A211139-1117-01O RING£1.50 Add to
A221139-1119-01SEAL 15.35.7£5.37 Add to
A231139-1123-01BOLT 8*12£3.64 Add to
A241139-0244-01TAPPING SCREW£3.17 Add to
A251139-1455-01TAPPING SCREW£6.27 Add to
A261139-1166-01PIN£4.94 Add to
Al21139-1341-01MAGNET HOLDER£4.37 Add to
Al41139-1189-01BY-PASS LEVER£9.19 Add to
B011139-1230-01CAP£7.23 Add to
B021139-1186-01FILTER£77.95 Add to
B031139-1290-01O RING£1.79 Add to
