K574B DIFF.GEAR-AXLE SHAFTS

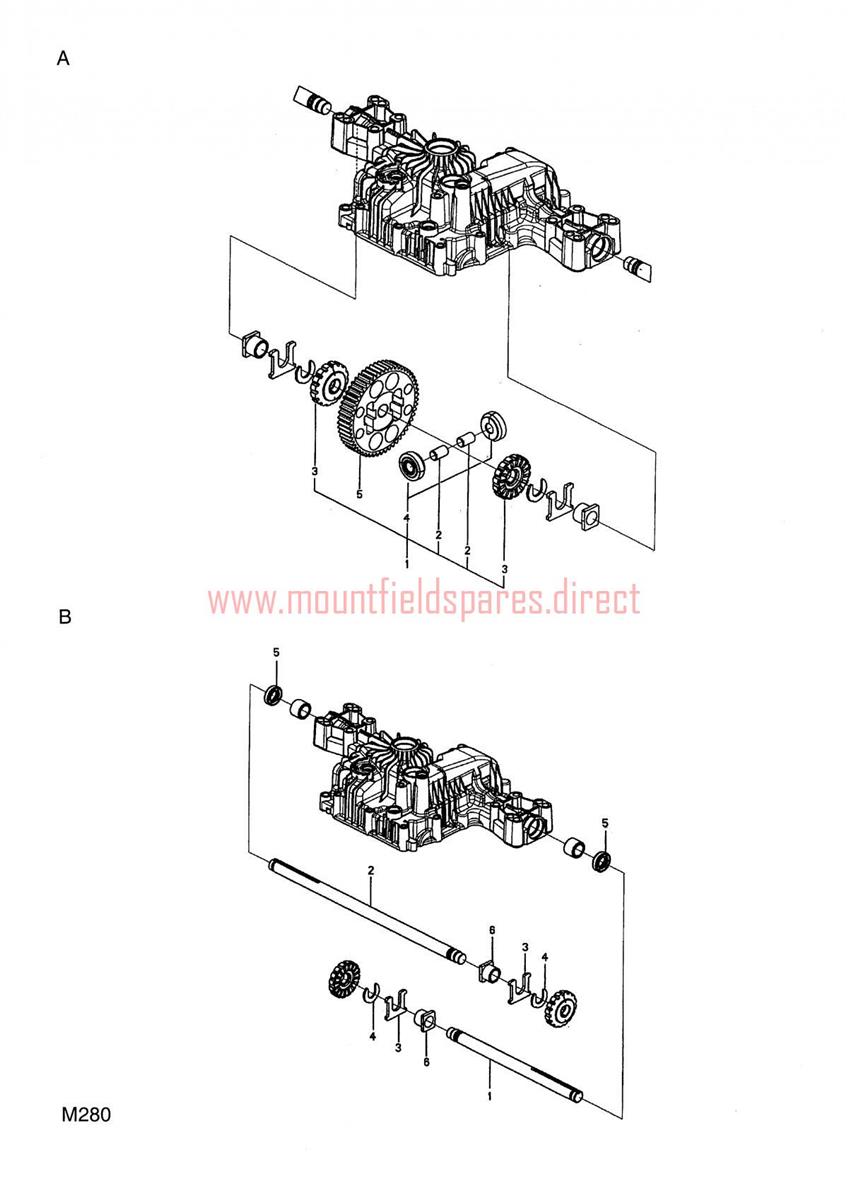

K574B DIFF.GEAR-AXLE SHAFTS assembly details for Mountfield 2100 and 4100 Series 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
A011139-1404-01DIFFERENTIAL GEAR KIT£61.56 Add to
A051139-1258-01FINAL GEAR£92.95 Add to
B011139-1344-01AXLE SHAFT LH L=285mm£68.42 Add to
B021139-1345-01AXLE SHAFT RH L=424mm£98.40 Add to
B031139-1078-01THRUST WASHER£10.36 Add to
B041139-1163-01RING£1.79 Add to
B051139-1080-01SEAL 19*32*8£11.32 Add to
B061139-1164-01BUSH£3.15 Add to
