K574B FAN-RANGE SHIFT

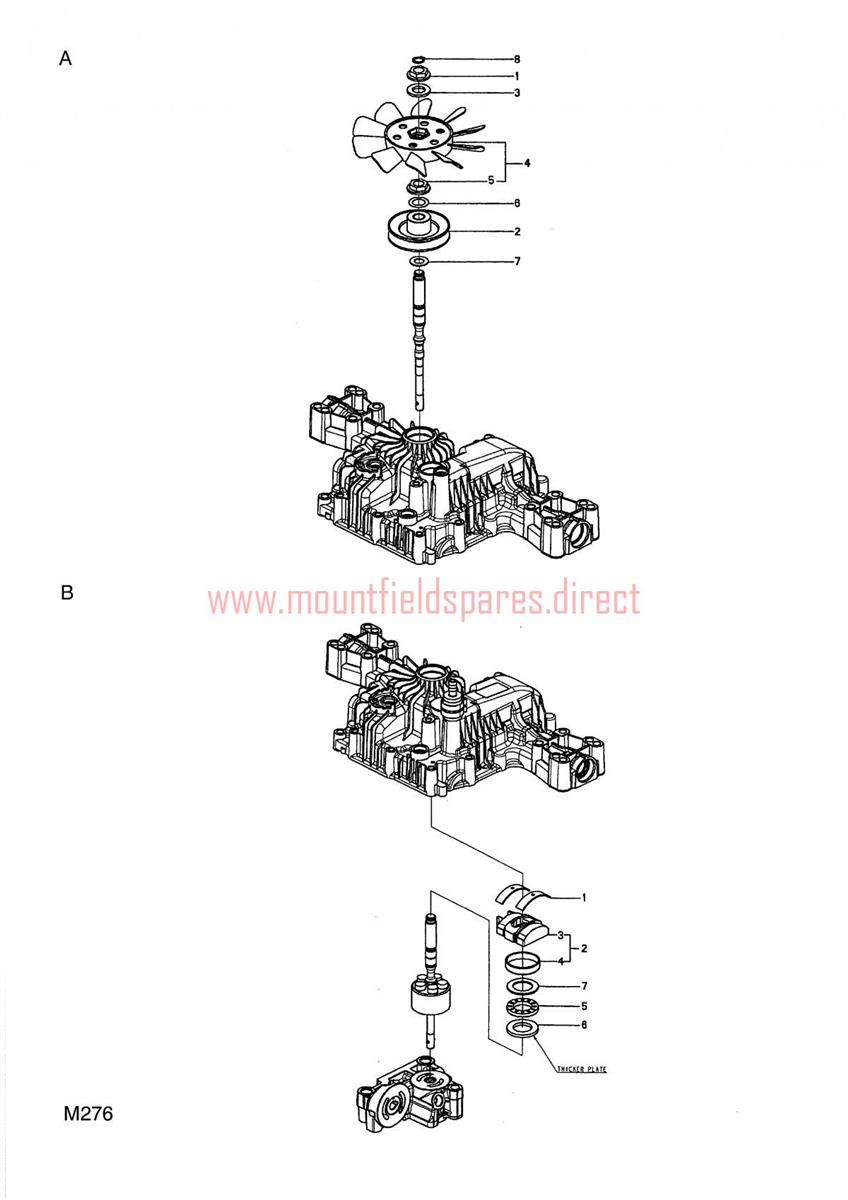

K574B FAN-RANGE SHIFT assembly details for Mountfield 2100 and 4100 Series 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
A011139-1248-01SPLINE COLLAR£3.96 Add to
A021139-1469-01PULLEY£94.00 Add to
A031139-1276-01WASHER£5.32 Add to
A041134-4190-01FAN£22.35 Add to
A061139-1266-01LOCK WASHER£1.79 Add to
A071139-1750-01E-RING£2.06 Add to
A081139-1149-01CIRCLIP£1.58 Add to
B011139-1066-01METAL THRUST (OBSOLETE)N/A
B021139-1067-01SWASH PLATE ASSY£38.19 Add to
B051139-1068-01BEARING£47.80 Add to
B061139-1069-01THRUST PLATE 2006£63.19 Add to
B071139-1070-01THRUST PLATE 2006£37.89 Add to
