K574B K5748 CONTROL SHAFT-BRAKE

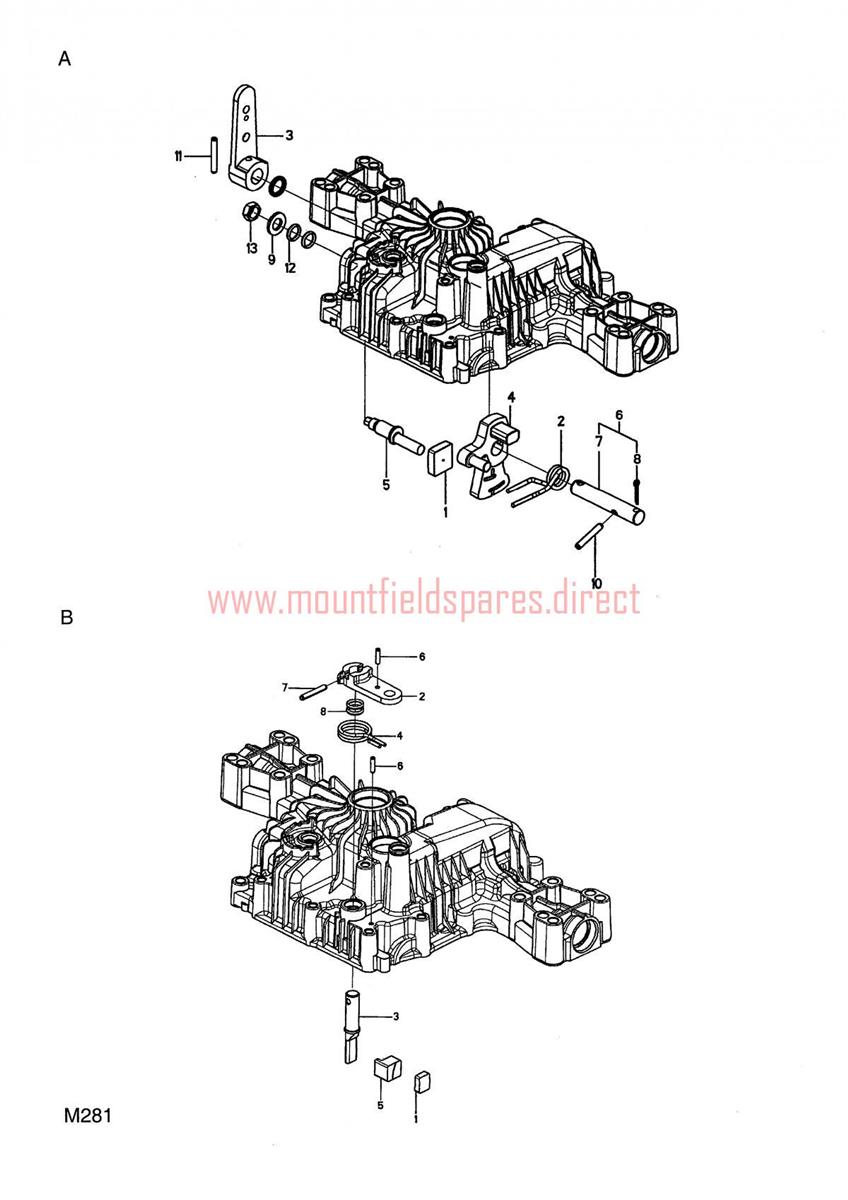

K574B K5748 CONTROL SHAFT-BRAKE assembly details for Mountfield 2100 and 4100 Series 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
806	1139-1281-01	PIN (OBSOLETE)	N/A
A01	1139-1408-01	Jerky plate (OBSOLETE)	N/A
A02	1139-1407-01	TORSION SPRING	£21.17	Add to
A03	1139-1325-01	CONTROL LEVER	£22.91	Add to
A04	1139-1409-01	CONTROL ARM	£45.26	Add to
A05	1139-1410-01	FULCRUM	£30.56	Add to
A06	1139-1412-01	CONTROL SHAFT 2006	£24.65	Add to
A07	1139-1354-01	CONTROL SHAFT (OBSOLETE)	N/A
A08	1139-1329-01	PIN	£2.06	Add to
A09	1139-1102-01	WASHER	£5.75	Add to
A10	1139-1329-01	PIN	£2.06	Add to
A11	1139-1285-01	PIN	£1.58	Add to
A13	1139-1127-01	NUT	£3.40	Add to
Al2	1139-1115-01	O RING	£1.79	Add to
B01	1139-1260-01	BRAKE SHOE	£2.18	Add to
B02	1139-1261-01	BRAKE ARM	£10.03	Add to
B03	1139-1320-01	BRAKE SHAFT	£47.74	Add to
B04	1139-1411-01	RETURN SPRING	£9.22	Add to
B05	1139-1264-01	BRAKE ACTUATOR	£5.60	Add to
B07	1139-1282-01	PIN	£5.03	Add to
B08	1139-1114-01	O RING	£4.80	Add to
