K574B PUMP SHAFT-CENT.CASE

K574B PUMP SHAFT-CENT.CASE assembly details for Mountfield 2100 and 4100 Series 2006 model

Parts list

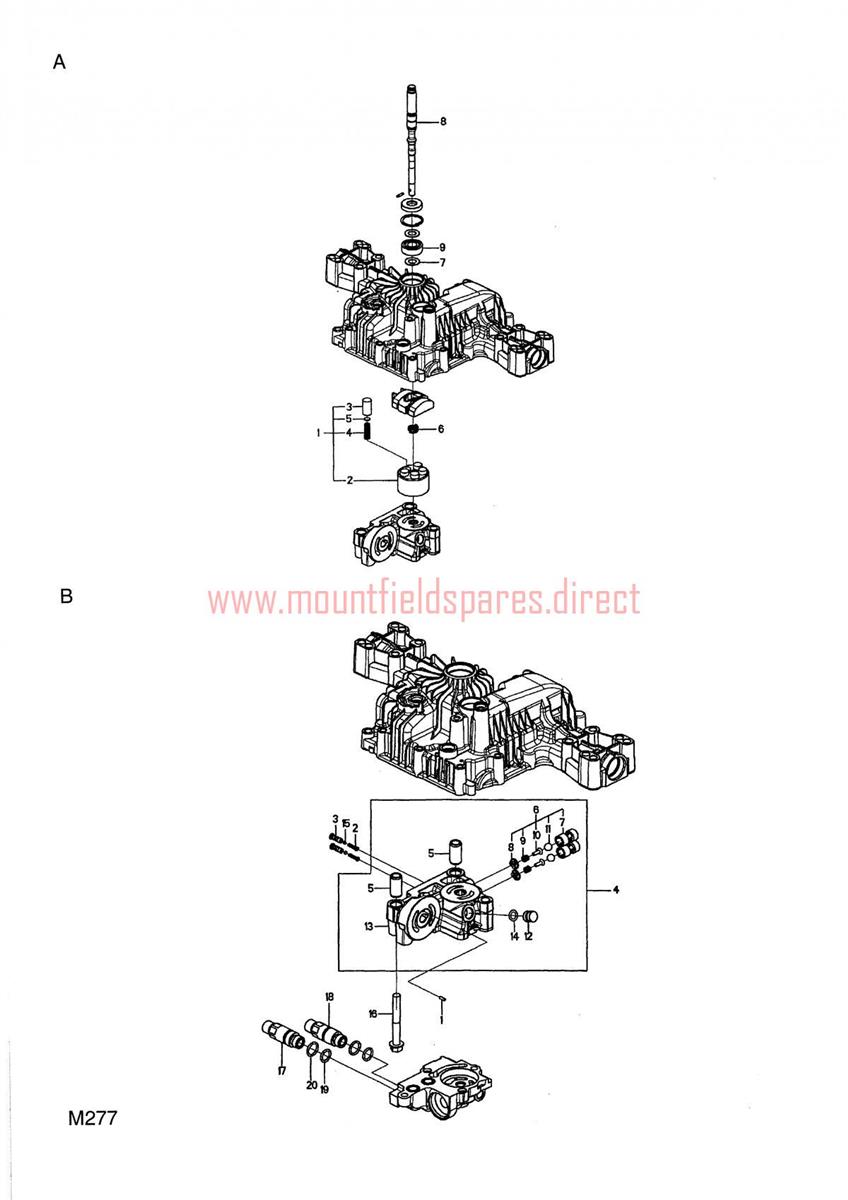

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
A011139-1601-01CYLINDER BLOCK KIT (PUMP)£139.79 Add to
A061139-1245-01PUMP SPRING£4.80 Add to
A071139-1750-01E-RING£2.06 Add to
A081139-1466-01PUMP SHAFT£65.50 Add to
A091139-1110-01BEARING£10.77 Add to
B011139-1158-01PIN£1.58 Add to
B021139-1243-01SPRING£1.91 Add to
B031139-1468-01IDS VALVE£11.87 Add to
B041139-1465-01CENTRE CASE£267.73 Add to
B141139-1117-01O RING£1.50 Add to
B151139-1307-01FILTER£6.14 Add to
B161139-1718-01BOLT (OBSOLETE)N/A
B171139-1459-01PIPING£45.28 Add to
B181139-1460-01PIPING£45.28 Add to
B191139-1481-01SEAL KIT£157.09 Add to
B201139-0239-01O RING£2.32 Add to
